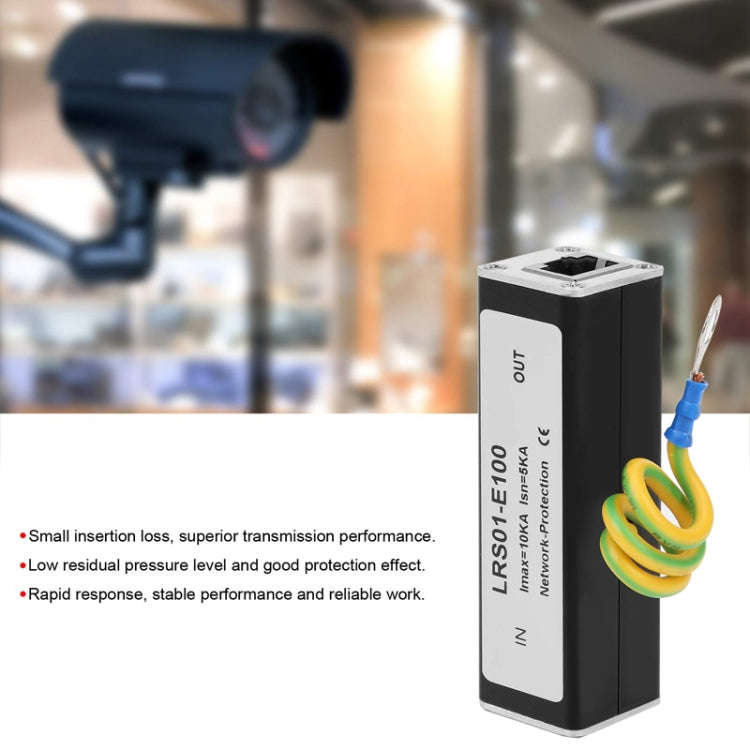

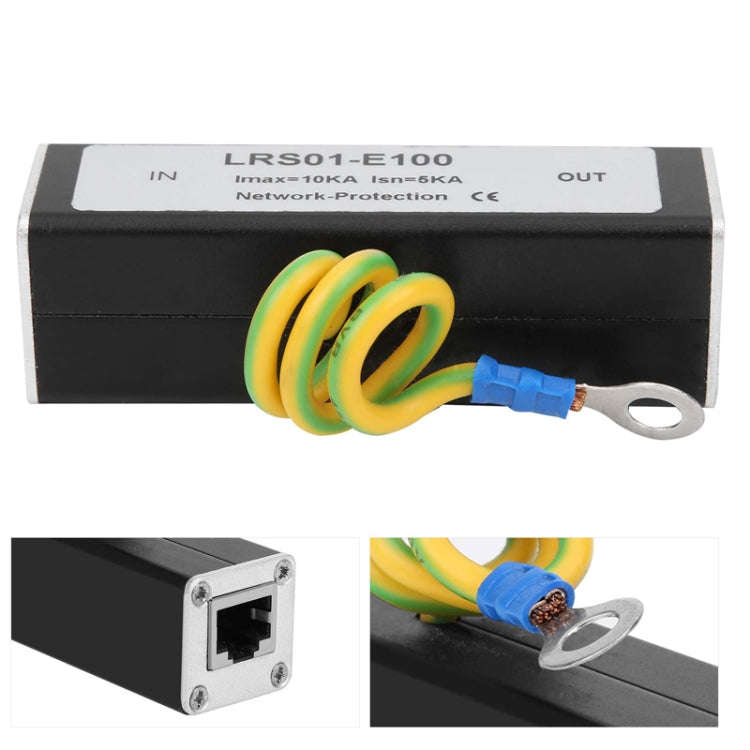

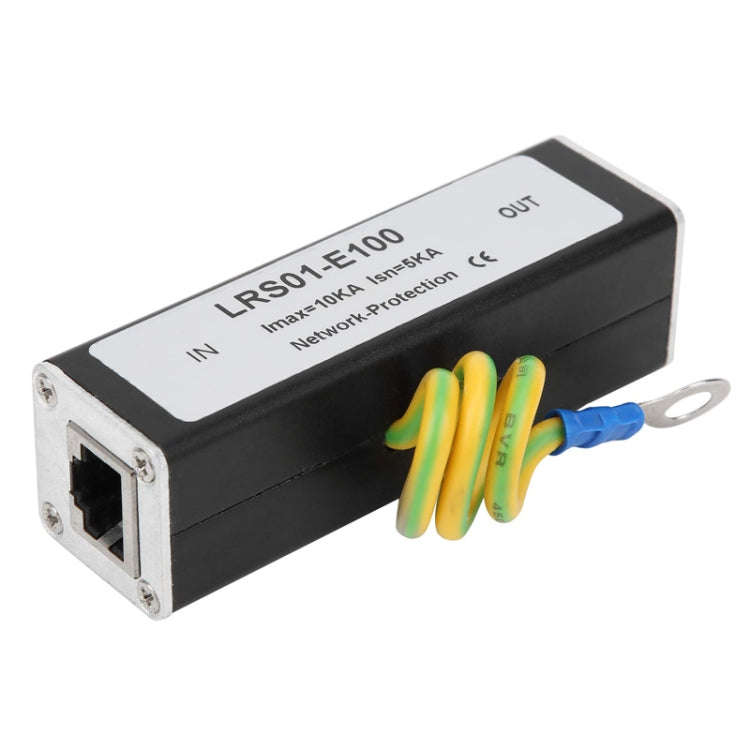

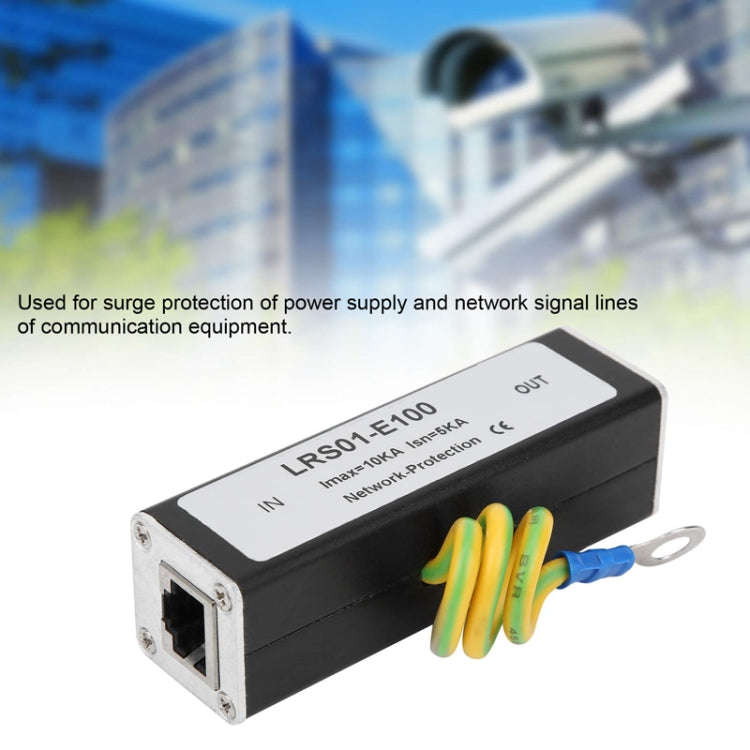

RJ45 Connector Network Surveillance Video Signal Thunderbolt Protector

1. Suitable for coaxial cable transmission of data and video signals through the over-voltage protection of related equipment
2. Multi-level protection circuit, low residual voltage
3. Excellent performance of core components, low insertion loss
4. The grounding point is processed by special technology to avoid signal interference
5. Small size, easy to install
6. Large through-current capacity, fast response time

Parameters:
1. Nominal through-current capacity: 5KA
2. Maximum current throughput capacity: 10KA
3. Voltage protection level ：less than or equal to 30V
4. Response time: less than or equal to 1ns
5. Insertion loss: less than or equal to 0.5dB
6. Operating temperature range: -25-85 degrees celsius
7. Humidity: less than or equal to 95 percent
8. Interface: RJ45
9. Protection line: single road
10. Protection form: line to ground
