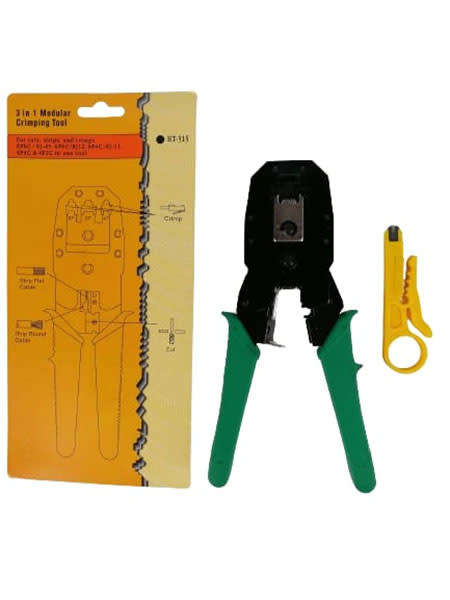

RJ45 Network Crimping Tool

• The RJ network crimping tool is designed for crimping connectors onto the ends of cables to create secure and reliable electrical connections.
• This is essential for establishing network connections, whether for Ethernet networking (RJ45 connectors) or telephone lines (RJ11 connectors).

Features:

1. Crimping Mechanism:

   • The tool has a crimping mechanism that compresses the metal pins inside the connector into the insulated wires of the cable. This ensures a solid electrical connection between the wires and the connector.

2. Cutting and Stripping Functions:

   • Most crimping tools also include built-in cutters and strippers. The cutter is used to trim the cable to the desired length, while the stripper removes the outer insulation from cabels.

3. Adjustable Die Sets:

   • Some models come with adjustable die sets or interchangeable crimping heads to accommodate different types of connectors, such as RJ45 for Ethernet or RJ11 for telephone lines. This feature adds to the tools versatility.

4. Ergonomic Handle:

   • The handles are typically designed to be ergonomic and comfortable, allowing for better grip and reduced hand fatigue during use. They may have a cushioned or rubberized grip for added comfort.

5. Durable Construction:

   • High-quality crimping tools are made from durable materials such as steel or high-grade alloys, ensuring longevity and reliability even with frequent use.

6. Precise Alignment:

   • A well-designed crimping tool ensures precise alignment of the connector and the cable, which is crucial for maintaining the integrity of the connection and avoiding performance issues in the network.

Usage:

1. Preparation:

   • Strip the outer insulation of the cable and arrange the individual wires according to the wiring standard (e.g., T568A or T568B for Ethernet).

2. Insertion:

   • Insert the prepared wires into the connector, ensuring that each wire is properly aligned with the pins inside the connector.

3. Crimping:

   • Place the connector into the crimping tool and squeeze the handles firmly. The tool will crimp the metal pins onto the wires, securing them in place.

4. Testing:

   • After crimping, its good practice to test the cable with a network tester to ensure that the connections are correctly made and that there are no wiring faults.
