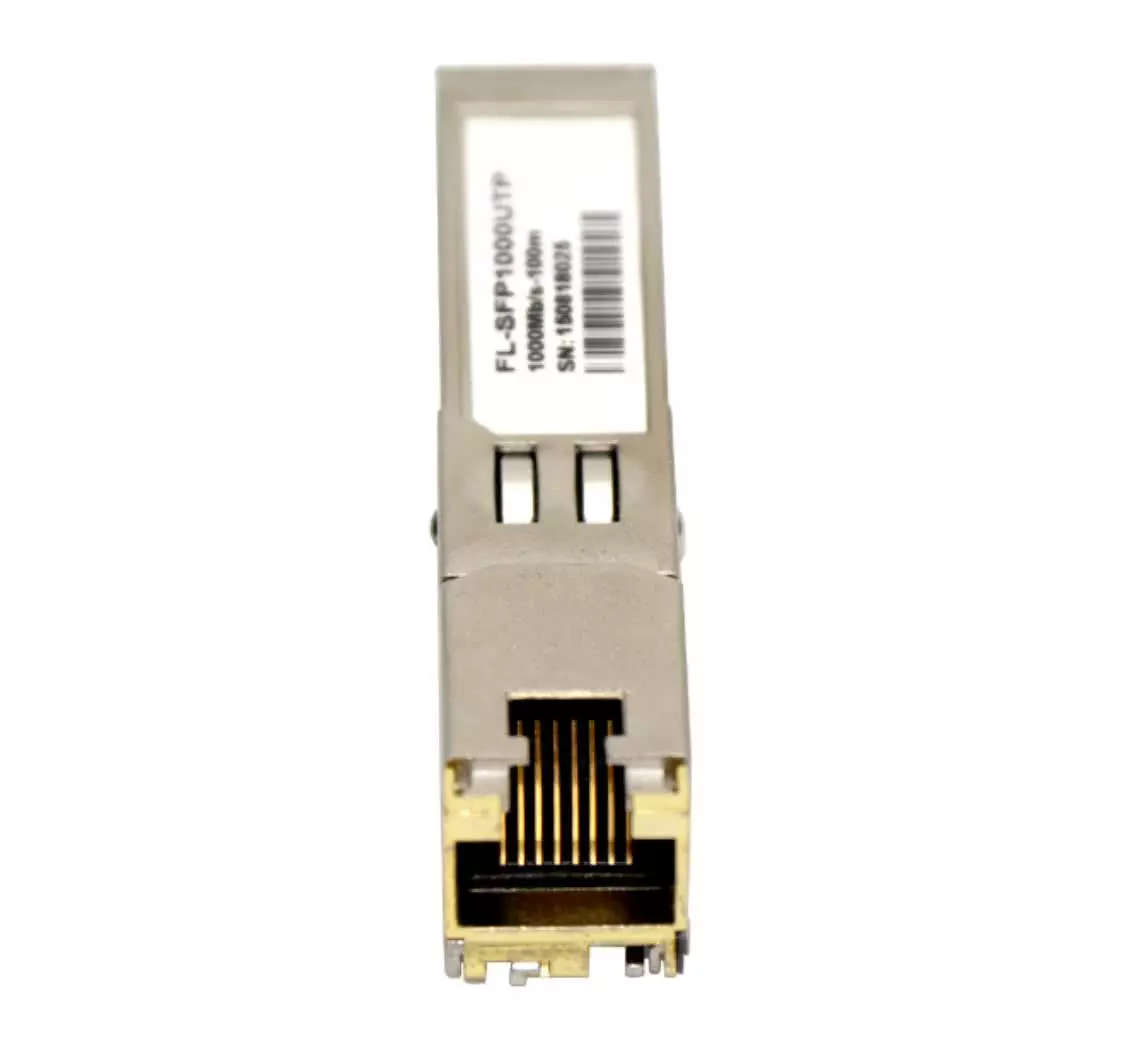

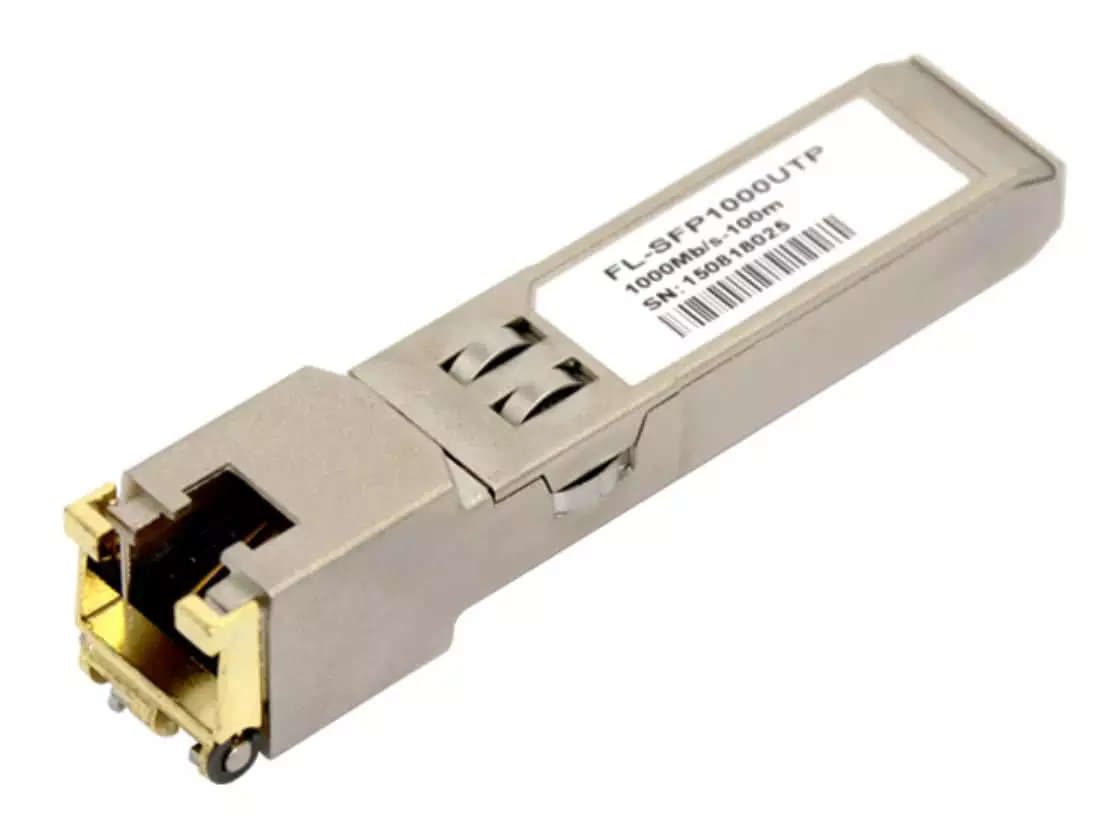

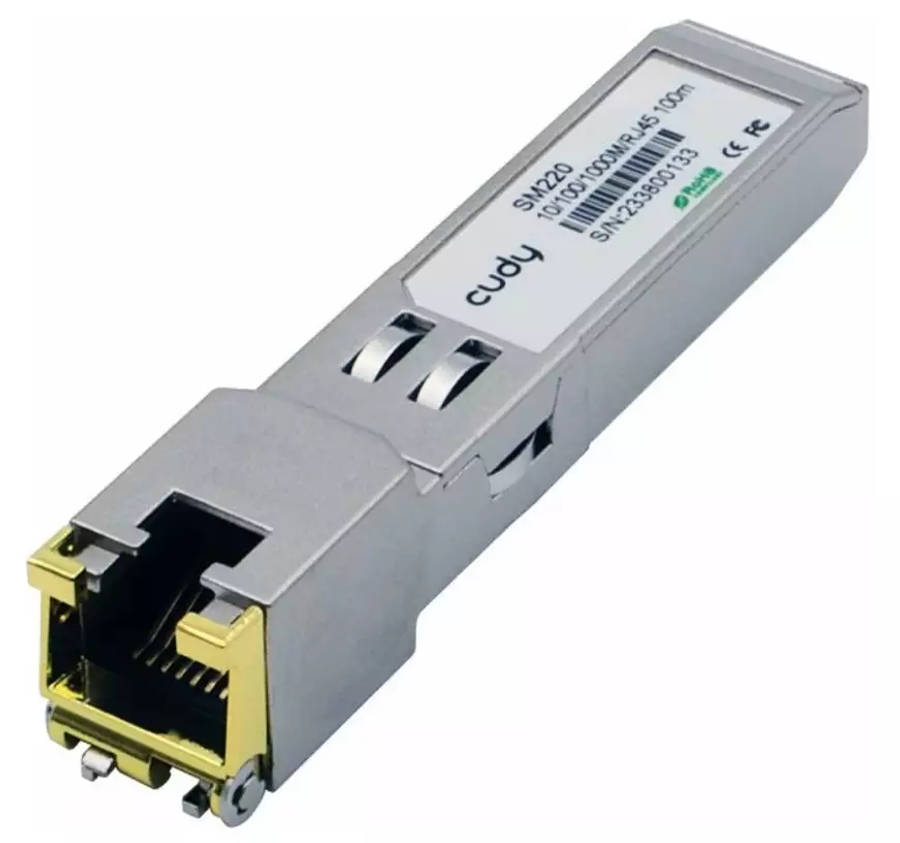

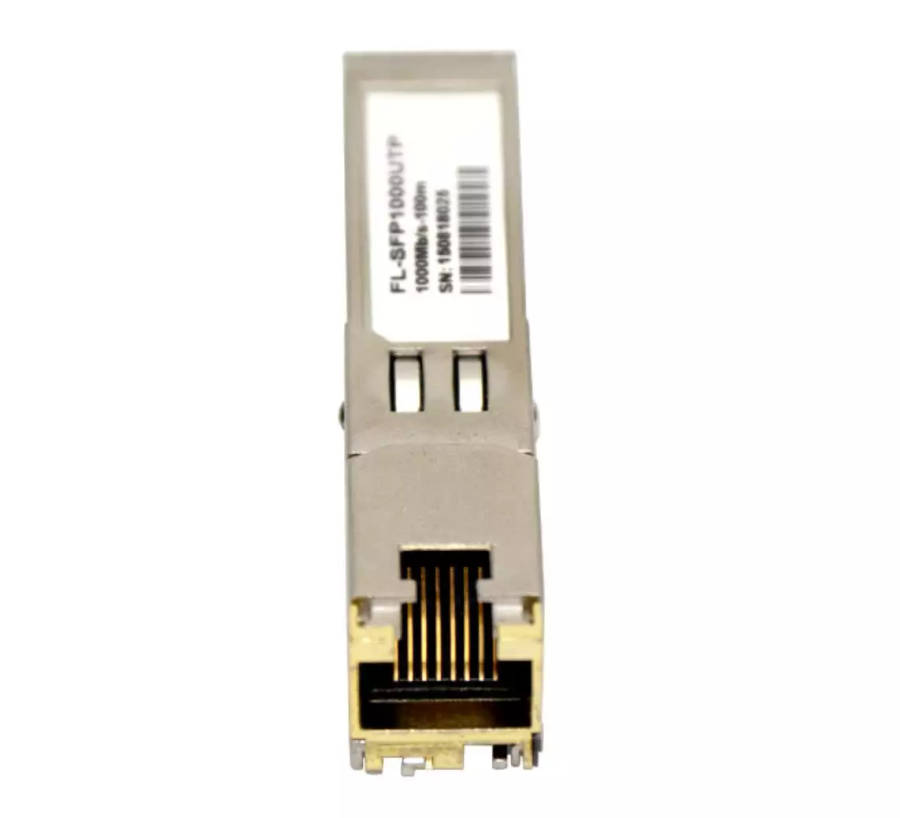

RJ45 SFP Gigabit Network Transceiver Module | 1000TX mini GBIC | Cisco or Generic Switch Compatible
The selectable SFP modules have been individually programmed to be compatible with e.g. Cisco but are also 100% compatible with other generic sfp coding brands such as Tenda, Hikvision, Cudy, TPLink, TrendNet, Netgear, Ubiquiti / Unifi and generic OEM brands. If buying specifically for Cisco please choose the correct compatibility from the drop-down list of available modules.
This SFP is Hot-Pluggable and it can be inserted into a Network or POE Network Switch without the need to power-down the switch.
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. An SFP interface on networking hardware is a modular (plug-and-play) slot for a media-specific transceiver in order to connect a fiber optic cable or sometimes a copper cable.
Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.
- Support IEEE802.3 and Fiber Channel Applications
- RJ45 mini GBic with 1Gbps GbE | 1000TX
- Connector: 1x RJ45
- Max Cable Distance : 100 Meter
- Operation case temperature -40~85°C for Industrial, and 0~70°C for commercial
Operating Conditions
| Parameter | Unit | Min | Typical | Max |
| Storage Temperature | °C | -40 | | 85 |
| Operating Case Temp for C-temp | °C | 0 | | 70 |
| Operating Case Temp for I-temp | °C | -40 | | 85 |
| Power Supply Voltage | V | 3.1 | 3.3 | 3.5 |
| Supply Current | mA | | | 300 |
| Bit Rate for GE | Mpbs | 1000 |
| | |
