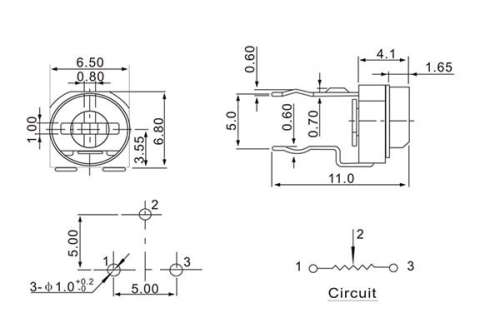

RM065 1M ohm 105 Trim Pot Potentiometer

6mm single-turn Carbon Film
Henolic Base - Resin Mould
Open Frame - PC Board Stand-offs
Enclosed Cover
Total resistance tolerance : +/-20%.
Max. operating voltage : 50V.
Total rotational angle : 200° +/-20°
Power : 0.1W

Resistance Tolerance±30%
Contact Resistance VariationR<1KΩ: 30Ω Max. R>1KΩ: 3% Max.
ResolutionInfinite
Rotational Angle210º ± 20º
Resistance TaperLinear (B)
Max. Operating Voltage50V/DC (100~500KΩ) 25V/DC (>500KΩ)
Operating Temperature Range-10ºC to +70ºC
Rotational Life

20 ±2 cycles
