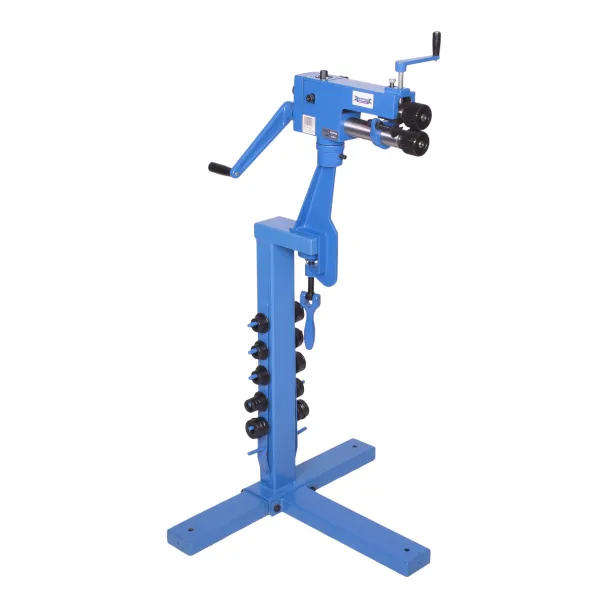

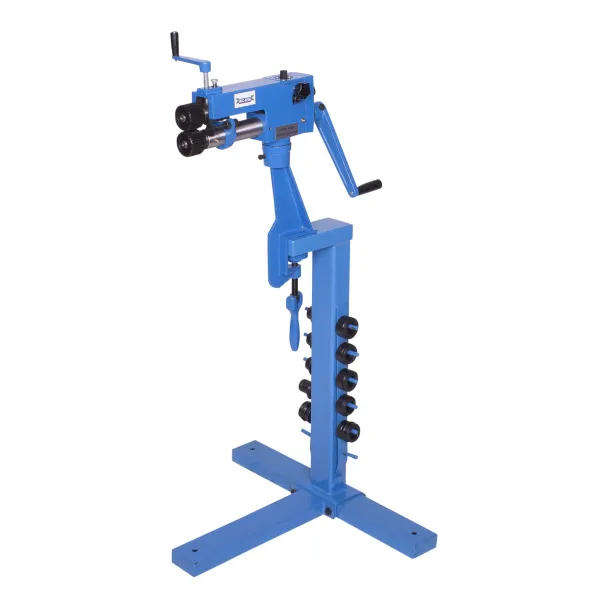

RM08 Rotary Machine with Stand

RM08 Rotary Machine with Stand

This manually operated rotary machine is designed for forming sheet metal up to 22 gauge (0.64 mm) mild steel with precision and ease. Crafted from heavy-duty cast iron and steel, the tool minimizes workpiece deflection and provides stability during use. Its compact form makes it suitable for workshops where space is limited but versatility and accuracy are still required.

Equipped with a six-piece die set, the machine supports a variety of forming operations such as burring, wiring, large and small turning, ogee beading, and crimping. The adjustable bend angle offers control and flexibility, while the robust frame ensures consistent performance. Ideal for metalworking professionals and fabrication shops handling lightweight sheet metal.

Features
Designed for forming 22-gauge (0.64 mm) mild steel
Heavy-duty cast iron and steel construction
Supports burring, wiring, beading, turning, and crimping
Comes with 6-piece die set for multiple forming applications
Adjustable bend angle for precise shaping
Compact design with stand for shop floor use
Ideal for decorative work, HVAC ducting, and light fabrication

Specifications
Max Thickness: 0.64 mm (22 gauge)
Cylinder Length: 300 mm
Throat Depth: 177 mm
Die Sizes: 55 mm
Gear Teeth Count: 31
Base Dimensions: 530 mm × 700 mm
Types of Adjustments: Bend angle
