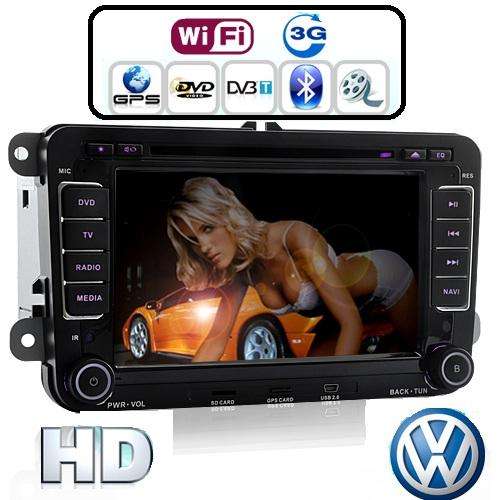

If performance matters most and money is no object then we invite you to complete your Volkswagen with The Road Emperor Volkswagen Edition Car DVD Player (aka Volkswagen Emperor), which has been especially designed for Passat B6, Passat B7, Passat CC, Jetta 2005-2008, Golf 2003~2009, Skoda Superb, Tiguan and Touran.

At a Glance...

• Surf the 3G Internet
• Surf WIFI Internet
• High definition 7 inch touchscreen
• GPS navigator
• DVB-T receiver
• Free 2GB SD card included
• Dual zone functionality
• Picture in picture
• Customize background pic
• Music: MP3 / WMA / EAAC+ / AC3
• Video: H.264, MPEG 4, Real Video 8/9/10

Manufacturer Specifications

• Designed for Volkswagen Vehicles:
  - Passat B6
  - Passat B7
  - Passat CC
  - Jetta 2005-2008
  - Golf 2003~2009
  - Skoda Superb
  - Tiguan
  - Touran

• Primary function: 2-DIN Car DVD Player with GPS, DVB-T, WIFI, and 3G Internet Access

• Main system information
  - Motherboard: Telechips TCC8900
  - Core CPU: ARM 1176JZF-S (500MHz)
  - GPU: ARM Mali-200 (200MHz)
  - Internal memory: 256MB RAM, 256MB Nand Flash
  - External memory: SDHC card (up to 32GB) and USB drive (up to 32GB)
  - Default baud rate: 9600
  - COM port: 2
  - Operating system: Windows CE 6.0

• GPS information
  - Receiver module: MediaTek GS-92m-J
  - Frequency: 1.575.42 GHZ
  - C/A Code: 1.023 MHZ
  - Signal channels: 32
  - Tracking sensitivity: -157dBm
  - Position sensitivity: 10m, 2D RMS; 5m, 2D RMS , WAAS enable
  - Speed rate: 0.1m/s
  - Data update rate: 1HZ
  - Recapture time: Average 0.1s
  - Hot startup time: Average 1s
  - Warm startup time: Average 30s
  - Cold startup time: Average 36s
  - Maximum position altitude: 18000M
  - Maximum speed rate: 515m/s
  - Built-in antenna type: External power source porcelain antenna
  - Built-in antenna voltage: 3.3V±5%
  - Built-in antenna current: 6mA
  - Built-in antenna gain: 27dB
  - Interface: Touch screen
  - GUI interface: YES - 3D type
  - Maps: via SD card
  - Voice: YES

• Internet information
  - 3G: supports WCDMA 3G dongles and WCDMA 3G sim cards
  - WIFI: 802.11 b/g (included)

• Display information
  - Screen: 7 Inch TFT LCD
  - Resolution: 800 x 480 RGB
  - Picture in picture: YES
  - Choose your own background pic: YES
  - Tilt angle: 0-90 degrees (button activated motorized tilt)
  - Video systems: PAL, NTSC, AUTO

• Disc information
  - Region free (also known as region zero or no region)
  - CD, VCD, SVCD, DVD, MP3, WMA

• DVD information
  - Auto play: ON/OFF
  - 16:9, 4:3 PS, 4:3 LB

• DVB-T information
  - Digital TV receiving standard: MPEG-2
  - Automatic and manual search
  - Display: 16:9, 4:3

• Audio information
  - Max audio output: 45W x 4
  - Signal-to-noise ratio (SNR): >85dB
  - User adjustable EQ: Bass, Treble, Balance, and Fade

• AM/FM radio tuner information
  - AM frequency range: 522~1710KHz (Worldwide)
  - FM tuning range: 87.5~108.0MHz (Worldwide)
  - RDS system: YES

• Bluetooth 2.1

• Media player information
  - Video formats supported (up tp 1080p): H.264, MPEG 1/2, MPEG 4, VC-1, Real Video 8/9/10, H.263
  - Audio formats supported: MP3 / WMA / EAAC+ / AC3
  - Image formats supported: JPG

• Control information
  - IR window
  - Eject
  - Screen angle adjust up
  - Screen angle adjust down
  - Volume decrease
  - Volume increase
  - GPS toggle
  - Power ON/OFF
  - Reset
  - Microphone

• Main menu languages: English and Chinese
• Dimensions: 175mm x 150mm x 100mm (L x W x H)
• Front panel: 220mm x 20mm x 130mm (L x W x H)

Product Notes

• This unit has steering wheel control
• Has PiP (picture in picture) functionality
• This product supports the DVB-T digital TV standard, which is not used worldwide. Please check to see if DVB-T will work in your region: [http://en.wikipedia.org/wiki/DVB-T]
• This DVB-T product receives MPEG-2.
• Connect your iPod to listen to your entire music collection on your car stereo system
• The USB port is a great way to hook up your portable media player with your car entertainment center
• Special GPS Note: This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, ElectroShopworld provides the GPS-enabled hardware only, not the software. We provide no warranty or customer support regarding GPS software. Electroshopworld cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
• The installation of this Car DVD Player should only be performed or supervised by a professional.

Package Contents

• Volkswagen Emperor car DVD
• Remote control
• 54 Mbps 802.11b/g WIFI dongle
• GPS antenna with coax connection
• DVB-T antenna with coax connection
• 13 pin round male to 30-pin male apple connector + female full USB cable
• Micro USB male to full USB female cable
• Male 5mm radio antenna to female 3mm radio antenna
• AV cables
• Stylus
• Power cables with decoder for Volkswagen
• Power Line
• User manual - English
