At a Glance...
â High Definition 7.0 Inch LCD True Touchscreen
â Astounding 800 x 480 Screen Resolution
â GPS and free magnet antenna
â DVB-T and free magnet antenna
â Free 2GB SD card with evaluation GPS software
â Dual Zone functionality
Manufacturer Specifications

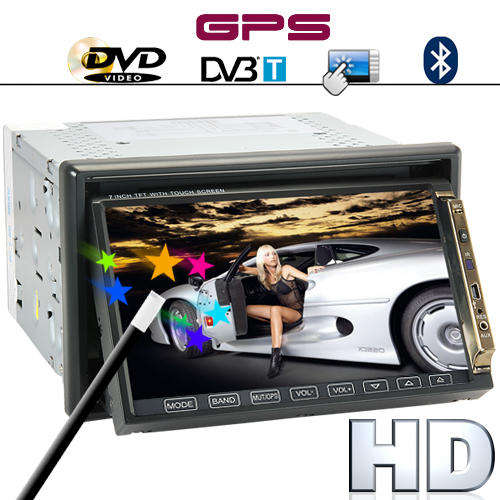

â Primary Function: Car DVD Player System with DVB-T and GPS Navigator with High Definition 7 Inch True Touchscreen
â Discs: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW
â Media Formats Supported
- Video: MPEG 1/2, AVI, DIVX, XVID
- Audio: MP3, WMA
- Picture: JPEG
â External Memory
- USB Drive: YES (max 8 GB)
- SD Card: YES (max 8 GB)
â Operation: Touch Screen or Remote Control
â Display Information
- Screen: 7 Inch TFT LCD
- Resolution: 800 x 480
- Angle: 0-90 (Motorized sliding display panel)
- Video Systems: PAL, NTSC, AUTO
â Audio Information
- Max Audio Output: 45W x 4
- Signal-To-Noise Ratio (SNR): >85dB
- User Adjustable EQ: Bass, Treble, Balance, and Fade
â GPS Information
- Receiver Chip: Atheros AR1511
- GUI Interface: YES - 3D type
- Touchscreen Interface: YES
- Operating Environment: WIN CE 5.1
- PIP (Picture in Picture) Function â DVD Information
- PIP (Picture in Picture) Function
- Auto Play ON/OFF
- 16:9, 4:3 PS, 4:3 LB â DVB-T Information
- DVB-T receiving standard: MPEG-2
- Automatic and Manual Search
- Display: 16:9, 4:3
- PIP (Picture in Picture) Function
â AM/FM Radio Tuner Information
- AM Frequency Range: 522~1710KHz (Worldwide)
- FM Tuning Range: 87.5~108.0MHz (Worldwide)
- RDS System: YES
- PTY (Program Type), AF (Alternative Frequencies), TA (Traffic Announcements), Local DX Switch
â Bluetooth Information
- Pair with mobile phone - then use touchscreen interface
- Dial, Answer, Stop Call
- Call History (Dialed, Received, Missed)
- Volume Control
- Touchscreen Keypad
- Pair with your cellphone and play music from your phone through your car speakers
â Media Inputs
- DVD/CD disc slot (behind touchscreen)
- SD/MMC card slot (behind touchscreen)
- GPS card slot (behind touchscreen)
- Mini USB input (front)
- AUX input (front)
- GPS Antenna (rear)
- DVB-T Antenna (rear)
â Front Panel Controls
- Microphone
- Power Button
- Remote Control Sensor
- Mini-USB Port
- Reset Button
- AUX-IN
- Eject Button
- Tuning/Select Tracks
- Volume Adjust
- Mute/GPS
- Band Button
- Mode Button
â Primary AV Cables / Wires
- DVB-T antenna port IN
- GPS antenna port IN
- IPOD connector
- Rearview CCD Camera IN
- Video IN
- Video OUT x2
- Aux-L IN
- Aux-R IN
- Subwoofer
- RCA Audio OUT x2 (front L and R)
- RCA Audio OUT x2 (rear L and R)
- Left Front Speaker x2
- Right Front Speaker x2
- Left Rear Speaker x2
- Right Rear Speaker x2
â Dimensions for 2-DIN Unit: W: 178 mm H: 100 mm D: 160 mm (with front panel: 180 mm)
â OSD Languages: English, Chinese
â Certifications: CE, FCC
â Manufacturer Ref: KING4LYF123
Product Notes
â This product supports the DVB-T digital TV standard, which is not used worldwide. Please check to see if DVB-T will work in your region: [http://en.wikipedia.org/wiki/DVB-T]Package Contents for Model CVGX-C39
â Car Multimedia Player
â Remote Control with battery included
â Free 2GB SD Card with evaluation GPS software and maps
â Magnetic GPS antenna with 300 cm cord
â Magnetic DVB-T antenna with 300 cm cord
â USB Extension Cable
â iPod Cable
â Mounting Hardware
â Pen Stylus
â Users Manual - English
