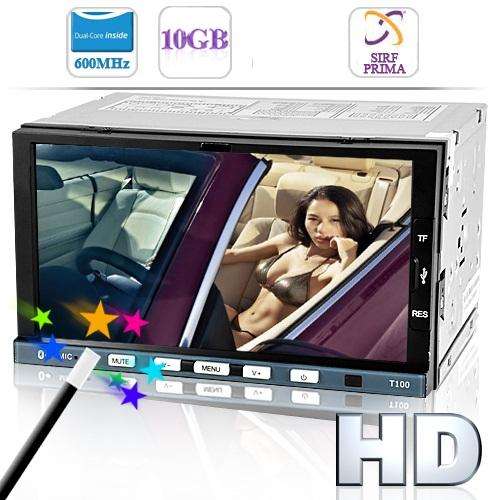

Road King Pro Car Multimedia Player (Dual Core CPU, SiRF Prima GPS, 10GB) - C75

Road King Pro Car Multimedia Player (Dual Core CPU, SiRF Prima GPS, 10GB) - C75

At a Glance...

• Dual Core CPU
• 128MB Mobile DDR RAM
• SiRF Prima GPS Chip
• Geniune Windows CE 6.0
• 10GB multimedia memory instead of a DVD player!
• 7 inch high definition LVDS touchscreen
• Two MIC receptors for better handsfree calling
• Dual DIN universal car dvd player form factor

Manufacturer Specifications

• Primary Function: Road King PRO Car Multimedia Player (Dual Core CPU, SiRF Prima GPS, 10GB)
• Main System Information
  -CPU Model: SiRF Prima Multifunction Processor
  -CPU Speed: 600MHz
  -CPU Type: Dual Core
  -1st Core: ARM11 RISC with FPU (performance)
  -2nd Core: 16-bit DSP (graphics)
  -Integrated Touchscreen Controller: YES
  -Operating System: Windows CE .NET 6.0 Core

• Memory Information
  -RAM Memory: 128MB (mobile DDR)
  -Flash Memory: 8GB iNAND
  -SD Card Slot (supports SDHC up to 32GB): (No card supplied)
  -USB Drive Port: YES (max 32GB)<
• Media File Formats Supported Information
  -Video: AVI (XViD codec), AVI (MPEG-4 codec), AVI (DivX 3 codec), AVI (DivX 5 codec), AVI (MJPEG codec), MP4 (XViD codec), MP4 (MPEG-4 codec), WMV, RMVB, RM, FLV, MPG (MPEG 1/2), MPEG (MPEG 1/2), ASF, VOB
  -Audio: MP3, WMA, WAV
  -Photo: JPG, PNG, GIF, BMP
  -Ebook: TXT
• Display Information
  -Screen: 7 Inch TFT LCD
  -Resolution: 800 x 480 (LVDS)
  -Aspect Ratio: 16:9
  -Video Systems: PAL, NTSC, AUTO
  -Operation: Touch Screen
• Audio Information
  - Max Audio Output: 50W x 4
  - Signal-To-Noise Ratio (SNR): >85dB
• AM/FM Radio Tuner Information
  - AM Frequency Range: 522~1710KHz (Worldwide)
  - FM Tuning Range: 87.5~108.0MHz (Worldwide)
• Bluetooth Information
  - Pair with mobile phone - then use touchscreen interface
  - Dial, Answer, Stop Call
  - Call History (Dialed, Received, Missed)
  - Volume Control
  - Touchscreen Keypad
• Media Inputs Information
  - TF/microSD card slot (right of screen)
  - Mini USB input (right of screen)
  - AUX input (rear)
• Menu Icons Information
  -Photo browsing
  -Music play
  -Video play
  -Bluetooth
  -AUX-IN
  -System configuration (settings)
  -Resource management
  -Games
  -eBooks
  -Radio
• Front Panel Controls Information
  -Bluetooth
  -dual MIC with Denoiser active noise cancellation
  -Mute
  -Volume Decrease
  -Menu
  -Volume Increase
  -Power ON/OFF
  -Infrared Window
  -TF microSD card slot
  -USB port
  -Reset Button
• Primary AV Cables / Wires information
  - RCA input
  - USB input
  - GPS antenna input
  - RCA Audio OUT x2 (front L and R)
  - RCA Audio OUT x2 (rear L and R)
  - Aux-L IN
  - Aux-R IN
  - Subwoofer
  - Rearview CCD Camera IN
  - Left Front Speaker x2
  - Right Front Speaker x2
  - Left Rear Speaker x2
  - Right Rear Speaker x2
• Time and Date display: YES
• Working voltage: 10.8~16V
• Working current: < 5A
• Sleep current: < 10mA
• Operating temperature: -10~60°C
• Storage temperature: -20~80°C
• Dimensions for 2-DIN Unit: W: 178 mm H: 100 mm D: 124 mm (with front panel: 140 mm)
• Main Menu Language: English, French, German, Spanish, Portuguese
• Certification: CE, FCC, RoHS, ISO9001, ISO14001, OHSAS18000, Microsoft Windows Embedded Partner Excellence Award

Product Notes

• Dual Core CPU Performance - this car entertainment system is ultra-responsive. No matter how fast you jump from menu to menu, you won't experience lag or system errors!
• By removing the DVD player module from the unit, that left room for more processor components while keeping the overall weight of the product lighter so shipping costs are lower. Furthermore, by opting for a DVD player-less in car entertainment unit, your media doesn't skip when the road gets bumpy,and you don't have to carry around a heavy stack of DVD disks!
• Display screen is covered by thin plastic protective film. For better visual quality, please remove this screen protector.
• Two menu modes: Sliding Touch and 3D Pivot.
• Customize wallpaper with any photo or choose slideshow to have different photos display based on preset time interval
• Integrated hardware video decoder engine with support for D1 resolution H.264/MPEG1/MPEG2/MPEG4/WMV9
• Integrated hardware video and image encoder engine with support for D1 resolution H.264/MPEG4 video and 10 megapixel JPEG still images

Package Contents

• Road King PRO Car Multimedia Player (Dual Core CPU, SiRF Prima GPS, 10GB)
• Rubber fitting strap
• Mini-USB to USB cable
• Media Player cable
• RCA to RCA cable
• Peripherals Harness
• ISO Harness
• Metal Mounting Brackets
• Mounting Screws
• Stylus
• User Manual - English
