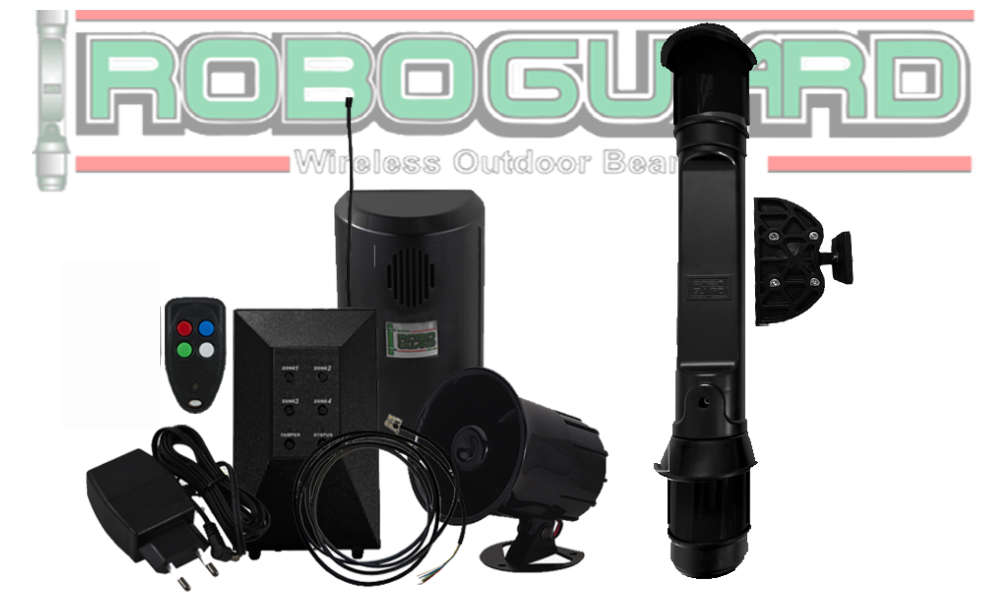

Roboguard Deluxe Basic Kit

• 8 zone with individual intruder detection
• Tamper detect and supervision LED s together with audible warning s
• 5 onboard outputs rated at 1A and 4 low current outputs rated at 40mA
• Remote arming disarming including panic
• NiMH 6v battery with the on board UHF receiver and resident speaker

RoboGuard Odoor Tx 20m 110 Degree Dual Passive incl Ball Brkt - Blk

• Wireless outdoor passive infrared detector with two PIR channels
• 20 Meter x 110 detection area
• Battery operated
• Black housing with mounting bracket
• Optional remote key fob operation
• Use with BD313 ROBOGUARD alarm interface
• Up to 4 PIR s per interface

RoboGuard Charger 220V

• 2 Pin AC/DC Adaptor charger with lead and DC jack
• 220VAC-0.3Amps input
• 16VDC-250mA output

RoboGuard XP Alarm Cord

• Connects HQ to auxillary devices
• For 5 negative going output triggers
• Format 1: Zone Alarms Tamper Status Panic and Siren
• Format 2: Zone 1234 and Siren

RoboGuard Power Pack 7Ah with Siren Output and HQ Interface

• Power pack
• HQ interface to external devices such as a siren and/or alarm panel
• A complete solution with 7A/h battery
• 16VDC transformer telecable
• DC power to HQ and 5 relay output PCB

RoboGuard Remote 4 Button

• Arm/disarm Roboguard HQ unit
• Panic will activate siren and panel connection
• Silent Panic Activate panel connection only
• Axillary Activate e.g. outdoor lights
• Note: Must be used Roboguard remotes Remotes can only operate Roboguard

Siren Compact 15W

• Operating voltage: 6 - 12VDC
• Current draw: 600mA
• 15W horn with built-in siren driver
• 108dB at 1 metre
• Weather-resistant ABS plastic design
