Robotdyn Graphic LCD 128x64 Display Board + Buzzer Shield

20 available / new
R639.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641131798

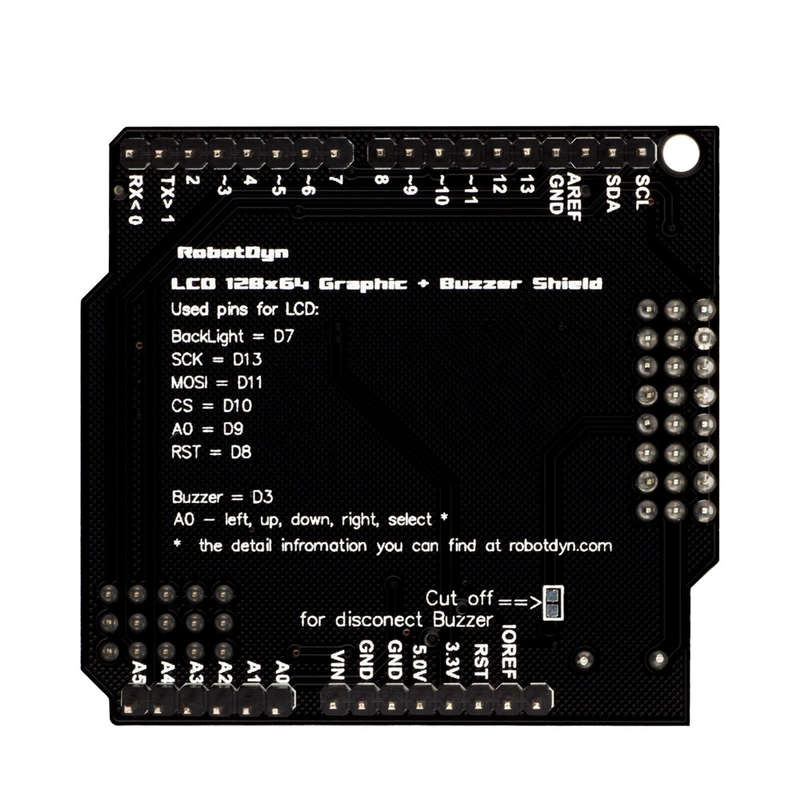

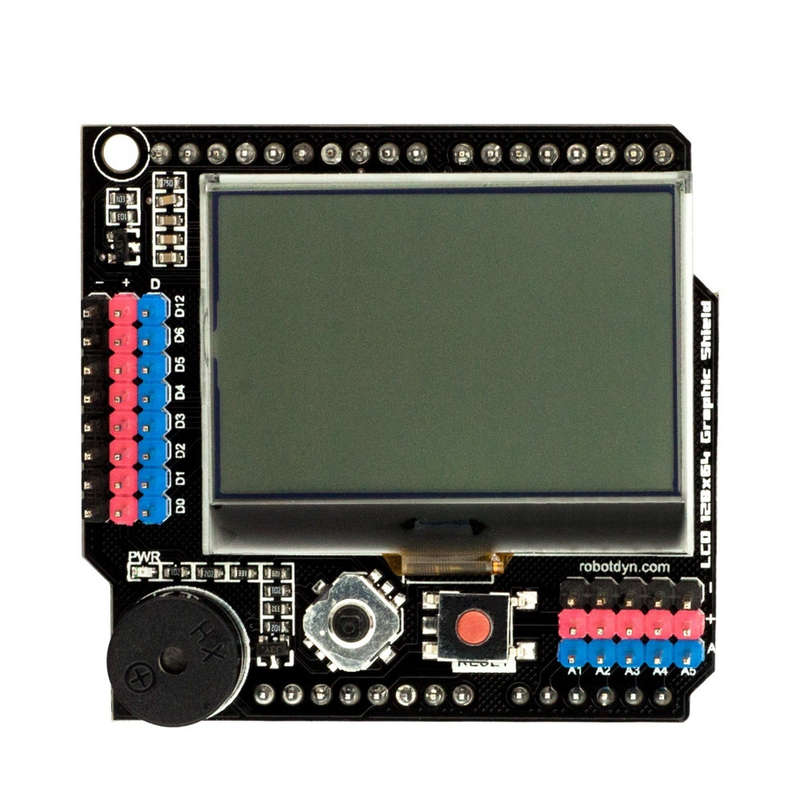

Description: The LCD12864 Shield is a graphic LCD, joystick, buzzer and handy I/O pins for Arduino compatible microcontrollers. This shield features a 128x64 pixel graphic LCD display with backlight. The display can be used to output text or graphics. The operations is simplified by using the powerful u8glib Universal Graphics Library for 8 Bit Embedded Systems. The u8glib provides a rich set of drawing operations. The LCD12864 also contains a 5 way joystick and a reset button. Convenient headers are provided for access to 5 analog and 8 digital pins complete with voltage single and ground pins. The LCD is controlled via a SPI interface using five digital pins D8, D9, D10, D11 and D13. The backlight uses digital pin D7. The 5 way joystick is attached to analog input A0. Buzzer connected to D3. If you need D3 for other function, you can disconnect buzzer from D3. For this have soldering bridge on the bottom side of the board. This shield operates from 3.3V power but is fully compatible with 5V boards.

Microcontroller ATmega2560
USB-TTL converter CH340G
Power Out 3.3V-180mD
5V-800mD
Power IN. USB 5V
Power IN. VIN/DC Jack 6-12V
Power Consumption 5V 220mA
LogicLevel 5V
Clock Frequency 16MHz
Operating Supply Voltage 5V
Digital I/O 54
Analog I/O 16
Memory Size 256kb
Data RAM Type/Size 8Kb
Data ROM Type/Size 4Kb
Interface Type ISP
Operating temperature a40Dᆪ/+85Dᆪ
LengthWidth 53.361101.86mm

Documents:
Package includes:

1 xLCD12864 Shield
