Robotdyn Graphic LCD 128x64 Display Board + Buzzer Shield

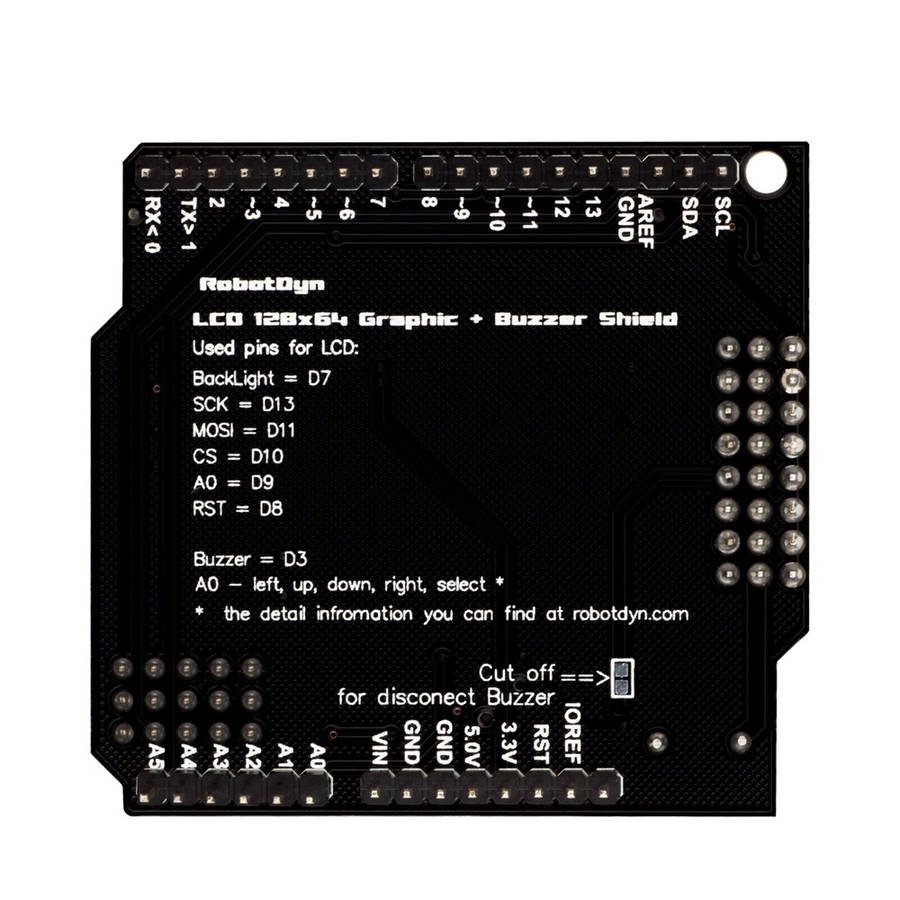

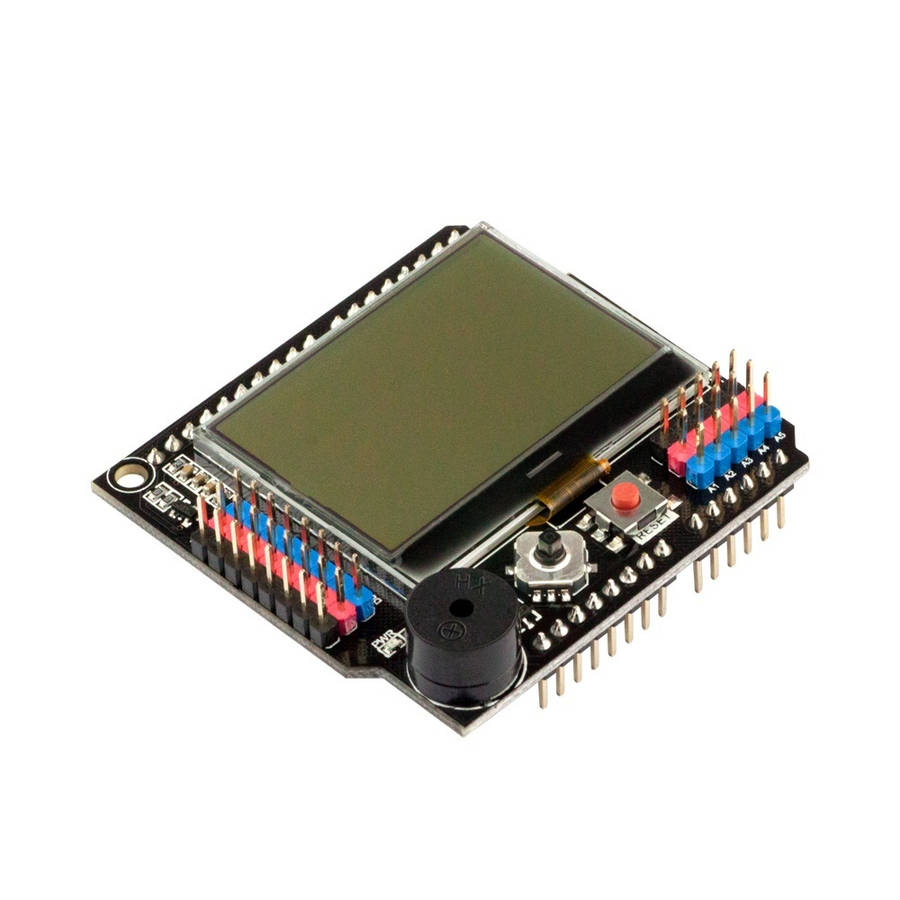

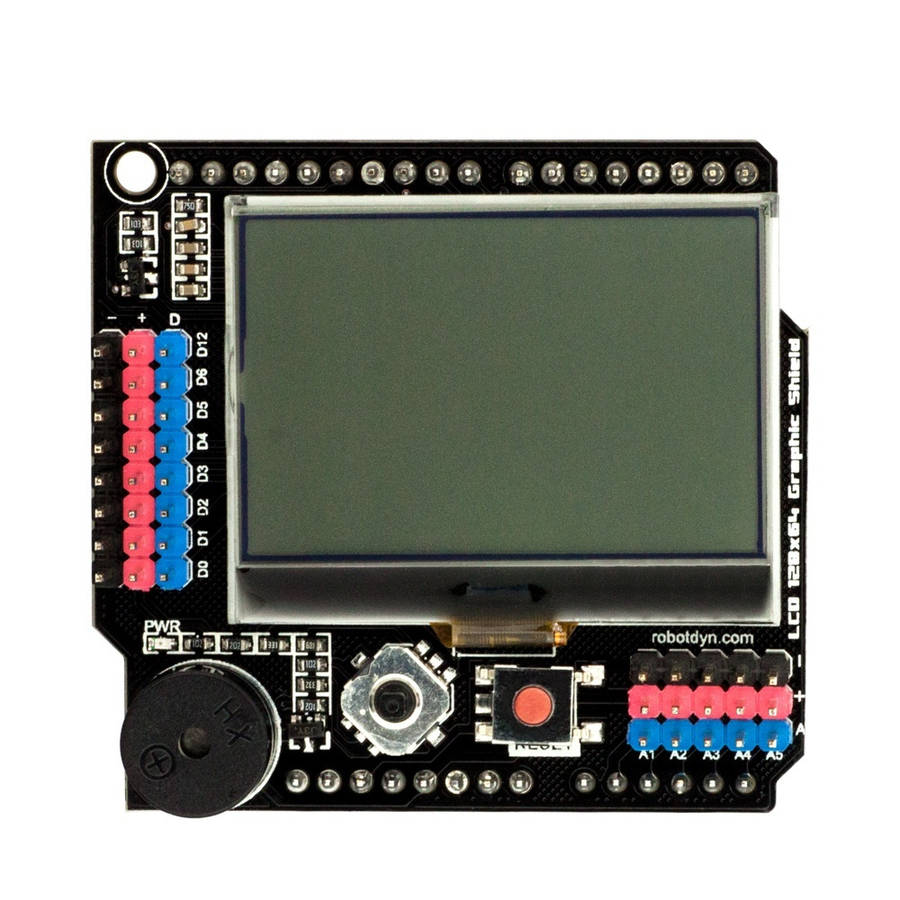

Description: The LCD12864 Shield is a graphic LCD, joystick, buzzer and handy I/O pins for Arduino compatible microcontrollers. This shield features a 128x64 pixel graphic LCD display with backlight. The display can be used to output text or graphics. The operations is simplified by using the powerful u8glib Universal Graphics Library for 8 Bit Embedded Systems. The u8glib provides a rich set of drawing operations. The LCD12864 also contains a 5 way joystick and a reset button. Convenient headers are provided for access to 5 analog and 8 digital pins complete with voltage single and ground pins. The LCD is controlled via a SPI interface using five digital pins D8, D9, D10, D11 and D13. The backlight uses digital pin D7. The 5 way joystick is attached to analog input A0. Buzzer connected to D3. If you need D3 for other function, you can disconnect buzzer from D3. For this have soldering bridge on the bottom side of the board. This shield operates from 3.3V power but is fully compatible with 5V boards.

Microcontroller	ATmega2560
USB-TTL converter	CH340G
Power Out	3.3V-180mD
	5V-800mD
Power IN. USB	5V
Power IN. VIN/DC Jack	6-12V
Power Consumption	5V 220mA
LogicLevel	5V
Clock Frequency	16MHz
Operating Supply Voltage	5V
Digital I/O	54
Analog I/O	16
Memory Size	256kb
Data RAM Type/Size	8Kb
Data ROM Type/Size	4Kb
Interface Type	ISP
Operating temperature	a40Dﾣ/+85Dﾣ
LengthWidth	53.361101.86mm

Documents:
Package includes:

1 xLCD12864 Shield
