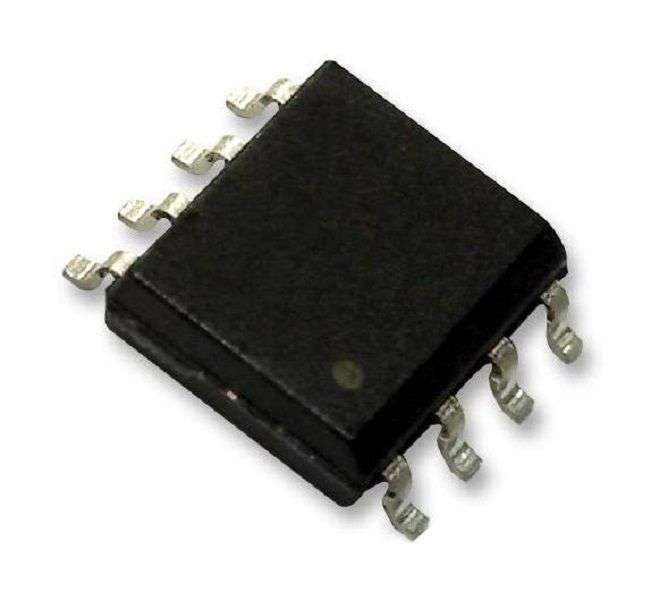

Rohm (BD6220F-E2) H-Bridge Driver, 6V to 15V supply, 500 mA/1 Output, SOP-8

Product OverviewThe BD6220F-E2 is a H-bridge Driver in different supply voltages 18V and outputcurrent 0.5A to meet the needs of a variety of applications. It contains a VREFvariable function that contributes to lower power consumption and greaterefficiency. In addition multiple built-in protection circuits protect the IC andload from damage while ensuring a high degree of reliability. This highlyefficient H-bridge driver IC facilitates low-power consumption design.Built-in selectable one channel or two channels configurationVREF Voltage setting pin enables PWM duty controlCross-conduction prevention circuitLow standby currentOCP, OVP, TSD and UVLO four protection circuits providedApplicationsMotor Drive & Control, Consumer Electronics, HVACProduct InformationMotor Type: DC BrushNo. of Outputs: 1OutputsOutput Current: 500mADriver Case Style: SOPNo. of Pins: 8PinsSupply Voltage Min: 6VSupply Voltage Max: 15VOperating Temperature Min: -40°COperating Temperature Max: 85°C
