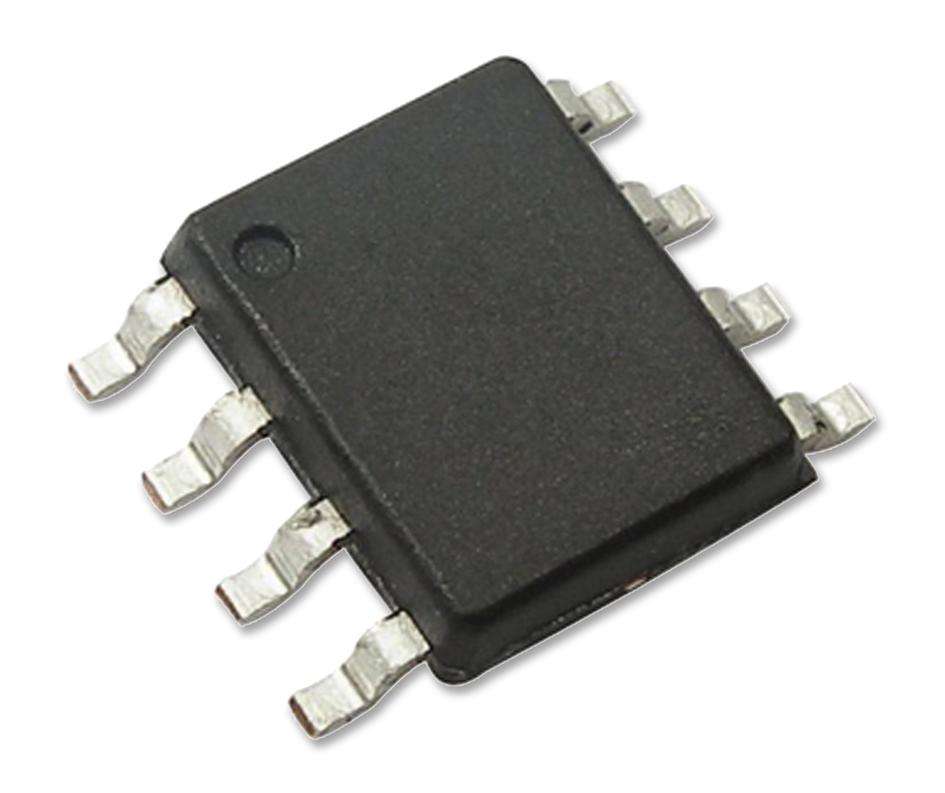

Rohm (BD9G341AEFJ-E2) DC-DC Switching Buck (Step Down) Regulator

DC-DC Switching Buck (Step Down) Regulator, Adj., 12V-76Vin, 1V-76V/3A out, 750kHz, HTSOP-8Product OverviewThe BD9G341AEFJ-E2 is a 1-channel buck converter integrated FET in 8 pin HTSOPpackage. The BD9G341AEFJ is a buck switching regulator with integrated 150mohmpower MOSFET. Current mode architecture provides fast transient response and asimple phase compensation setup. The operating frequency is programmable from50KHz to 750KHz. Additional protection features are included such as overcurrent protection, thermal shutdown and under voltage lockout. The undervoltage lockout and hysteresis can be set by external resistor. Typicalapplications include industrial distributed power applications, automotiveapplication and battery powered equipment.Input voltage range from 12V to 76VRef voltage (Ta=25°C) is ±1.5 [%]Maximum output current is 3AIntegrated 80V/3.5A/150mohm N channel FETPrecision EN threshold of ±3%Soft-start functionStandby current is 0µAApplicationsPower Management, Automotive
