Description: You now have all the options you need for watching your favorite TV shows and play FM radio and DAB digital radio on your computer, record them and convert them with enclosed converting software. Then you can send them to your ipod by itunes or other MP4 device, so you can watch them any where and any time. With the product, you can record live TV or schedule recordings using the built-scheuler. The time-shift function also allows you to pause and instantly replay your favorite scenes.
Features:Digital terrestrial video and radio programs recording.
Real time digital video recording and broadcasting.
Still image capture and PIP (Picture In Picture).
One touch channel auto-scan at
6 / 7 / 8 MHZ.
On-Fly decode software technique.
Multi-language installation and application program.
Can schedule recordings using the built-scheduler and Time-shifting function.
Support both MPEG-2, MPEG-4(H.264) encoding.The RTL2832U outputs 8-bit I / Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s.
The frequency range is highly dependent of the used tuner, dongles that use the Rafael Micro's R820T offer possible range 25 ~ 1700 MHz.
Suitable Countries: Albania, Algeria, Andorra, Australia, Austria, Bahrain, Belarus, Belgium, Bermuda, Brunei, Croatia, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Ghana, Hungary, Italy, Kenya, Latvia, Lithuania, Luxembourg, Malaysia, Malta, Mauritius, Morocco, Myanmar, Namibia, Netherlands, New Zealand, Norway, Panama, Poland, Portugal, Republic of Macedonia, Russia, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Trinidad and Tobago, Tunisia, Turkey, Kraine, United Kingdom, Uruguay, Vietnam
Specification: | System Requirements | Microsoft Windows XP / 2000 / Vista / 7 / 8 |
| Desktop or notebook |
| 800MHZ CPU or above |
| 128 RAM or above |
| VGA card with at the least 8MB memory |
| Sound card |
| Microsoft direct X9.0 or above |
| Digital terrestrial TV antenna |
| Special Requirement for Operating PIP | VGA card support VMR 9 |
| USB 2.0 port |
| P4 1.8G recommended |
| Tuner |

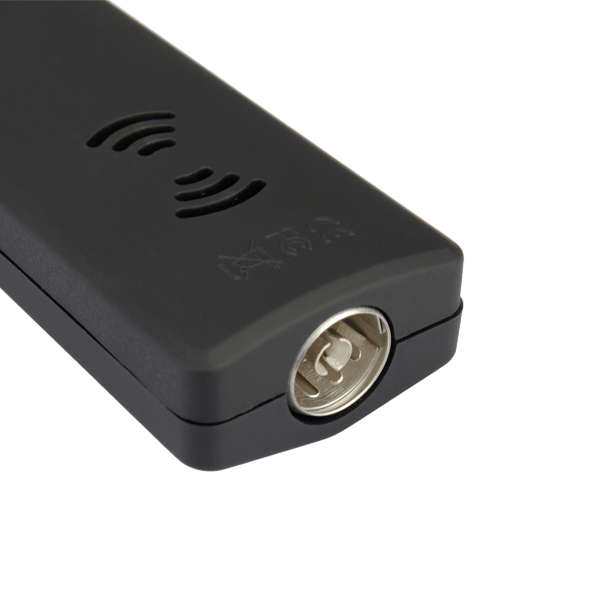

| Input Terminal | 75 Ohm Din |
| Receiving Frequency | 48.25 - 863.25Mhz |
| Tuner Range | COFDM & FEC |
| Fully DVB-T Compliant | 2K or 8K FFT size |
| Bandwidth | 6 / 7 / 8MHz auto select |
| De-multiplexing |
| Engine | Hardware |
| Stream Capture | PES & TS |
| A / V Format |
| Video Format | MPEG-II MPEG-4 main profile & main level |
| Audio Format | MPEG-II MPEG-4 audio layer I.II & 4 |
| Product Weight | 20g |
| Approved | CE / FCC |
If you want t listen DAB or DAB+digital radio, you must make sure you have DAB or DAB + signal, and the results you received depends on the signal strength.
