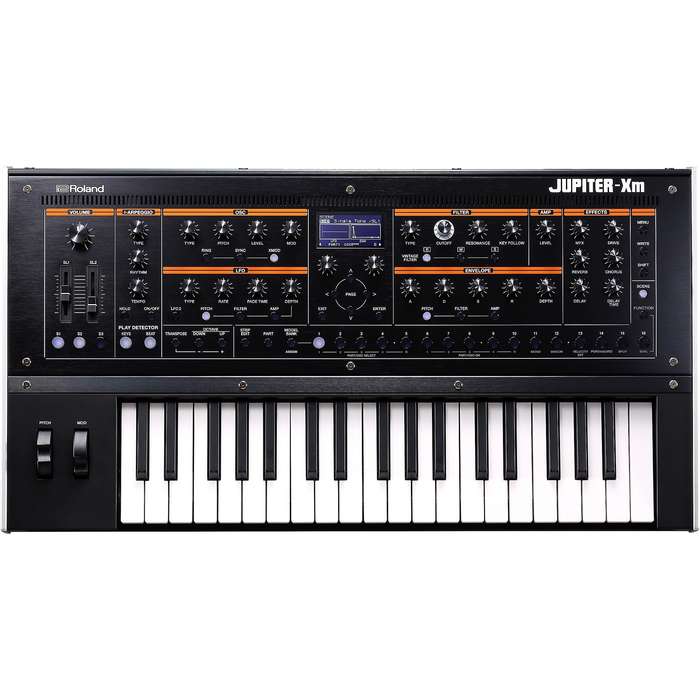

Roland JUPITER-Xm Keyboard Synthesizer

JUPITER-Xm Keyboard Synthesizer Specifications:

Keyboard

• 37 Keys (compact type with velocity)

Sound Generator

• ZEN-Core

Parts

• 5 parts (Play part: 4, Rhythm part: 1)

Tones

• Preset tone: over 4,000
• User tone: 256
• Drum Kit: over 90

Scene

• 256

Effects

• Multi-Effects: 90 types
• Part EQ
• Overdrive
• Reverb: 7 types
• Chorus: 4 types
• Delay: 5 types
• Mic NS / Comp
• Master EQ / Comp

Arpeggiator

• I-ARPEGGIO (Multi parts arpeggator with playing detection)

Arpeggio Parts

• 5 parts

Controllers

• Pitch Bend Wheel
• Modulation Wheel
• Assignable Slider x 2
• Assignable Switch x 3

Bluetooth

• Ver 4.2
• Profile Support: A2DP(Audio), GATT(MIDI over Bluetooth Low Energy)
• Codec: SBC (Support to the content protection of the SCMS-T method)

Display

• Graphic LCD 128 x 64 dots

Speaker Amplifier Power Output

• 4 W x 2

Speakers

• Full range (3.5 x 8 cm) x 2
• Tweeter 2 cm x 2

Connectors

• HEADPHONES jack: Stereo miniature phone type (front), Stereo 1/4-inch phone type (rear)
• MAIN OUT jacks (L/MONO, R): 1/4-inch phone type
• MAIN OUT jacks (L, R): XLR type
• MIC INPUT jack: 1/4 inch phone type/XLR type
• AUX INPUT jack: Stereo miniature phone type
• HOLD PEDAL jack
• CONTROL PEDAL jack
• MIDI connectors (IN, OUT)
• USB COMPUTER port (AUDIO/MIDI)
• USB MEMORY port
• DC IN jack

External Memory

• USB Flash drive (sold separately)

Power Supply

• DC 12 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8

Current Draw

• 1,500 mA

Dimensions

• 576 (W) x 308 (D) x 93 (H) mm
• 22-11/16 (W) x 12-1/8 (D) x 3-11/16 (H) inches

Weight

• 4.4 kg / 9 lbs 12 oz (excluding AC adaptor, Batteeries)

Accessories

• Owner's manual
• Leaflet "USING THE UNIT SAFELY"
• AC adaptor (PSB-5U)
• Power cord

Options (sold separately)

• Pedal Switch: DP series
• Expression Pedal: EV-5
• USB Flash drive (*)
• * Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
