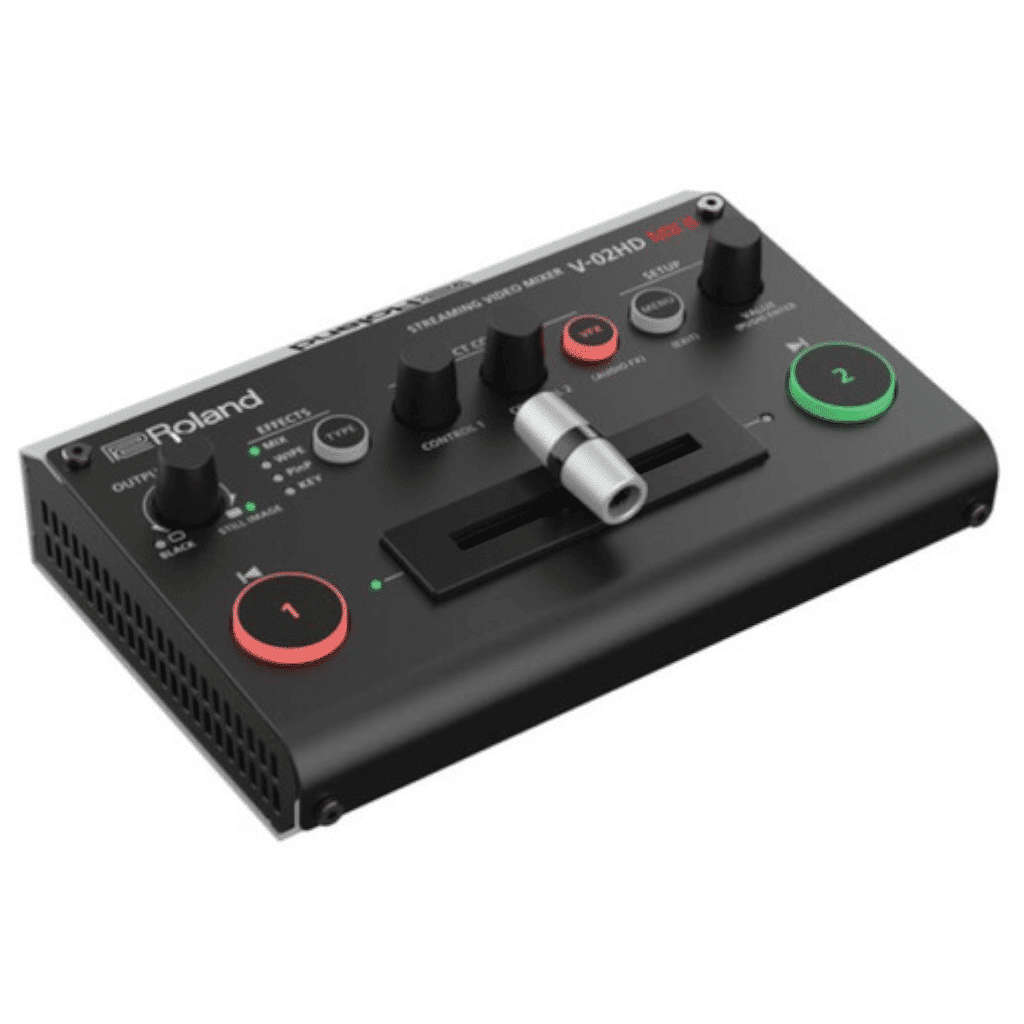

Roland V-02HD MK II Multi-Format Video Mixer with Streaming

• The V-02HD MK II is a single unit that incorporates a simple switcher, a high-quality scaler, an input expander, an audio solution, and an inline video effects/compositor
• It takes the HDMI output from two cameras and has both a preview and program HDMI output
• A preview output enables you to view the menu without the overlay appearing on the program output
• It features a built-in encoder that outputs your program output via the USB Type-C port, allowing you to stream easily from a computer without needing an additional encoder
• Audio from both cameras and external sources can be mixed within the V-02HD MK II and monitored through a dedicated headphone output
• The switched output is embedded in real time and output over HDMI for reliable recording or monitoring
• The switcher operates with 10-bit 4:4:4 processing
• Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions
• You can embed and de-embed audio, both analog and digital
• The V-02HD MK II has built-in three-band EQ and dynamics

Video:

• Transition: Cut, mix (dissolve), wipe (9 types)
• Composition: PiP (square, circle, diamond), key (luminance key, chroma key)
• Visual effects: mosaic, wave, RGB replace, colorpass, negative, colorize, posterize, silhouette, emboss, find edge, monocolor, hue offset, saturation offset, value offset
• Others: Flip horizontal, flip vertical, still image capture, still image playback, output fade (audio/video: white or black), test pattern output

Audio:

• Delay
• High-pass filter
• Compressor
• Noise gate
• Equalizer
• Multiband compressor
• Limiter
• Test tone output

Other Functions:

• Preset memory (8 types)
• Panel lock function
• EDID emulator
• Auto scan
• Auto input detect
