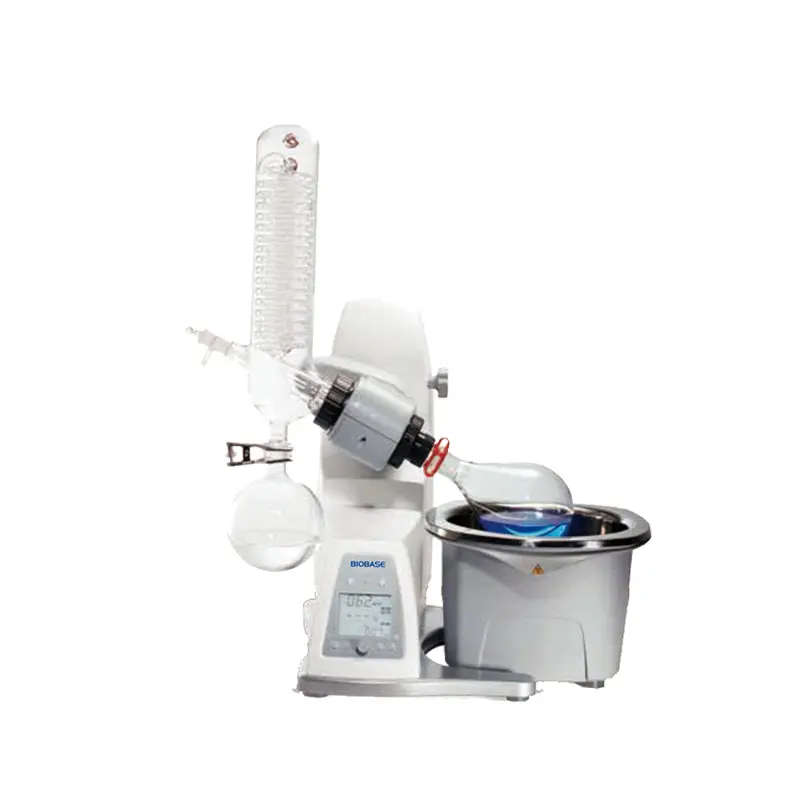

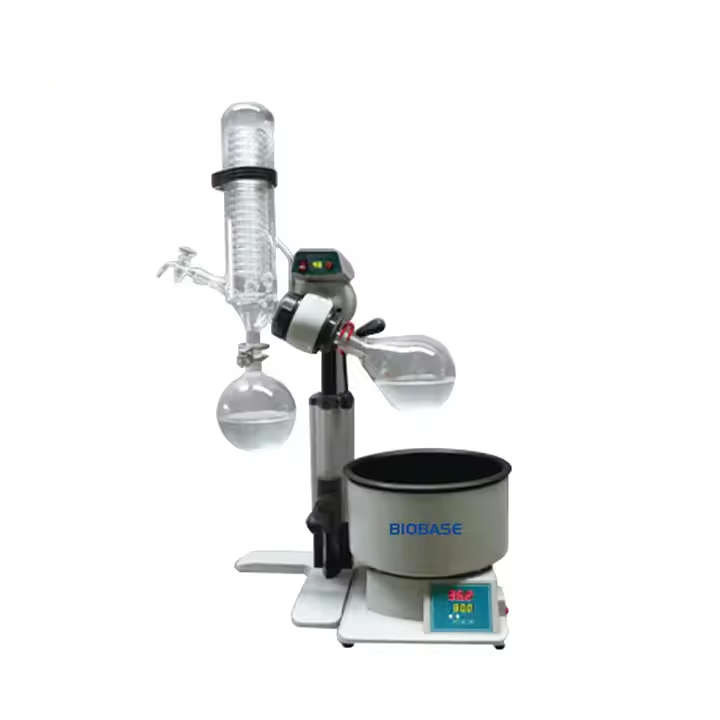

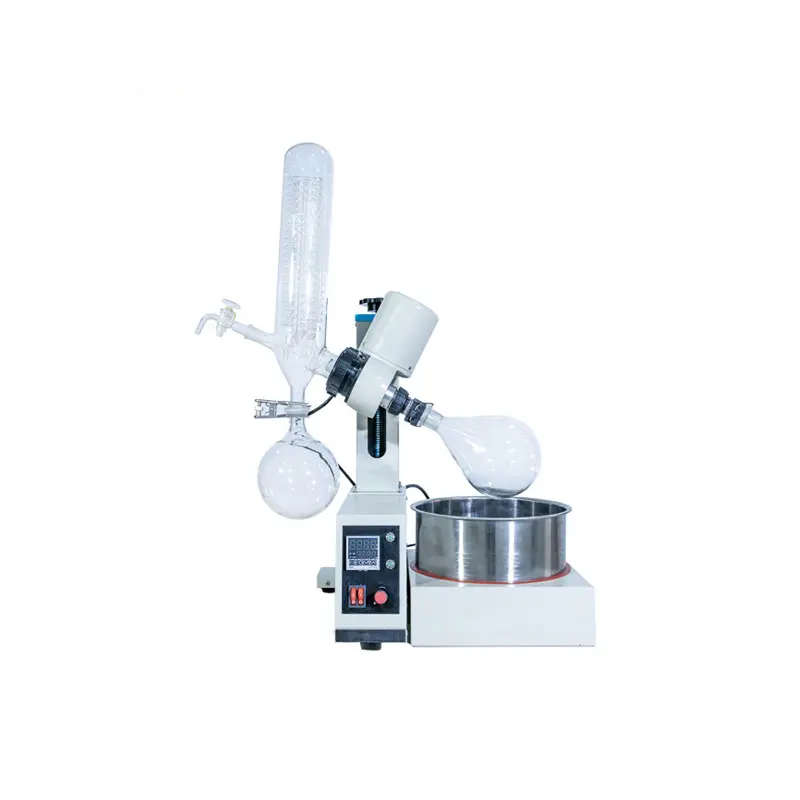

Rotary Evaporator

Rotary Evaporator

In lab settings, rotary evaporators (rotovaps) are used for efficient and gentle solvent removal through evaporation, enabling tasks like sample concentration, purification, and extraction.
They are essential in chemistry, biology, and pharmaceutical research.
Key Uses & Applications:
Solvent Removal:
Rotovaps excel at efficiently removing solvents from samples, particularly those with lower boiling points.
Concentration:
They allow researchers to concentrate samples by evaporating the solvent, increasing the concentration of the solute of interest.
Purification:
Rotary evaporation can be used to purify substances by separating them from unwanted solvents and impurities.
Extraction:
They play a role in extracting and isolating components from complex mixtures like natural products or biofluids.
Drying:
Rotovaps can be used to dry samples by carefully removing the solvent, often in a controlled manner to prevent damage.
Solvent Recovery:
The recovered solvent can be reused, contributing to sustainability and reducing costs.
Analytical Applications:
Rotovaps are used to prepare samples for analysis by reducing their volume and concentrating analytes.
Teaching and educational purposes:
Educational rotary evaporators are used for demonstrating solvent evaporation and other laboratory techniques.
Specific areas of application:
Biofuel research: Used in extracting and purifying biomass components.
Food research: Used to concentrate flavor substances and essences from food samples.
Pharmaceuticals/Biotech: Employed in extraction and purification processes in drug development.
Chemical Synthesis: For drying reaction products and preparing samples for further analysis.

Specification
Model.
Rotary Bottle. 1L(NS 29/32 or NS24/40)
Collecting Bottle. 1L(KS 35/20)
Display. LCD
Rotating Speed 20~280rpm
Temp. Range. RT~180
Temp. Accuracy. ±1
Lift Motor
Stroke Height. 150mm
Timing Range. 1~999 min
Motor DC brushless motor
Power. 1400 W
Rotation. Reversible Direction
Interface. USB
Consumption. 1400w
Power Supply AC110/220V±10%, 50/60Hz
External Size(W*D*H). 465*457*583 mm
Package Size(W*D*H). 640*1100*650 mm
Net Weight. 15 kg
Gross Weight. 40kg
Standard Accessory

Optional Accessory
Vacuum pump, Recirculating chiller
