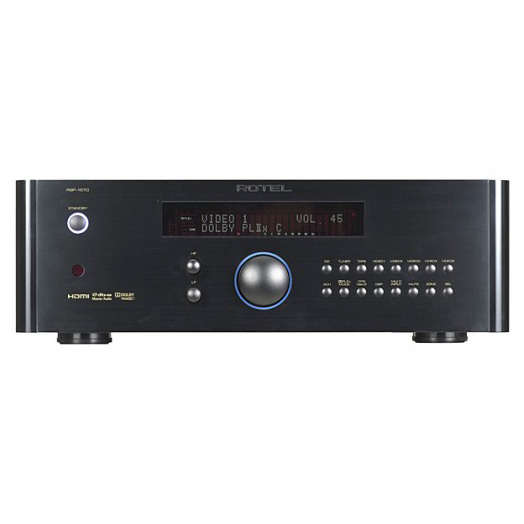

ROTEL RSP-1069 IN THE BOX with manuals pc cable and remote

Category:	SURROUND SOUND PROCESSORS, KEYPAD SYSTEM
Model:	RSP-1069
Title:	7.1 Surround Preamplifier / Processor

The RSP-1069 is Rotel’s most advanced home theater and multizone audio controller yet. Utilizing our Balanced Design Concept, the RSP-1069 is built on a high performance platform, including the Texas Instruments Aureus™ DSP processor and Burr Brown 24 bit/192kHz DACs, along with careful attention to power supply, parts selection and circuit path refinement. The result is class leading audio performance. But there is even more to the RSP-1069. Four HDMI inputs handle complex system requirements. High quality Faroudja DCDi® video processing scales any video source up to 1080p resolution as required. In addition, the RSP-1069 adds three additional zones of audio and composite video with fixed or variable outputs and discrete IR and RS-232 command sets. When combined with a Rotel multi-zone amplifier and Rotel RKP keypads, the RSP-1069 provides a flexible whole house audio solution with unrivaled sound quality. Whatever your pleasure—consummate stereo performance, home theater action or whole house music—you need look no further than the RSP-1069.



Model	RSP-1069
Total Harmonic Distortion	<0.008 %
Intermodulation Distortion (60 Hz:7 kHz)	<0.008 %
Frequency Response Analog Bypass Digital Input	- 10 Hz – 120 kHz, ±3dB (analog bypass) 10 Hz – 95 kHz, ±3dB (digital input)
Signal to Noise Ratio (IHF A-weighted) Analog Bypass Digital Input 0 dBFs (Dolby Digital, dts)	- 95 dB 92 dB
Input Sensitivity/Impedance	Line Level: 200 mV/100K ohms
Contour (LF / HF )	± 6 dB at 50 Hz / 15 KHz
Preamp Output Level/Impedance	1.2 V (200 mV Input)
Decodable Digital Input Signal	Dolby Digital, Dolby Digital EX, Dolby Prologic IIx, DTS, DTS_ES, DTS96/24, LPCM (up to 192K), HDCD, MP3, [DVD-A, HDMI HD only]
Frequency Response	3 Hz – 10 MHz, ± 3dB (Composite, S-Video) 3 Hz – 100 MHz, ± 3dB (Component Video)
Signal to Noise Ratio	45 dB
Input Impedance	75 ohms
Output Impedance	75 ohms
Output Level	1 volt
HDMI Input/Output:	Version 1.1
Video Format Resolution:	480p/576p, 720p, 1080i, [1080p HDMI only]
Power Consumption	80 watts, Standby 4.7 watts
Power Requirements (AC)	120 volts, 60Hz (USA version) 230 volts, 50Hz (CE version)
Weight	9.0 kg
Dimensions (W x H x D):	432 x 122 x 341 mm
Front Panel Height (feet removed/for rack mount)	109 mm
