ROUTER HUWAWEI B113-853 4G SIM

HUAWEI 4G CPE Router B311B-853

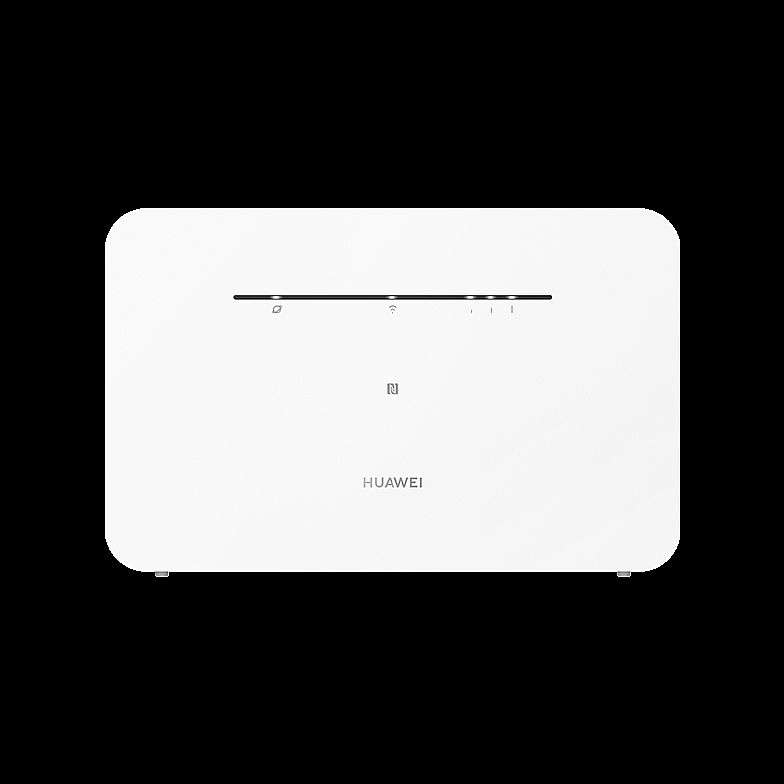

Huawei B311B-853 4G CPE Router White Handset
The HUAWEI LTE CPE B311B-853is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. Moreover, It enables users to access the Internet.

The B311B-853supports 3GPP Release 9with LTE CAT4.The supported service functions are as follows:

Data service up to FDD LTEDL 150Mbpsand UL 50Mbps, TDD LTEDL 110Mbps and UL 10Mbps
Working band: LTE: B1/B3/B5/B8/B34/B38/B39/B40(2300~2390MHz)/B41(2545~2655MHz), UMTS: B1/B8
Wi-Fi: 802.11 b/g/nand 802.11n2.4GHz Wi-Fi2x2 MIMO up to 300Mbps. Maximum Users: 32
1 GE port for LAN/WAN, 3GE ports for LAN
Routing mode: NAT enable (Default)/ Bridge mode (Customized support required)
VPN client service (L2TP, PPTP)
Customer management via WebUI or HUAWEI AI Life APP
Huawei Firmware Over the Air (HOTA)
Supports dual network dual pass and game speed acceleration
Hardware Specifications
Technical standard
WAN 3GPP Release 9
LAN IEEE 802.3/802.3u
Wi-Fi IEEE 802.11b/g/n
Working band/frequency
LTE B1/B3/B5/B8/B34/B38/B39/B40(2300~2390MHz)/B41(2545~2655MHz)
UMTS B1/B8
Wi-Fi 2.422 GHz — 2.482 GHz
External port
One power adapter port
One LAN/WAN port (RJ45), three LAN ports (RJ45)
One SIM card slot (nano-SIM)
Antennas
Built-in LTE/UMTS primary antenna
UMTS secondary antenna
Built-in Wi-Fi 2*2 2.4 GHz antenna
Built-in NFC antenna
LED Indicators
One Network status indicator
Steady on white: Connected to an LTE/UMTS/carrier broadband/ dual network dual pass enabled.
Steady on red: Internet access wizard not completed/SIM card not detected/No network available.
One Wi-Fi indicator
Steady on white: Wi-Fi is enabled.
Flash slowly white: A pairable HiLink device is detected.
Flash quickly white: HiLink pairing is in progress/WPS connection is in progress.
Off: Wi-Fi is disabled.

Three of signal strength indicators
More signal bars indicate a stronger signal.
Buttons
One Power ON/OFF switch
One H button
The Wi-Fi indicator flashes slowly when the router detects a HiLink device. Press the H button to connect the HiLink device to the router's Wi-Fi.
When the Wi-Fi indicator is steady on, press the H button to enable WPS.
One Reset button

Power consumption
< 12 W
AC/DC power supply
AC (input): 200V-240V 50Hz/60Hz
DC (output): 12V/1A
Dimensions (Maximum)
198 mm (Width) x 125 mm (High) x 25 mm (Deep)
Weight
About 246 g (excluding the power adapter)
Temperature
Working temperature: 0°C to 40°C
Storage temperature: -20°C to +70°C
Humidity
5% — 95% (non-condensing)
Certification/Compliance
3C
China Type Approval
SRRC Type Approval
RoHS
Wi-Fi
