ROXTONE - CABLE ROUND 2-CORE OVERALL SCREEN 3.3MM OD 200M

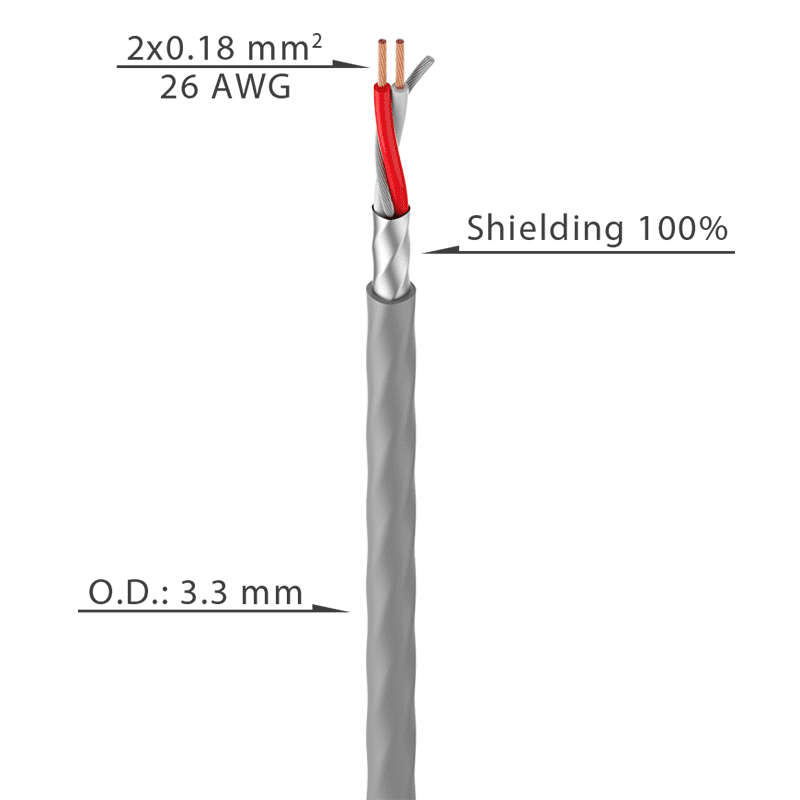

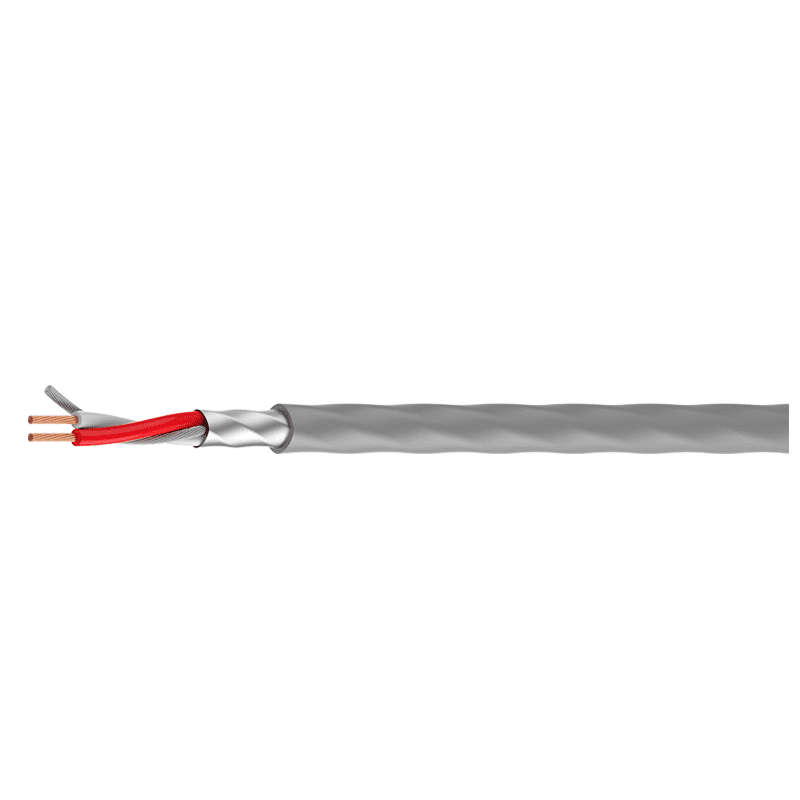

A balanced patch cable designed for installation, boasting a 26AWG construction and 2 x 0.18 mm², features a very thin PVC jacket with a diameter of 3.3 mm, ideal for cabinet wiring to optimize space, coupled with durability ensured by a robust PVC jacket, and enhanced electrical performance and tensile strength thanks to special LLDPE insulation. Moreover, its exceptional shielding, provided by AL fleece and drain wire, ensures optimal signal integrity, while its highly flexible nature, facilitated by professional stranded wire technology, caters to diverse installation needs. Primarily suited for internal rack wiring, as well as audio and HiFi components, it comes in two sleek colors: Grey and Black.

Jacket, diameter : PVC 3.3 mm

AWG : 26

No. of inner conductors : 2 x 0.18 mm²

Copper strand per conductor : 16 x 0.12 mm

Conductor insulation : LLDPE 1.20 mm

Drain Wire : 25 x 0.12 mm Tin copper

Shielding : AL fleece

Shielding factor : 100%

Temperature range : min. -20°C

Temperature range : max. +70°C

Packaging : 100/300 m roll
