RS PRO Inductive Barrel-Style Proximity Sensor, M8 x 1, 4 mm Detection, PNP Output, 1030 Vdc, IP68

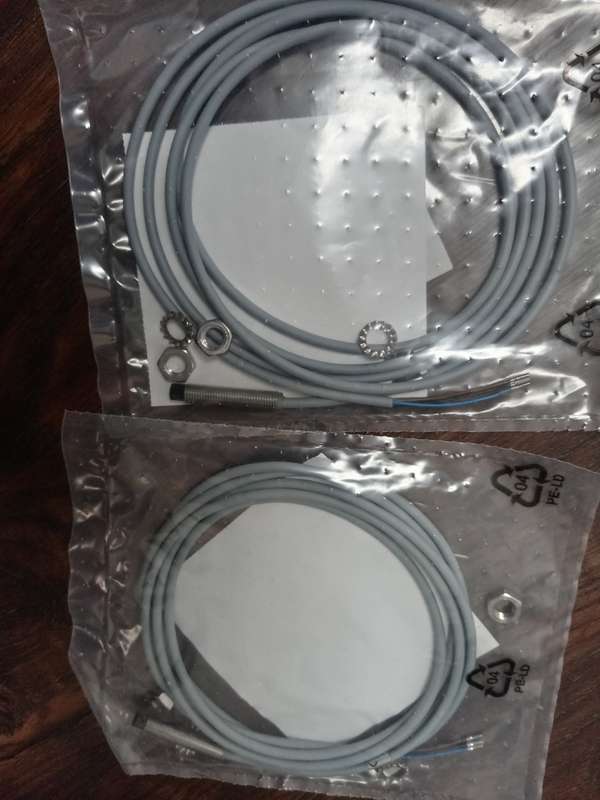

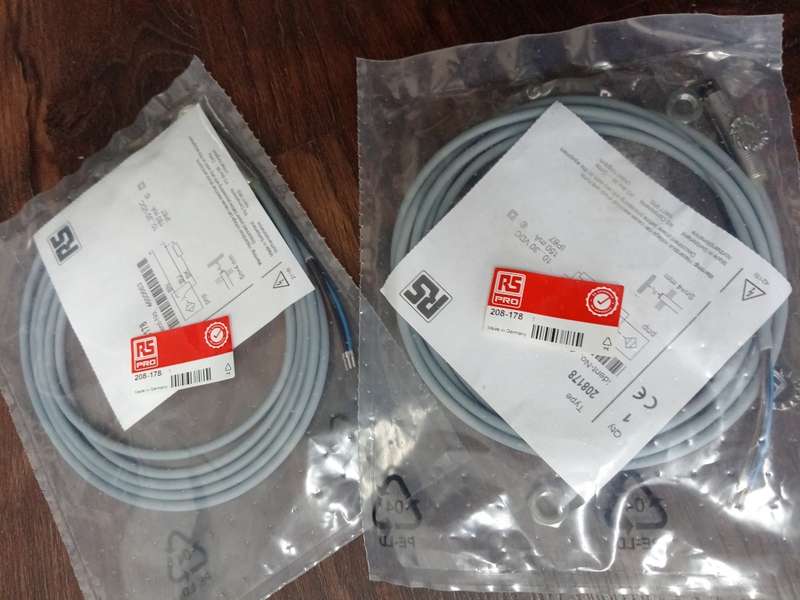

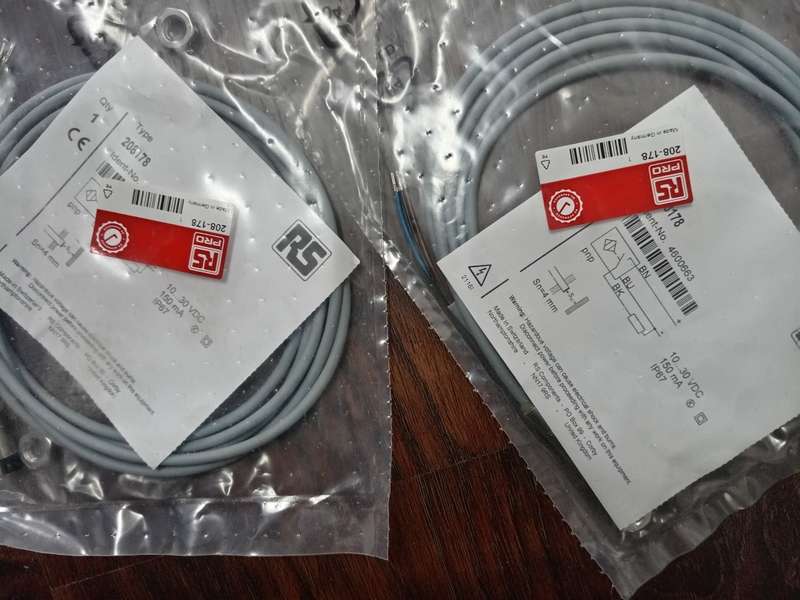

This unit is still sealed in the original packaging. Therefore second hand but still brand new.

Two units available, R950 each buy now price, or pick up at a discount on auction.

Full spec and new sale price can be found here:

https://za.rs-online.com/web/p/proximity-sensors/0208178

RS PRO Inductive Proximity Sensor, Barrel, PNP Output, 4 mm Detection, M8 x 1, IP68, Cable Terminal

Use this inductive proximity sensor from RS PRO if you need to detect the presence of delicate metal objects without any physical contact. It can detect both ferrous and non-ferrous metals for increased versatility.

Thanks to the body's stainless steel construction, it's durable and resistant to corrosion for use in harsh industrial environments. You can use it in hot operating conditions as it has a high thermal resistance. It's also dust-tight and water-resistant thanks to its IP68 (Ingress Protection) rating.

This type of sensor is frequently used when you need to detect an object within a specific range, such as in process control or agricultural applications. It's suitable for use in food processing tasks.

Features and Benefits:

Barrel body

Detection range of 4 mm

Stainless steel housing

Ingress Protection (IP) rating of IP68

Length of 40 mm

Maximum voltage of 30 V DC

Operating temperature range of -30ºC to +85ºC

Maximum switching frequency of 2 kHz

Non-flush mounting type

PNP (positive, negative, positive) output type

Reverse polarity protection

Inductive sensor technology

Short circuit overload protection

Supply voltage of 10 to 30 V DC

Switching current of 150 mA (milliamperes)

Cable terminal type

Thread size of M8 x 1

Attributes:

Sensor Technology Inductive

Body Style Barrel

Thread Size M8 x 1

Output Type PNP

Detection Range 4 mm

Terminal Type Cable

IP Rating IP68

Supply Voltage 10 30 V dc

Length 40mm

Maximum DC Voltage 30V

Mounting Type Non-Flush

Switching Current 150 mA

Maximum Switching Frequency 2kHz

Maximum Operating Temperature +85°C

Housing Material Stainless Steel

Reverse Polarity Protection Yes

Short Circuit Overload Protection Yes

Minimum Operating Temperature -30°C
