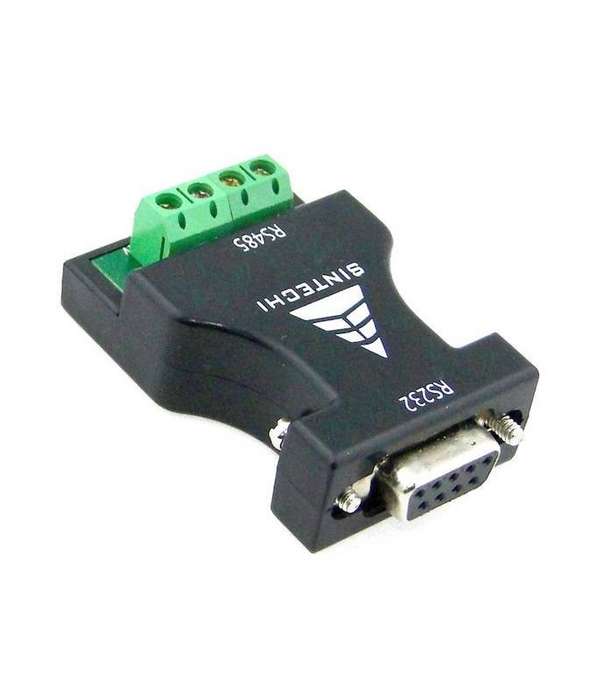

RS232 to RS485 Converter (DB9 Connector)

RS232 to RS485 Converter (DB9 Connector)

New 10 available
R145.48
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
INT-00098
Bob Shop ID
650264915

Description:

This is the go-to converter for signal conversion.
This Converter allows you to seemlessly converter your signal for RS485 to RS232 and vice versa.

The RS232 side of this connector is a standard female DB9 connector.
The RS485 side exists as 4 screw terminals.(485+, 485-,GND, 5 - 12V)

Specifications:

- Compatibility: EIA/TIA RS232C standard and RS485 standard
- Interface RS232 side: DB9 female connector.
- Interface RS485 side: 4 screw terminals
- Transmission rate: 300 - 115200bps
- Transmission distance: RS485 max. 1200m, RS232 side max. 5m
- Working mode: asynchronous, half-duplex, differential transmission.
- Working environment: -20 ~ 70C, relative humidity 5% - 95%
- Mechanical dimensions: 95mm x 33mm x 17mm

Documentation:

User Guide
