RS232 To RS485 Convertor UT-201 DB9 Female Male Connector Transceiver - 0.11kg

Description :

RS232 To RS485 Convertor UT-201 DB9 Female Male Connector Transceiver

This Product called RS232 to RS485 Transceiver is compatible with EIA/TIA RS232 & RS485 standard,which has built-in Zero delay automatic reception and delivery converter,and the only specified I/O circut CAN control the digital data direction instead of handshaking signal(such as RTS,DTR).

Specification :

Compatible with EIA/TIA RS232 & RS485 standard.
Interface RS232 side: DB9 female connector.
Interface RS485 side: DB9 male connector with optional terminal board.
Working mode: asynchronous, half-duplex, differential transmission.
Transmission media: common wire, double wire or UTP or Shielding Line.
Transmission rate: 300 – 115200bps, which is capable of applying between host computers,
host computer and its external equipments and forms point to point, point to multi-points network.
Transmission distance: RS485 max. 1200m, RS232 side max. 5m.
Telecom munication agreement: Transparent.

Package Included :

1 x RS232 To RS485 Convertor
1 x SUB D9 connector board

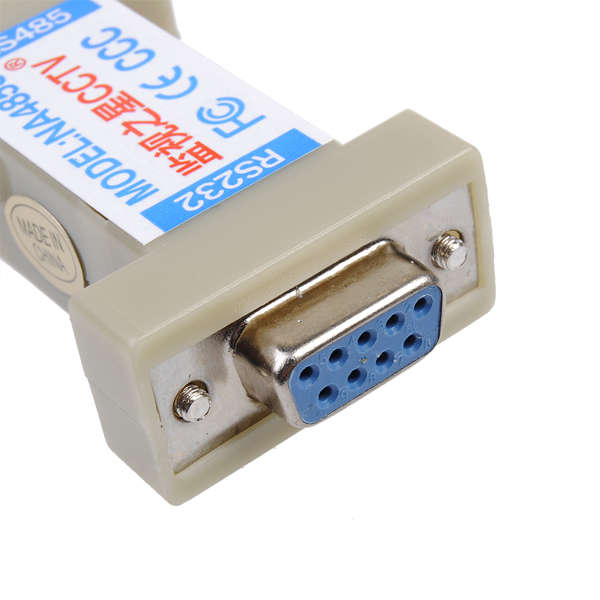

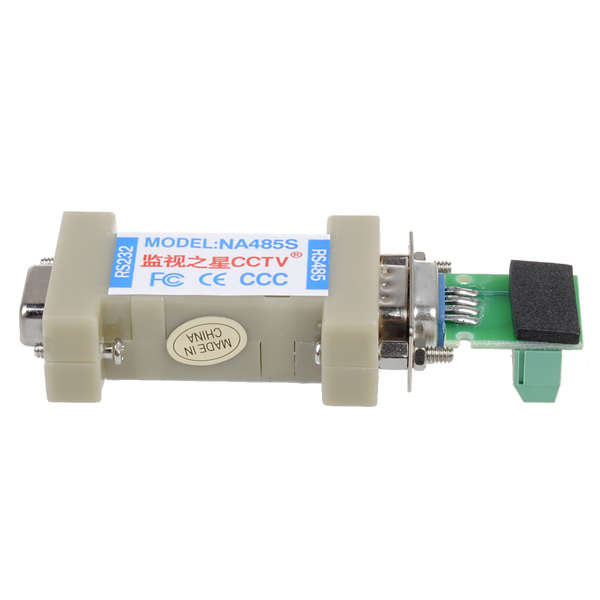

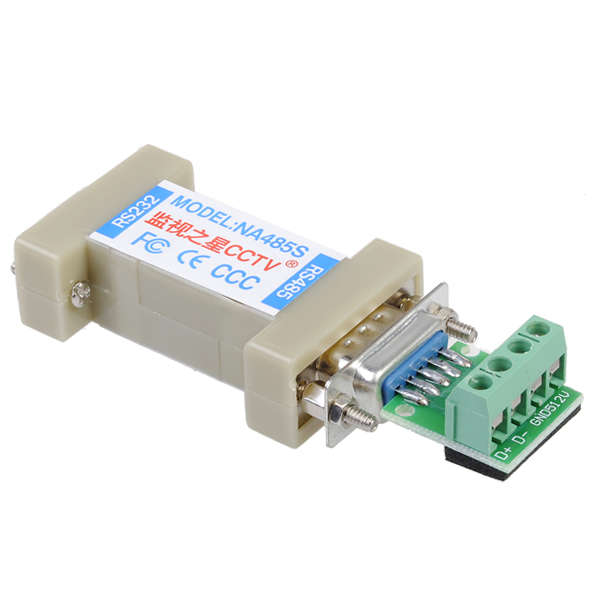

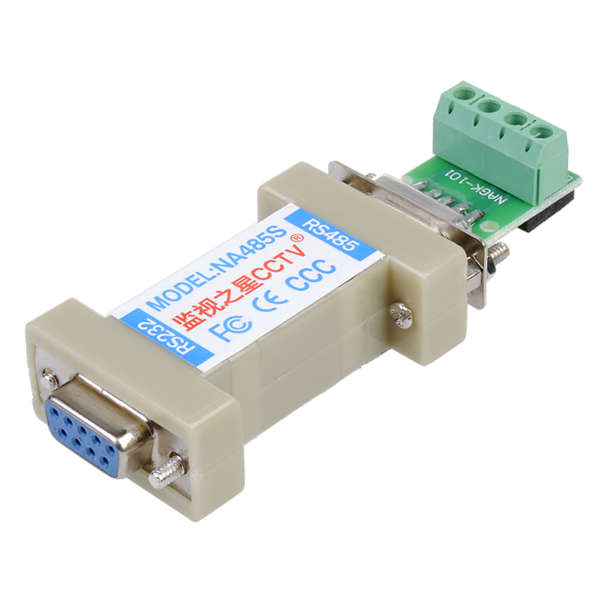

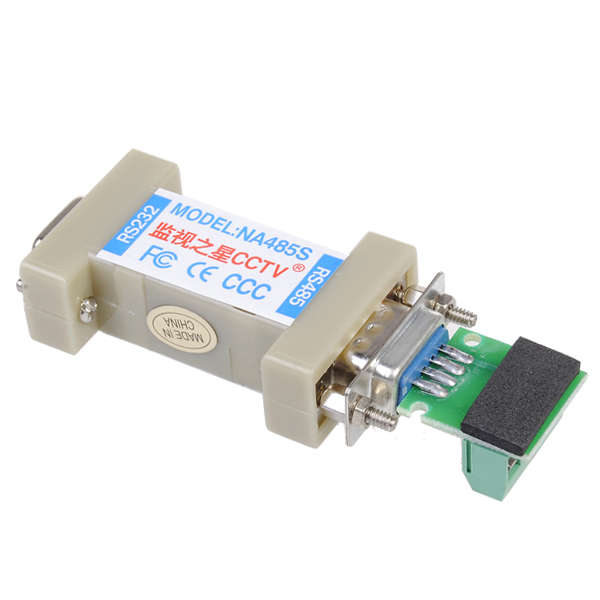

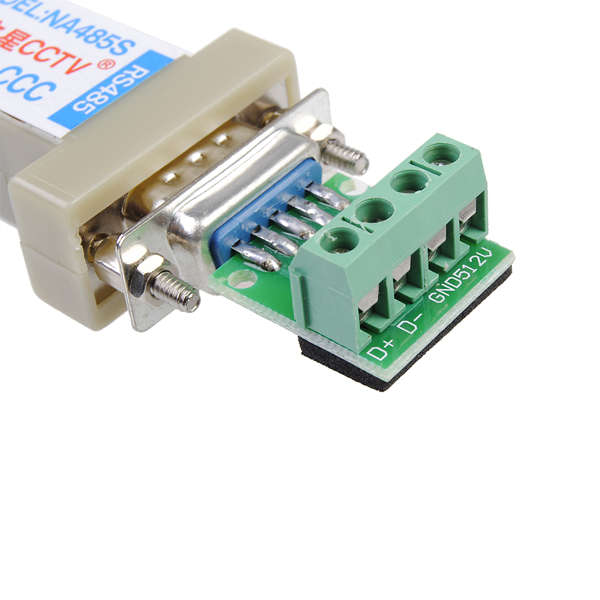

Details pictures :
