RS485 & CAN Shield Expansion Board for Raspberry Pi 4 Model B/3B+/3B/2B/Zero/Zero W

Overview:

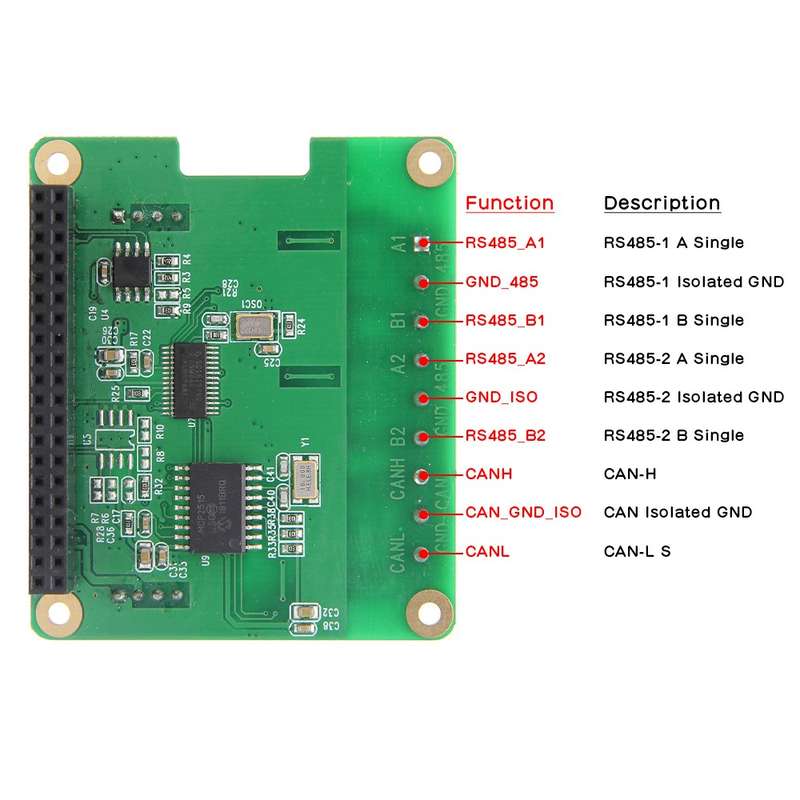

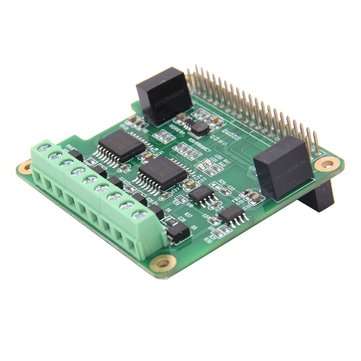

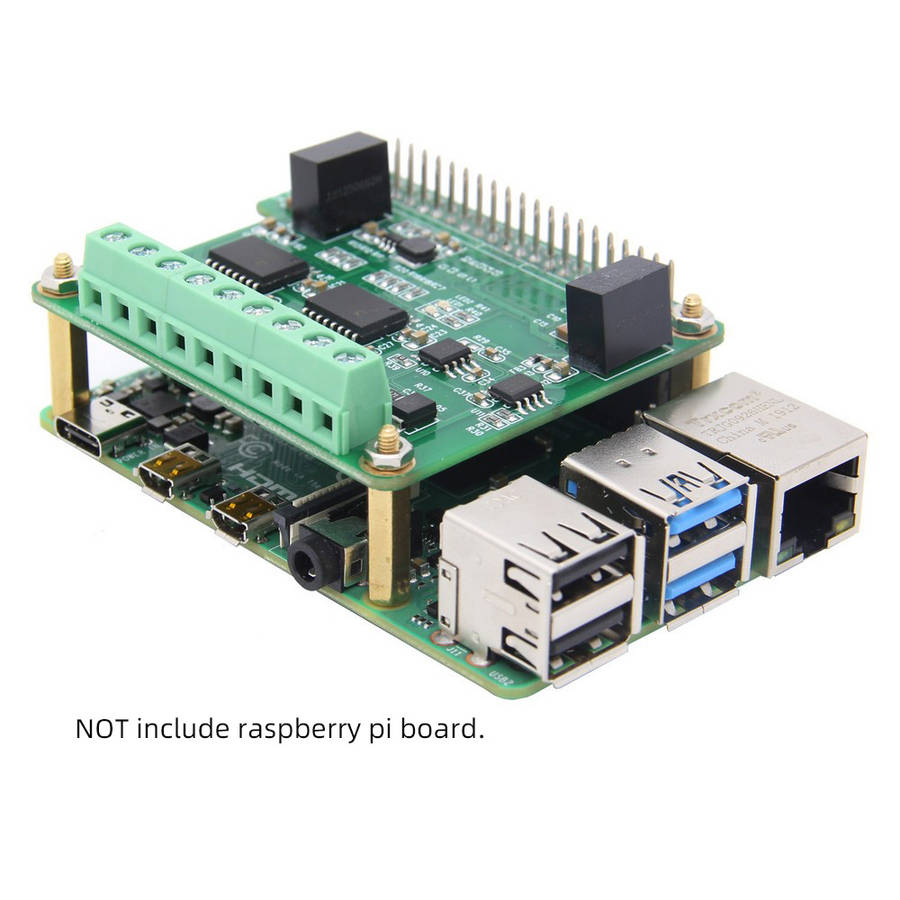

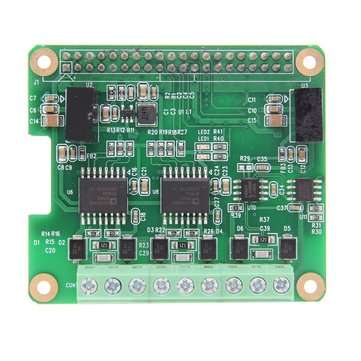

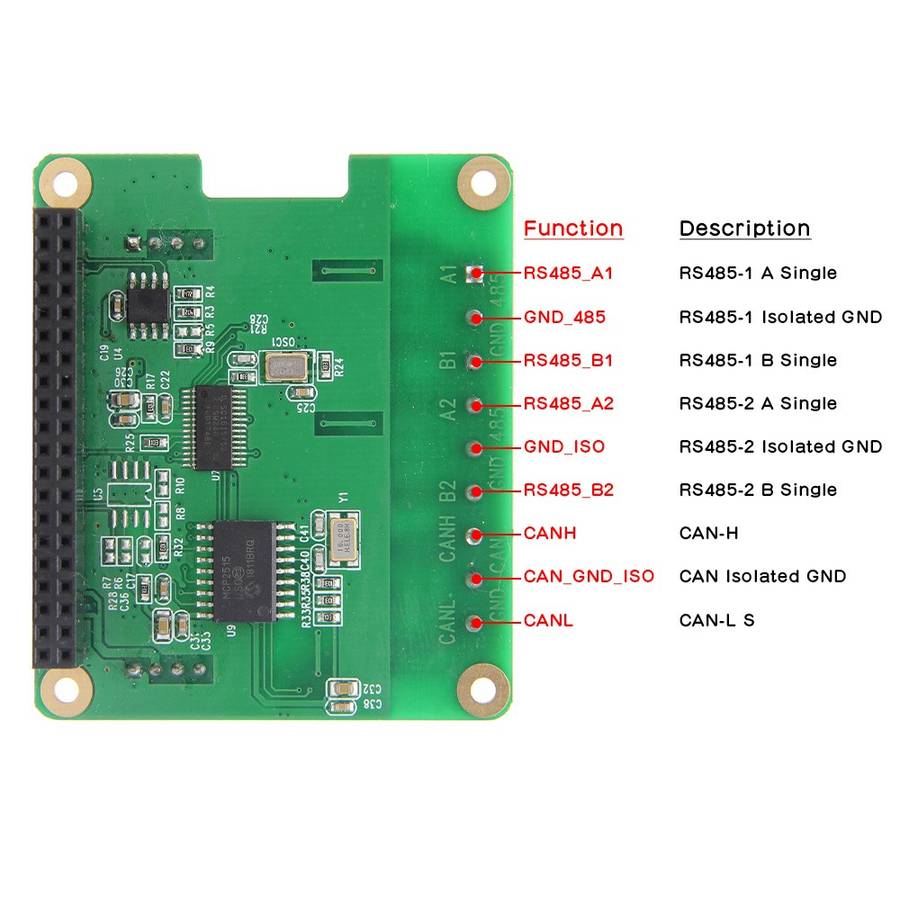

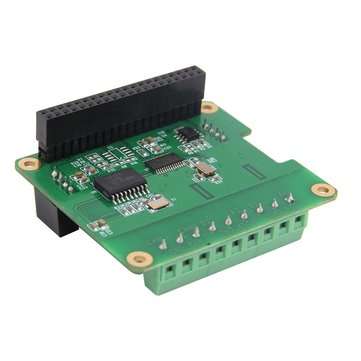

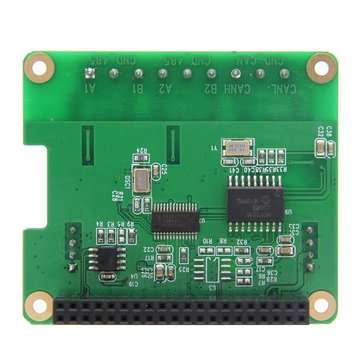

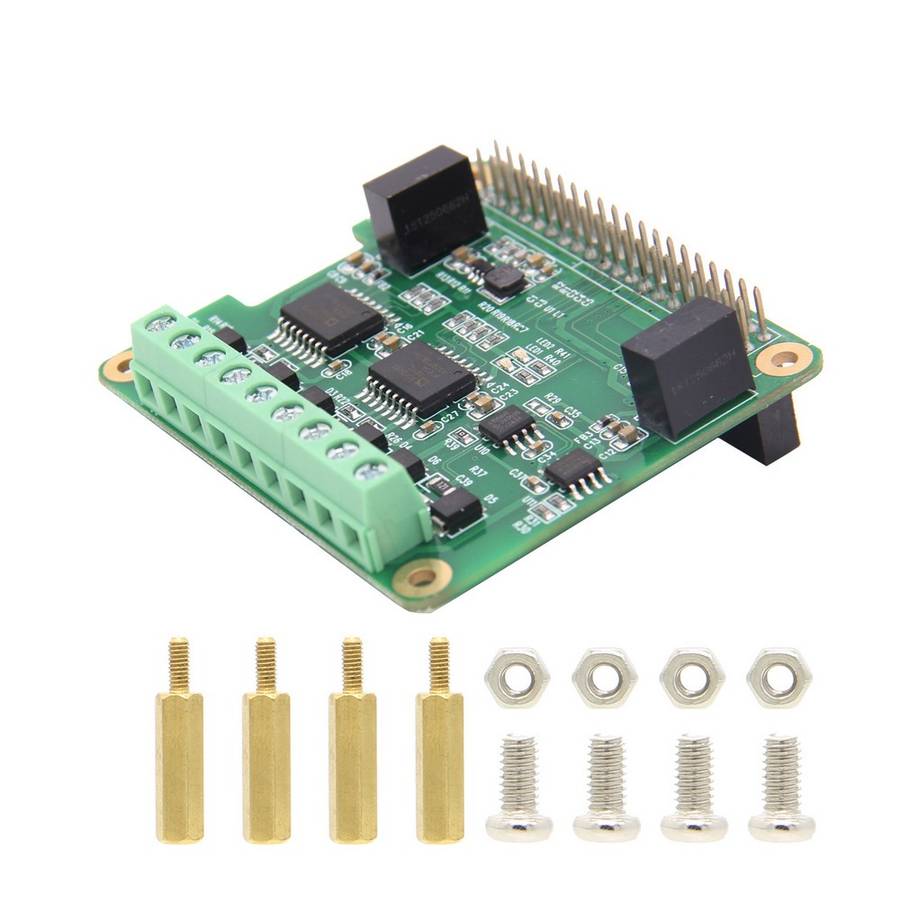

RS485&CAN Shield is an industrial communication module for Raspberry Pi, there are on board 2*RS485 Bus and 1*CAN Bus communication interface via SPI interface.

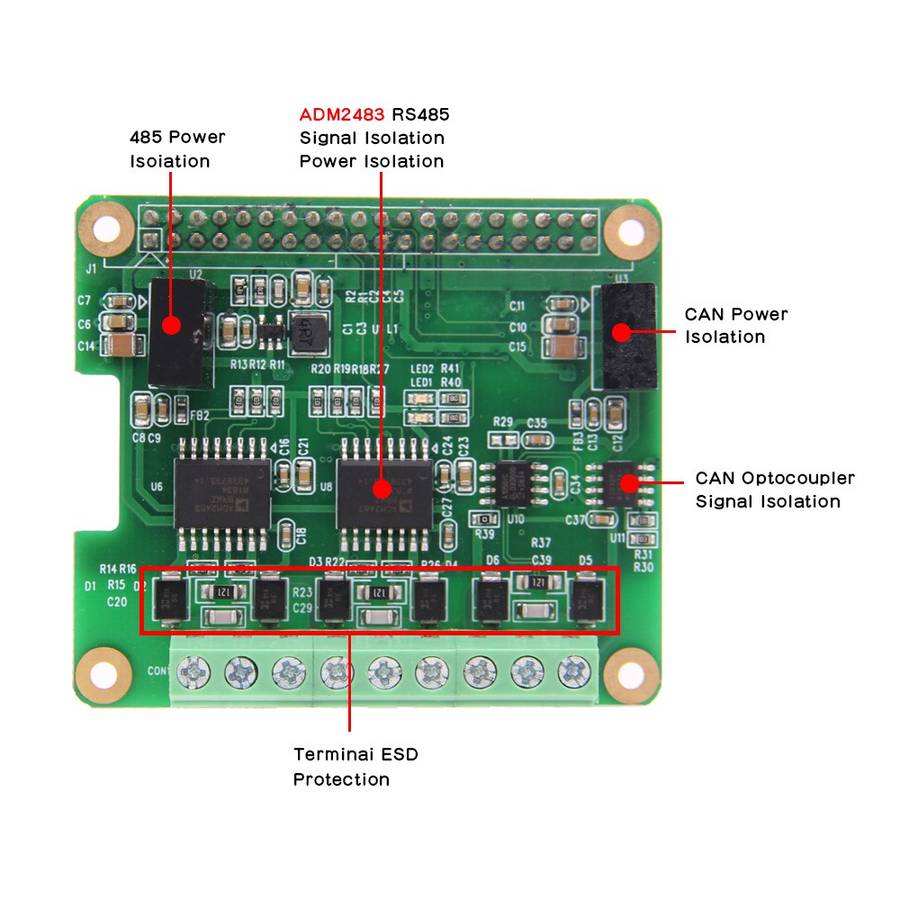

CAN bus and RS485 bus powered through separated isolation power module, signal between the transceiver and the controller is isolated , ESD protection for the communication port, ensure your raspberry pi can be used in more strictly industrial scene.

Features:

Compatible with Raspberry Pi 4 Model B/3B+/3B/2B/Zero/Zero W.
Only a small amount of GPIO are used and the rest pins allow to work for other expansion function. please refer to
Power supply and signal isolation, Build-in surge and ESD protection.
CAN function, onboard CAN controller MCP2515 via SPI interface, onboard high speed CAN transceiver, onboard digital isolation ADUM1201BRZ, Communication Rates 20Kbps-1Mpbs can be programmed arbitrarily.
RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard SPI to RS485 SC16IS1752. Electrical data isolation ADM2483.
On board individual 120 Ohm terminal resistance, Impedance matching and guarantee the ability to drive.

Packing List:

1 x Shield
4 x F/M Spacer 2.5*16+6
4 x Screw 2.5*6
