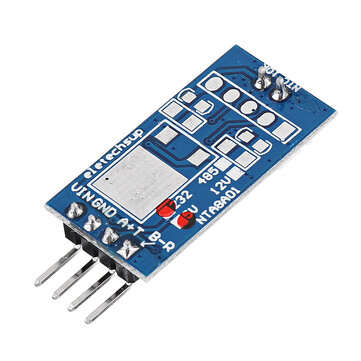

RS485 TTL RS232 Temperature Sensor Converter Module for 10K 3950 NTC Thermistor... (VERSION1: 5VTTL)

SELECTED OPTION:
VERSION1: 5VTTL

Specifications: ? - Working voltage: 5V version: DC 3.7-5.5V; 12V version: 6-25V - Working current: 8-13mA? - MODBUS RTU protocol, 03 read command, 06 write command.? - Serial port baud rate: 9600 (default), N, 8, 1 - By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)? - Adapted sensor: B3950 10K 1% NTC thermistor Resistor? - Temperature measurement range (using our NTC sensor): -20 ?ﾣ C to +125 ?ﾣ C.? - Temperature measurement accuracy (using our NTC sensor): 1%.? - Size: 30 x 15 x 6MM ?? NTC Sensor Specifications: ?? Product Name: 5*25mmNTC Waterproof Probe Total length : 50CM Resistance value: 10K Resistance accuracy: ±1% Resistance B value: 3950 ± 1% Temperature range: -20 ?ﾣ C -125a?? Wire size: 2651 26# parallel line temperature 105 ?ﾣC Plug model: XH2.54-2P NTC Probe: A version without mounting holes, B version with mounting holes (4MM/M4) ?? Application: ? PLC control system?? a??NTC thermistor sensor Thermostatic Controls Industrial Systems Thermometers Thermally Sensitive Systems Indoor and outdoor temperature measurement Temperature in vegetable garden Weather forecasting, and monitoring Temperature in Computer Room Warehouse temperature? ? Package Included: ? 1 x RS485 TTL RS232 Temperature Sensor Converter Module?
