RUIJIE 6 PORT POE SWITCH – RG-ES106F-P 100MBPS

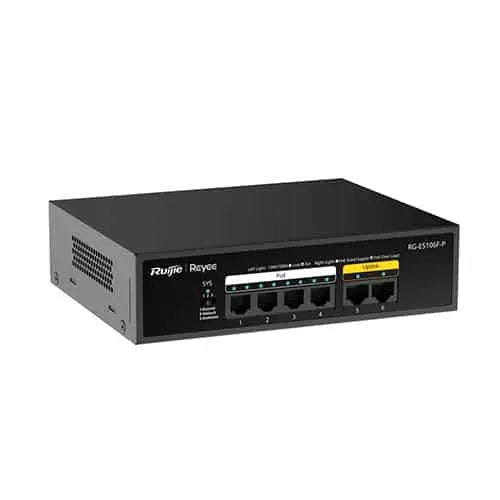

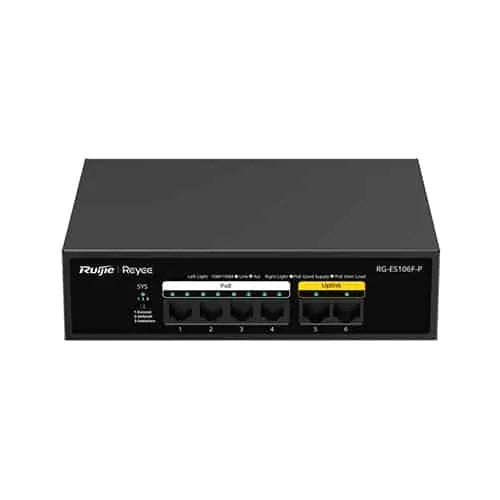

Ruijie Reyee RGES106FP 6Port 100Mbps Unmanaged PoE Switch

The Reyee RGES106FP is a plugandplay PoE switch ideal for CCTV setups, small offices, or retail environments. With four 802.3af/at PoE+ ports and two additional uplink ports, it provides up to 54W total PoE power. This fanless switch supports intelligent PoE features and is visible through Ruijie's cloud platform—perfect for streamlined network expansion without complex configuration.

Key Features & Specifications

Ports: 6 × RJ45 10/100Mbps (4 PoE+ downlink, 2 uplink)

PoE Power: PoE+ ports (802.3af/at) deliver up to 30W per port — 54W total power budget

Performance: 1.2Gbps switching capacity; 0.89Mpps packet forwarding rate; MAC table supports 2000 entries

PoE Management: Features port isolation, watchdog, PoE extension, and surge protection up to 4kV

Network Visibility: Unmanaged but visible in Ruijie Cloud when paired with a cloud-managed switch

Design: Sturdy metal chassis, fanless operation, auto-sensing ports with MDI/MDIX support

Power & Environment: 100—240VAC input, <54W max consumption, operating temp 0—45°C

Dimensions & Weight: 166×132.6×43mm; 0.96kg (incl. packaging)

What's in the Box

1 × RGES106FP 6Port Unmanaged PoE Switch

1 × Power Adapter

1 × Quick Start Guide / User Manual
