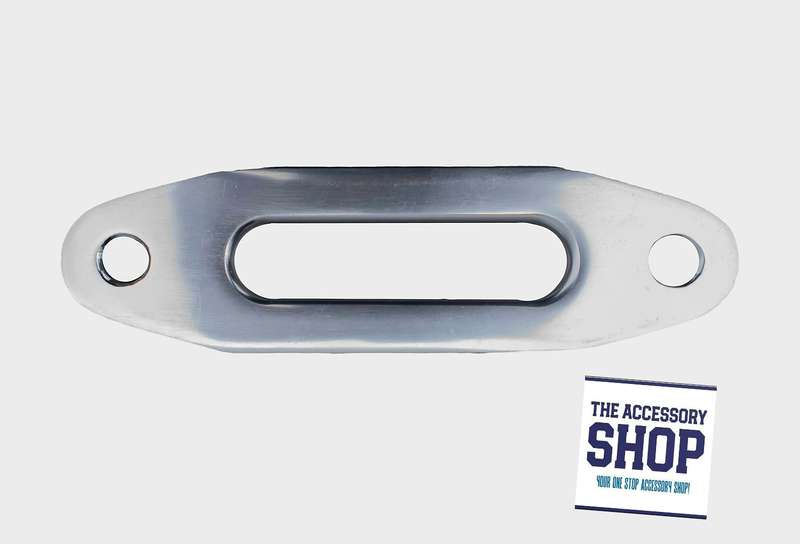

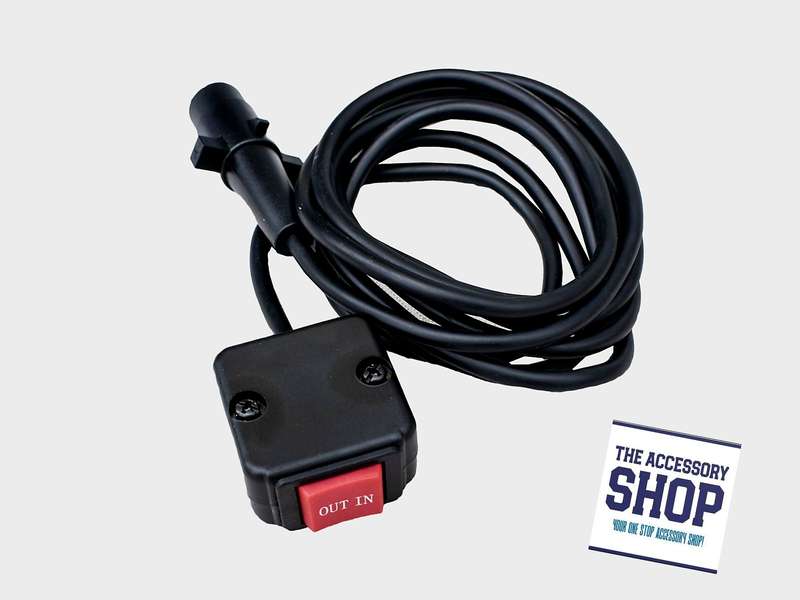

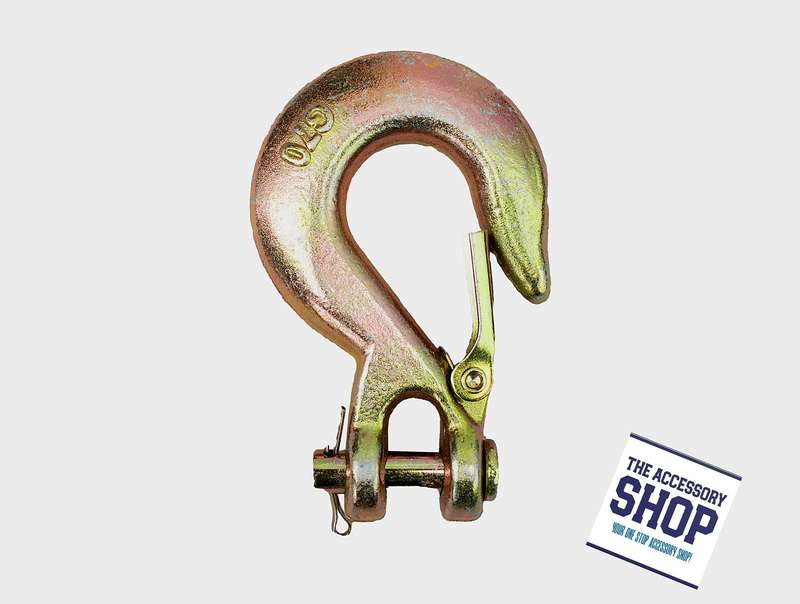

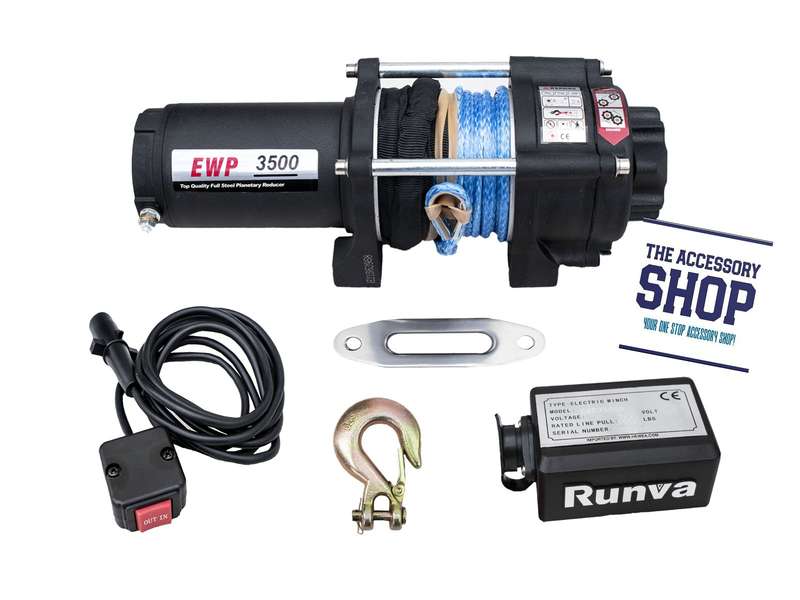

Includes mounting bolts, wired remote, hook pull strap, Swivel Clevis Winch Hook with Safety Clip, Snatch block with hook, and a Roller fairlead / guide
Features;
Full steel gear reducer
Runva patent cam cluth
Self-lock braking action

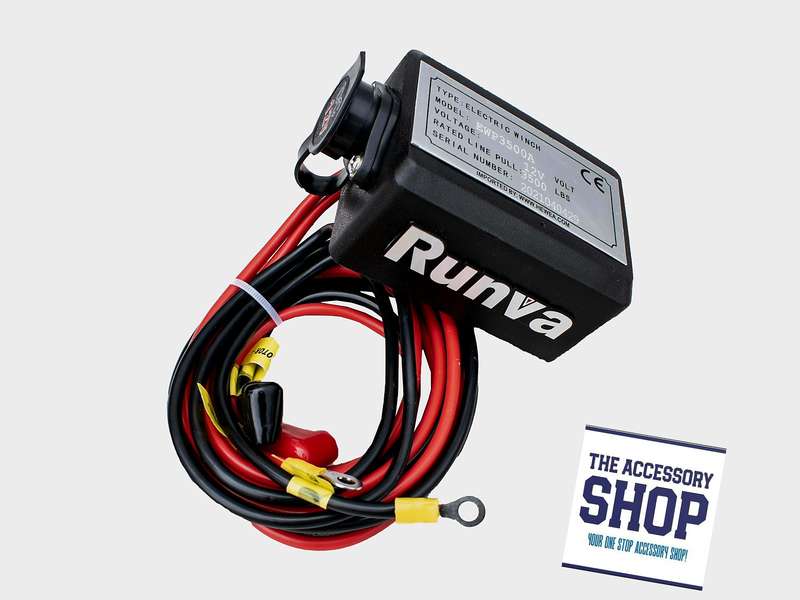

Direct high current control switch
Technical Specifications;

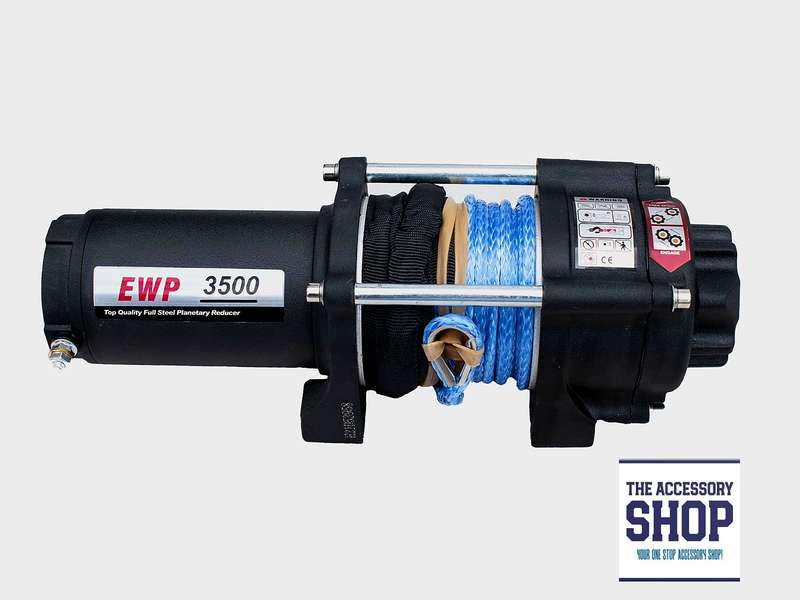

Rated line pull: 3500 lbs (1588 kg)
Motor: Permanent Magnet - 12V (Input: 2.4 kW / 3.2hp; Output: 1.0 kW / 1.3hp)
Gear reduction ratio - 170:1
Drum size (Diameter Length) - 37 80mm
Mounting bolt pattern - 79.5mm 2-M8
Overall dimensions (L W H) 335 116 112mm
Net weight - 10.0kg
