Introduction:

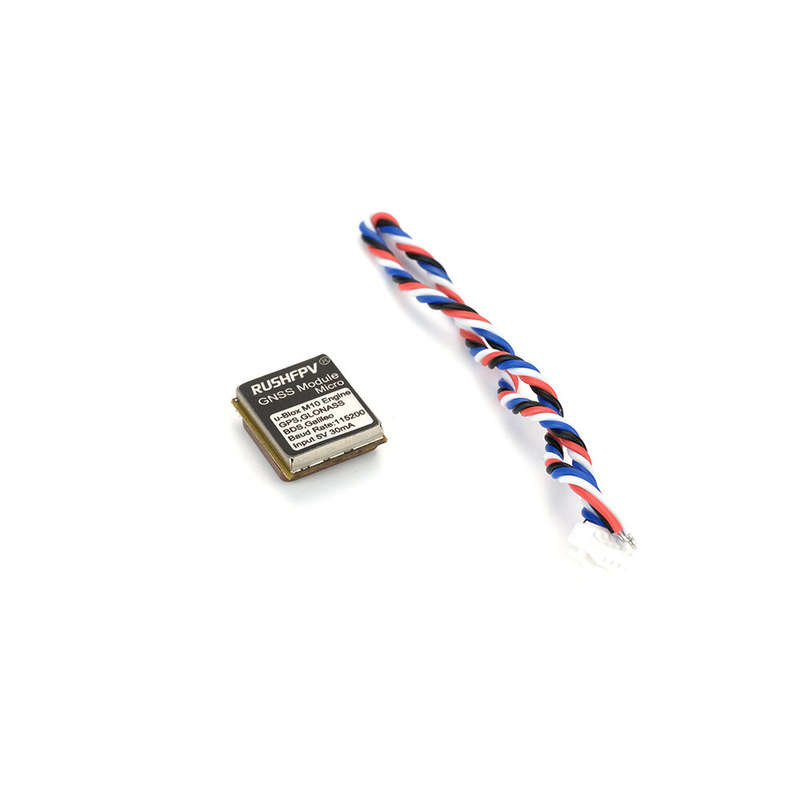

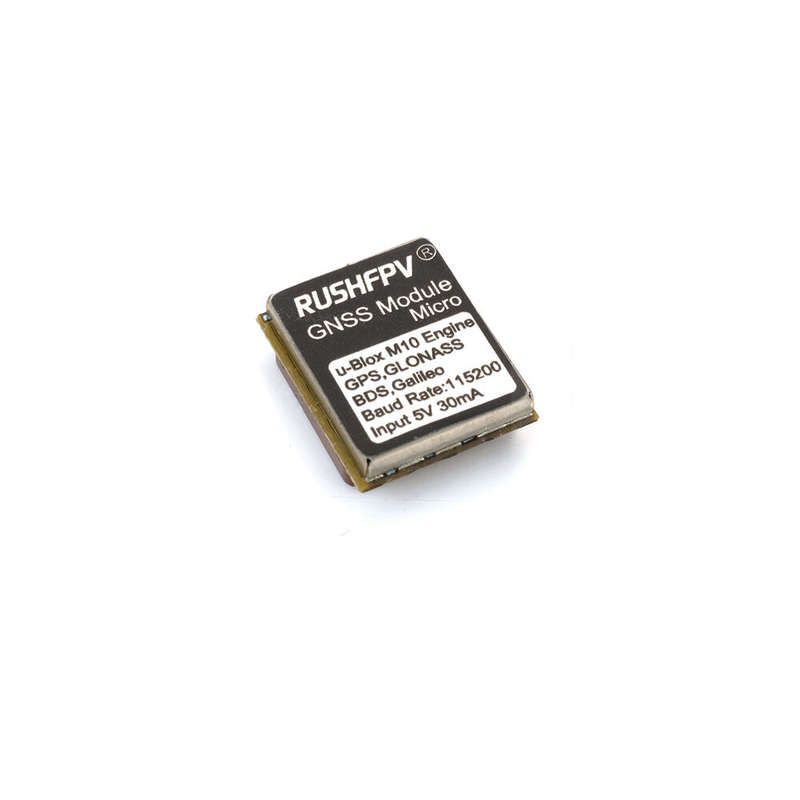

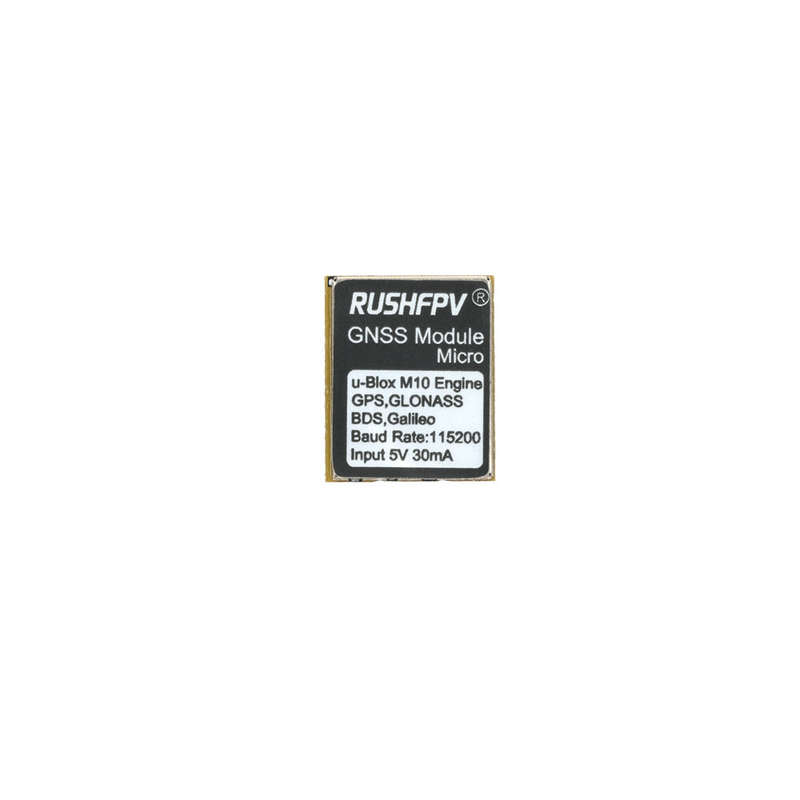

Compact navigation module designed for small FPV UAVs.
The new M10 engine supports GPS, BDS, GLONASS and GALILEO navigation systems and can be connected to three of them at the same time.
Refresh rates up to 10 Hz.
Built-in backup battery and storage, supports fast hot start.
Ceramic antenna with anti-fouling coating and sealed circuitry for reliability and durability.
Parameters:
Receiving bands: GPSL1, GLONASSL1, BDS B1, GALILEOE1, SBAS L1, QZSS L1
Receive channel:72 CH
Receiving Sensitivity:-1 62dBm
Output protocol:UBX
Baud rate:115200dps
Output refresh rate:1HZ-10Hz
Power input:5V30mA
Speed accuracy:0.05m/s
Positioning accuracy:2DACC1.5m
Maximum working height:50,000m
Maximum moving speed:500m/s
Size:12x15x4.8mm
Weight:2.4g
Precautions
Please keep the ceramic antenna without obstruction above, avoid near meta
