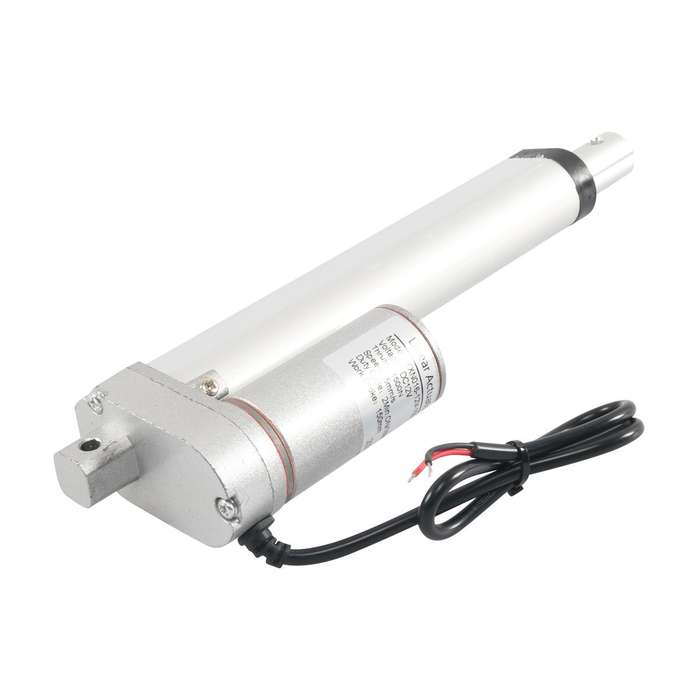

RV DIY 150mm Stroke 12V Electric Telescopic Linear Actuator with Switch Controller(Silver)

1. Adopt lightweight high-strength aluminum alloy shell, lighter weight and durable.
2. Silent pure copper motor reduces the high noise problem when the push rod is working

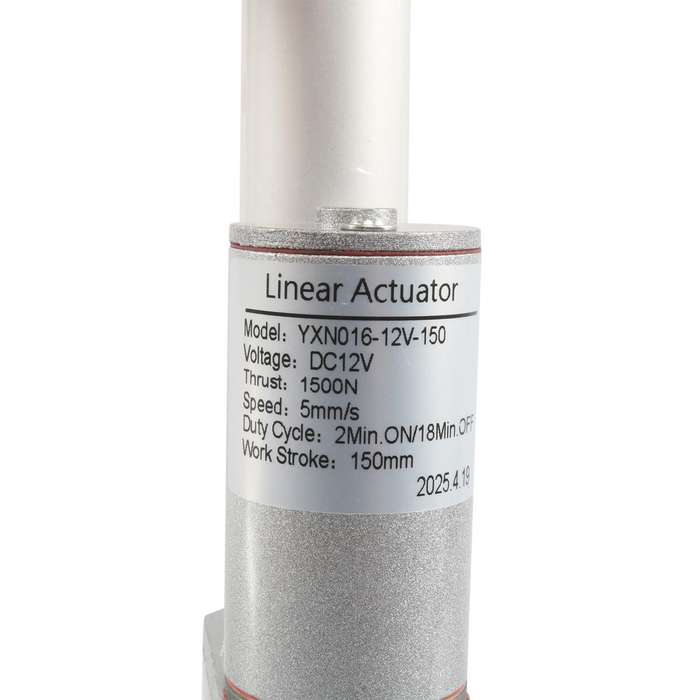

3. Material: Main body: aluminum alloy
4. Voltage: 12V
5. Stroke: 150mm
6. Pull force: 1500N
7. Speed: 5mm/s
8. Function: The main function is to drive other objects to rise or fall or push and pull.
9. Application: Widely used in electric window opening, electric table, electric bed, electric trunk switch, electric door, electric sofa, etc.
10. Working principle: DC motor drive, drive gear, screw transmission, telescopic rod telescopic
11. Protection level: IP43

Packing list
1. Electric push rod x 1
2. Base bracket x 2

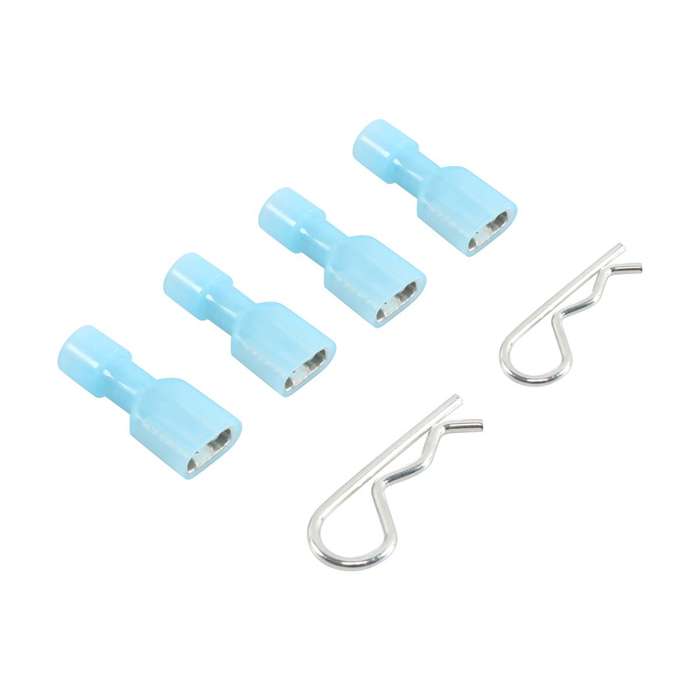

3. Fixing pin x 2
4. Split pin x 2

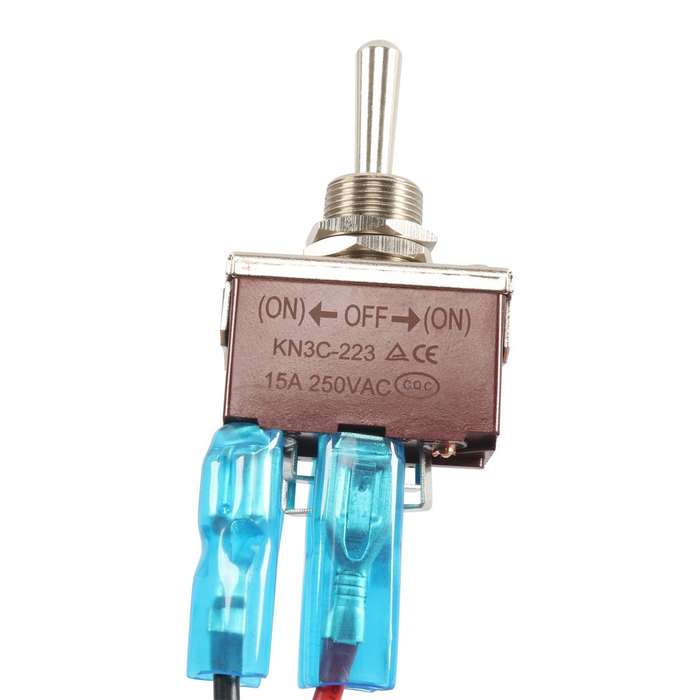

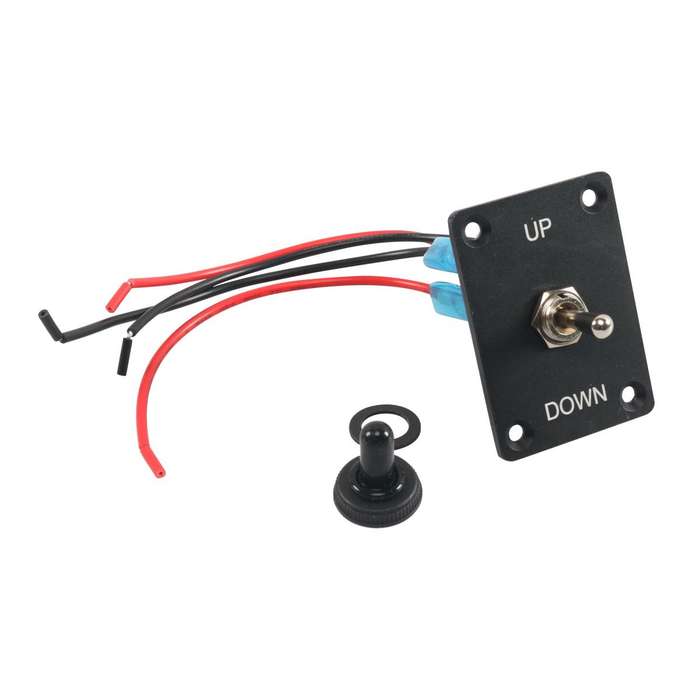

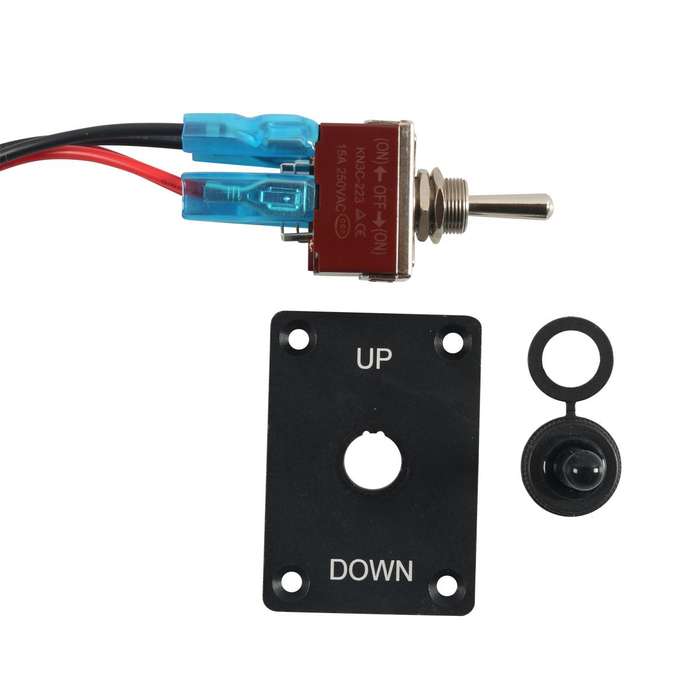

5. Switch controller panel x 1
EDA008276801A
