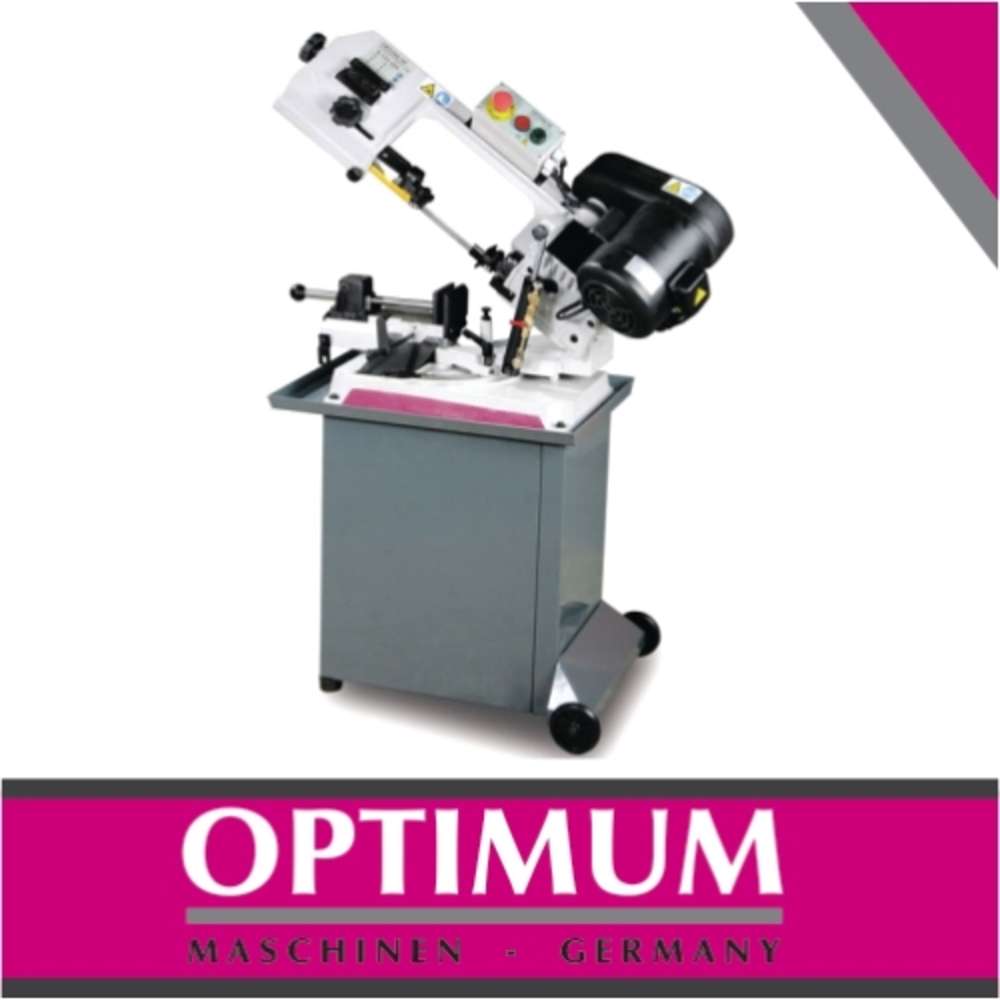

S131GH METAL BAND SAW

Metal Band Saw for Easy Sawing

Description

Metal band saw for easy sawing
Mitre saws from -45° to +60° via slewable saw bow
Protector switch for saw band saw belt off and for belt housing
Separate EMERGENCY-STOP push button
Low voltage electronics 24 V
Low-noise running
Saw band guiding via ball bearing
Three speed stages for a broad choice of materials
Micro switch for automatic limit stop
Scale good read for angle adjustment
With high-grade bimetallic saw band supplied as standard
Saw belt tension at the front adjustable via handwheel
Adjustable material stop for series productions
Quick-action vice for rapid workpiece clamping
Switch for saw band saw belt off and for belt housing

Saw bow

Grey cast-iron
Slewable on both sides from -45° to +60°

Technical Specifications
Length 965 mm
Width/depth 498 mm
Height 978 mm
Max. length 1085 mm
Max. height 1300 mm
Net weight 78 kg
Drive motor output 1,1 kW
Supply voltage 230 V
Phase(s) 1 Ph
Current type ~
Mains frequency 50 Hz
Clamping range 0° round (full material) 128 mm
Clamping range 0° quadratic (full material) 145 mm
Clamping range 0° rectangle horizontal (full material) 100 x 145 mm
Clamping range -45° round (full material) 90 mm
Clamping range -45° quadratic (full material) 100 mm
Clamping range -45° rectangle horizontal (full material) 70 x 85 mm
Clamping range +45° round (full material) 90 mm
Clamping range +45° quadratic (full material) 100 mm
Clamping range +45° rectangle horizontal 70 x 85 mm
Clamping range +60° round (full material) 45 mm
Schnittbereich +60° quadrat (Vollmaterial) 45 mm
Clamping range +60° rectangle horizontal 45 x 56 mm
Feed stufenlos einstellbar
Saw band speed(s) 22/31/55 m/min
Saw band length 1638 mm
Saw band width 13 mm
Saw band thickness 0,65 mm
Cutting angle -45 60 degree
Lifting the saw bow manual

Delivery Information

Material stop
Bi-metal saw band
Substructure
