Description:
Wireless GSM intelligent anti-theft electronic alarm system is an innovative wireless mobile intelligent warner integrating GSM digital signal processing techniques and imported STC microprocessor, and a variety of technologies including digital voice announcer, SMS, learning code pairing, etc. In addition, this alarm system is highly automatic, giving automatic voice or SMS alert in the event of emergency without intensive manual settings required. Features of stability, reliability, safety, and humanizing control enable it to be widely used for alert in shops, convenience stores, offices, villa as well as residential communities.
Advantages of AYG3 GSM Alarm:
Claimed the most cost-effective GSM Alarm solution for home and small office use.
Newly released in 2010 with enhancements to shortcoming of old models. How? keep reading
Supported 3 levels of defense: 24 Hours always-on Arming, At-Home Arming and Away Arming.
More User-friendly. e.g. can use landline phone for configuration (not only SMS), clear indicators and audible signal so you know the response of panel.
Use Learning Coding method for learning the sensors
Support GSM network 900, 1800 and 1900, widest coverage from Asia, to Europe, to USA and South American countries.
Anti-tampering unique feature not found elsewhere.
Boot-up Self-Test with clear design indication signals e.g. power light flickering means GSM signal weak or not found.
Calling and SMS are set separately so you can decide whether you want both or just be notified silently by SMS.
Silent can be selected to be ON or OFF.
Delay alarm is supported.
List of Major Functions:
4 wired guard areas and 6 wireless guard areas
6 voice phones and 3 message phones
1 normally open/closed signal output
Telephone (mobile phone) remote control programming
10-second ISD automatic message recording
Built-in artificial intelligent digital voice announcer
Built-in artificial intelligent Chinese message
Alarm locking memory and information clear for easy checking
Enabling guard while going out, enabling guard at home, and enabling guard by remote control
Wireless intelligent learning encoding and convenient additional accessories
Mobile phone (telephone) enabling guard, disabling guard and monitoring by remote control
Real-time, delay, all day, bypass guard area
The warning tone of guard enabling and disabling operations by remote control can be set.
E2PROM information protection can protect the information from loss after powering off
Built in NI-HI rechargeable battery is available to provide power supply automatically after powering off
AC and DC dual use are available for 24-hours-a-day normal guard
Main unit tamper-resistant and low-voltage detecting function conforms to the 3Csafety standards.

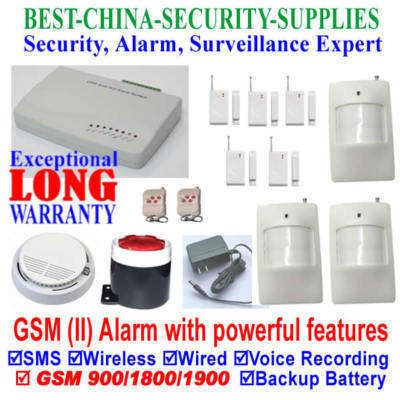

Packing:
Each standard kit includes the following
Alarm Controller Panel x 1
PIR Motion Detector x 3

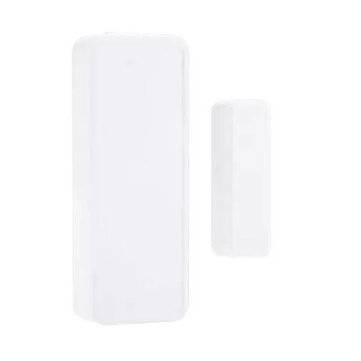

Door Sensor x 5
Wireless Smoke Detector x 1
Remote Control x 2
Indoor Siren x 1
Power Supply (plug for your country)
* customized set of different combination of motion detector, door sensor, keyfob and other accessories can be entertained. please contact us for quotation.
Specification:
Operating Voltage: 12v dc
Built-in Rechargeable backup battery
Working Temperature: -20 to 86 c
GSM Network Supported: gsm 900, 1800 and 1900
Frequency: 315 mhz
Wireless distance: 100m
Wireless zones supported: 6 zones (of many wireless detectors)
Wired zones supported: 4 zones (more with proper wiring)
Voice call phone number: 6
Sms phone number: 3
Other Products Information for Reference:
Model: CXG3
Shipping Weight: 2.00Kg
