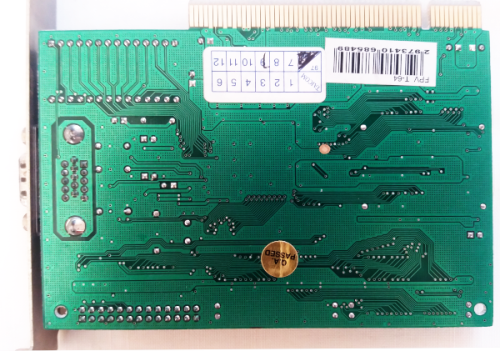

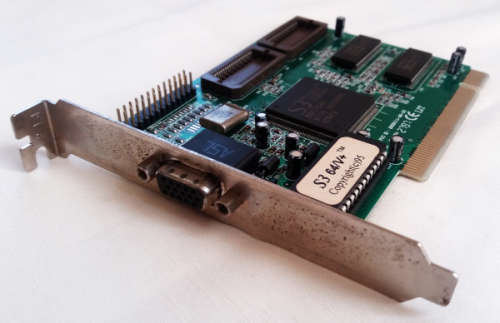

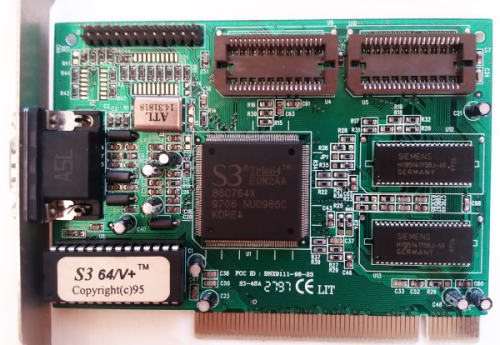

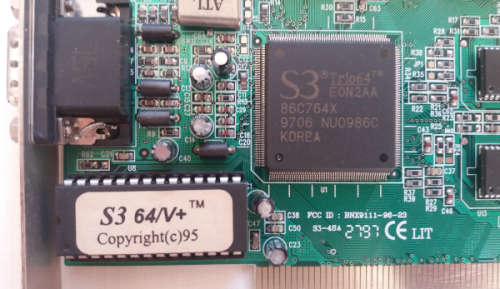

S3 Trio64 EON2AA 86C764X 2mb PCI video graphics card

On offer I have a used working 2mb S3 Trio64 EON2AA 86C764X PCI video graphics card, taken from a 486 PC.

O/S:  Windows 3.1 / 95 / 2000 / XP 32 bit

Note: This VGA card was designed for older CRT VGA monitors.

On TFT/LCD monitors some image distortions are possible!

Drivers are available on the internet - one of the websites you can see is: oemdrivers.com/graphics-s3-trio

Oemdrivers supports these O/S:  Windows 3.1 / 95 / 2000 / XP 32bit

Specs:

Bus: PCI

Memory size: 2MB

Max Memory Size: can be upgraded to 4MB

Memory type: FPM, EDO

Year: 1994

Card Type: VGA

Family: Trio

Outputs: 15 pin D-sub

Power consumption (W): 2

Core: 64 bit

Effective Memory Clock / Max Memory Clock (MHz): 70

Min Memory Clock (MHz): 55

Ramdac (MHz): 135

Memory Bus Width: 64 bit
