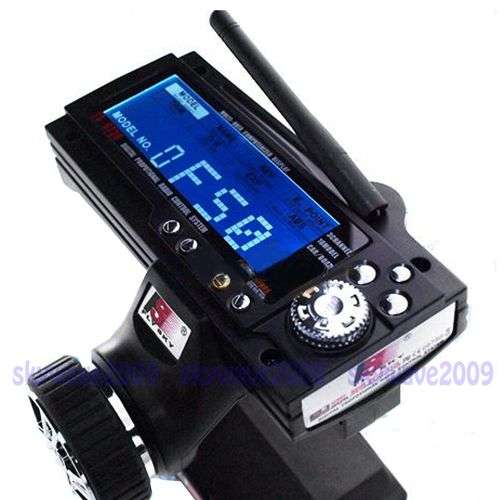

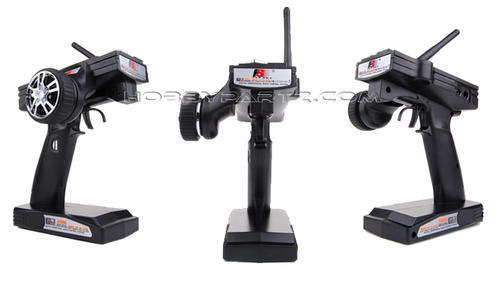

S92 Flysky Transmitter FS-GT3B 2.4g 3ch Gun Rc Controller /W Receiver

Specification

Function introduction.

This function is for the virtual RC racing through the computer ,you can practice the racing from the computer.

Operation Method:

1. Hook up the DSC port of your transmitter to the USB adapters to the USB(fs-sm100) and plug the USB adaptor into your PC on notebook.

2. Turn on the transmitter.

3. Open the VRC software.

4. Follow the on-screen instruction to set.

Remark:

The VRC software we provided is free which is offer only one basic track and the training ground.

Specifications:
• Channels: 3 channels
• Model type: car/ boat
• RF power: less than 10mW
• Modulation: GFSK
• System type: AFHDS
• Sensitivity: 1024
• Low voltage warning: yes(less than 9.5v)
• DSC port: yes
• Charger port: yes
• Power: 12 VDC (1.5VŽ8)
• Weight: 395 g
• ANT length: 26mm
• Size: 154 x 127x 270 mm
• Color: black
• Certificate: CE(0678), FCC
• Frequency: 2.4GHz

• 1 x 3 channel 2.4 G ransmitter(FS-GT3B)
• 1 x3 channel 2.4 G receiver(FS-GR3C)
• 1 x information CD-ROM
• 1 x Bind line
• 1 x Ant Pipe
•
