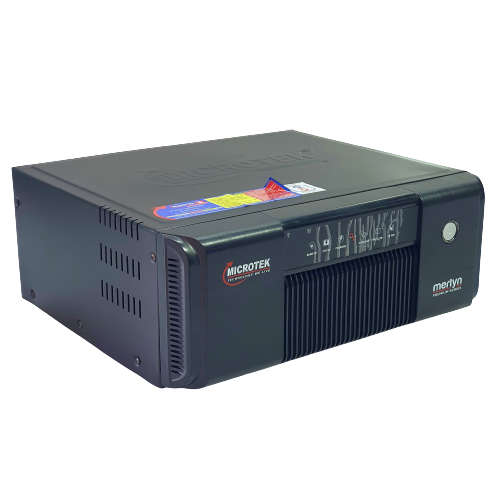

MICROTEK UPS SEBz Series is Micro Controller design based , LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
UPS SEBz Series Models are based on Intelli Pure Sinewave Technology which ensures Noiseless,Safe and Efficient Performance along with Longer Backup.
| Rated Capacity | 1600 VA / 24V |
| Output Power | 1275 Watts |
| Battery | 2 Battery System (24 VDC) |
| Waveform | Pure Sinewave |
| Warranty | 1 Years |
| INPUT | |
| Input Voltage (Standard range) | 100V ~ 300V |
| Input Voltage (Narrow range) | 180V ~ 260 V |
CHANGEOVER | |
| Switchover from Mains to UPS and UPS to Mains | Automatic |
| UPS Transfer Time | 15msec. |
OUTPUT | |
| Output Voltage (Mains Mode) | Same as Input |
| Output Voltage (UPS Mode) | 200V~ 230V ±10% |
| Output Waveform (Mains Mode) | Same as Input |
| Output Waveform (UPS Mode) | Pure Sinewave |
| TECHNOLOGY | |
| Design | Micro Controller Based Design with IPS Technology |
| Battery Charging Current | Constant Charging approx. 10% of the rated Battery Current in AH |
| UPS Overload / UPS Short-circuit | 110% / 300% |
| Browns on Mains Voltage | 100V ± 40V |
| Efficiency (Battery Mode) | > 80% |
| Auto Reset Feature | Yes |
| Input DC Range | 21 V ~ 28.4 V |
| Charging Current (Standard) | 10 Amps ± 1 Amps |
| Charging Current (High) | 14 Amps ± 1 Amps |
