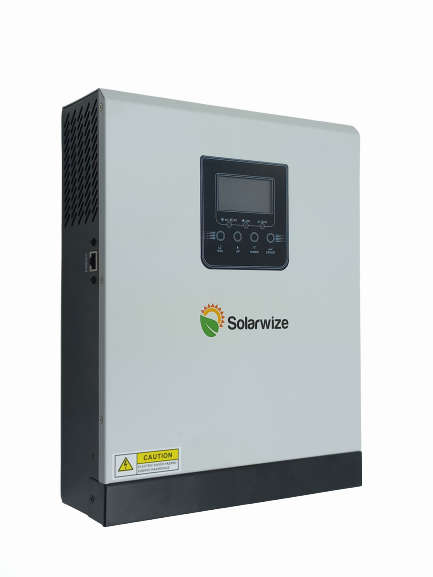

SA556 Solarwize - Hybrid Inverter Pure Signwave 3KVA /2.4 KW 24V 40Amp MPPT.1KW PV

Key Features:

1. Built-in MPPT Solar Charge Controller:
   • The inverter is equipped with an advanced MPPT solar charge controller, maximizing the efficiency of your solar array and regulating DC power for optimal charging of the battery bank.
2. Transformer-less Design:
   • Experience reliable power conversion in a compact form with the transformer-less design. This feature enhances efficiency while maintaining a smaller footprint.
3. Light and Handy Installation:
   • The inverter's design prioritizes ease of installation. Its lightweight and compact build simplify the setup process, ensuring a hassle-free experience.
4. Ideal for Various Applications:
   • Tailored for versatility, this hybrid inverter is well-suited for residential, commercial, and agricultural applications, offering a reliable and efficient energy solution.

Specifications:

• Brand: Solarwize
• Rated Power: 3000VA/2400W
• Input Voltage: 230VAC
• AC Voltage Regulation: 90VAC to 280VAC
• Surge Power: 6000VA
• Efficiency (Peak): 95%
• Waveform: Pure sine wave
• Battery Voltage: 24VDC
• Maximum AC Charge Current: 30A
• Maximum Solar Charging Current: 40A
• Dimensions (DWH): 305260100mm

Features:

• Pure Sine Wave Inverter
• Selectable Input Voltage Range and Frequency
• Selectable Charging Current Based on Applications
• Configurable AC/Solar Input Priority via LCD Display
• Compatible with Mains Voltage or Generator Power
• Auto Restart During AC Recovery
• Overload and Short-Circuit Protection
• Intelligent Battery Charger Design for Optimized Battery Performance
• Cold Start Function
• Parallel Communication
