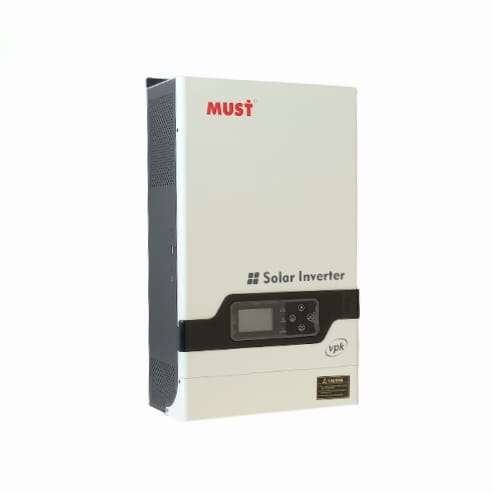

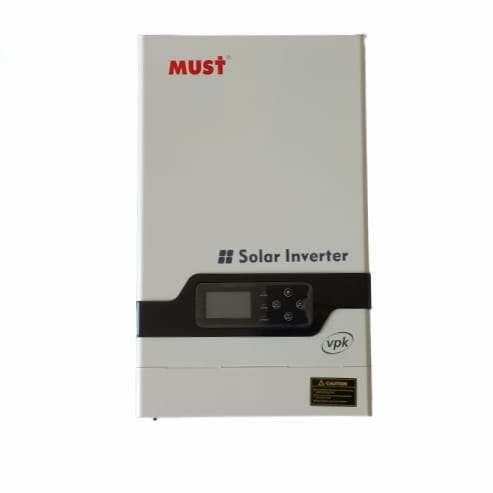

SA575A - MUST Hybrid Inverter Pure Sign PWM 5000 Watt. 48 Volt 60Amp Charger PV 105Volts

• Pure sine wave output
• Built-in 60Ah PWM solar charge controller
• MAX PV Array Open Circuit Voltage: 450V
• (do no support parralel)
• High Frequency

The Maximum PV array open circuit voltage can reach 450V and PWM voltage is 150~430Vdc, which can help you make full use of solar energy.
This inverter can provide power to the loads without a battery

Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in PWM solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery
- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function
- Support USB, RS485 monitoring function
- WIFI remote monitoring (Purchase WIFI Dongle Separately)

Specifications:
- Rated Power 5200VA/5200W
- Input Voltage 230 VAC
- Frequency Range 50 Hz/60 Hz (Auto sensing)

Output
- AC Voltage Regulation (Batt. Mode) 230VAC 5 %
- Surge Power 10400W
- Efficiency (Peak) 93 %
- Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure sine wave

Battery & AC Charger
- Battery Voltage 48 VDC
- Floating Charge Voltage 54.8 VDC
- Overcharge Protection 60 VDC
- Maximum Charge Current 80 A

Solar Charger
- Maximum PV Array Open Circuit Voltage 450 VDC
- Maximum Charging Current 80A

Dimensions : L 62cm X W 42cm X H 29cm
