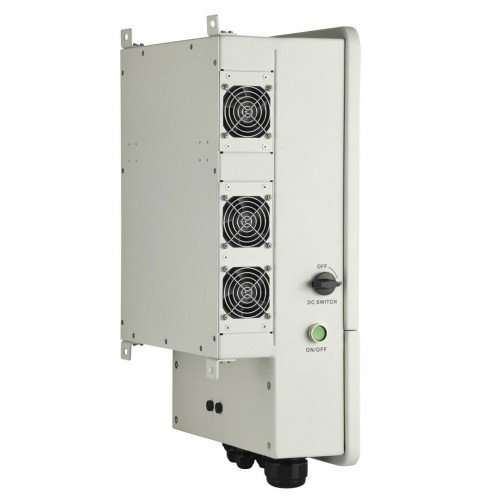

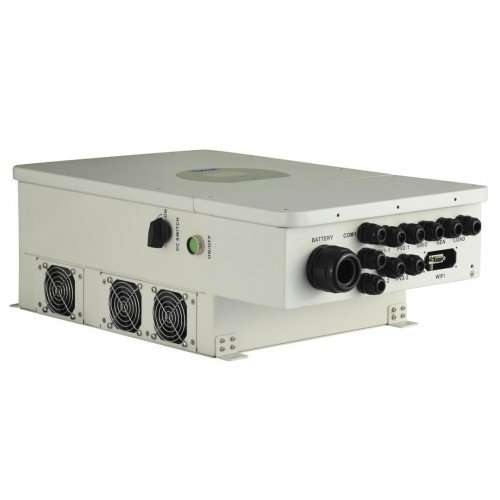

SA586 Deye - Hybrid Inverter Pure Sign Dual MPPT 8KW 48 Volt Parallel. WiFi

General Data

• Operating Temparature Range (C): -25-60C, >45C Derating
• Cooling: Fan
• Noise(dB): <30
• Communication with BMS: RS485;CAN
• Weight (Kg): 20.5
• Size (Length x Widthx Height mm): 670 x 420 x 233mm
• Protection Degree: IP65
• Installation Style: Wall mountedBattery Input Data

• Battery Type: Lead-acid or Li-lon.
• Battery Voltage Range (V): 40-60V.
• Max.Charging Current (A): 190A.
• Max.Discharging Current (A): 190A.
• Charging Curve: 3 Stages/Equalization.
• External Temperature Sensor: Optional.
• Charging Strategy for Li-Ion Battery: Self-adaption to BMS.

PV String Input Data

• Max. DC Input Power (W): 10400W.
• PV Input Voltage (V): 370V (100V 500V).
• MPPT Range (V): 125V 425V.
• Full Load DC Voltage Range: 240V 425V.
• Start-up Voltage (V): 150V.
• PV Input Current (A): 18A 18A.
• No.of MPPT Trackers: 2.
• No.of strings per MPPT Tracker: 2 2.

AC Output Data

• Rated AC Output and UPS Power (W): 8000W.
• Max. AC Output Power (W): 8800W.
• Peak Power (off grid): 2 times of rated power, 10 S.
• AC Output Rated Current (A): 33.4A/35A.
• Max. AC Current (A): 38.3A/40A.
• Max Continuous AC Passthrough (A): 50A.
• Power Factor: 0.8 leading to 0.8 lagging.
• Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase).
• Grid Type: Split phase / 2/3 phase / Single Phase.
• Current Harmonic Distortion: THD<3%(Linear Load<1.5%).

• Max. Efficiency: 97.60%
• Euro Efficiency: 97.00%
• MPPT Efficiency: 99.90%

Protection

• PV Arc Fault Detection: Integrated (Except European Type)
• PV Input Lightning Protection: Integrated
• Anti -islanding Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• Insulation Resistor Detection: Integrated
• Residual Current Monitoring Unit: Integrated
• Output over Current Protection: Integrated
• Output Shorted Protection: Integrated
• Output over Voltage Protection: Integrated

Certifications and Standards

• Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
• Safety Regulation: IEC62109-1, IEC62109-2
• EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

• • Operating Temperature Range ( C ): -2560 C , >45 C Derating
  • Cooling: Fan
  • Noise (dB): <30
  • Communication with BMS: RS485; CAN
  • Weight (kg): 32
  • Size (mm): 680 X 4200 X 233mm
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
