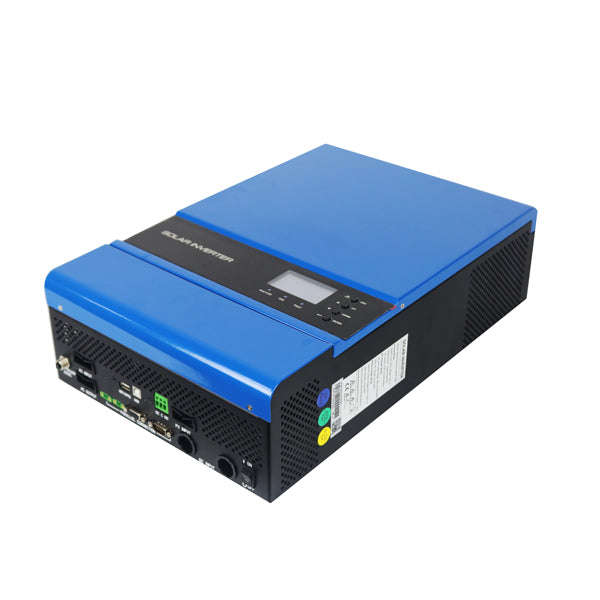

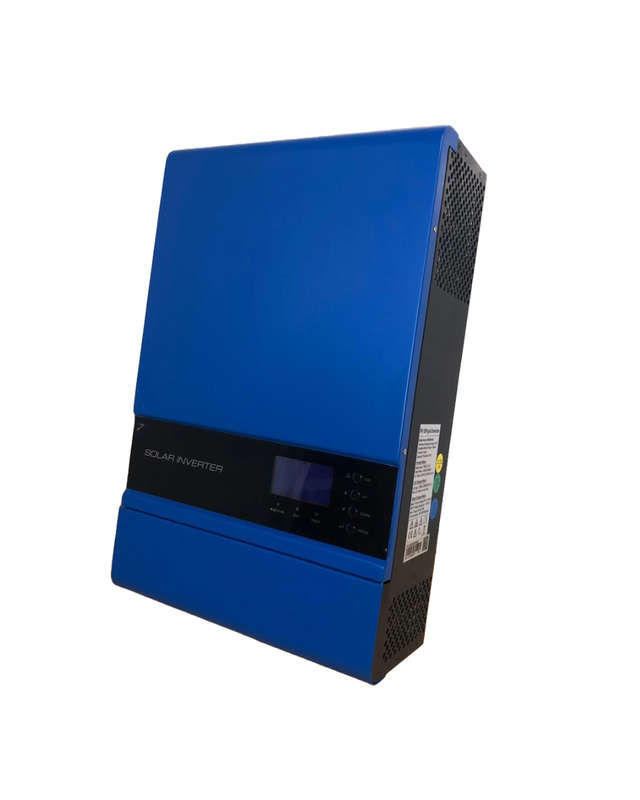

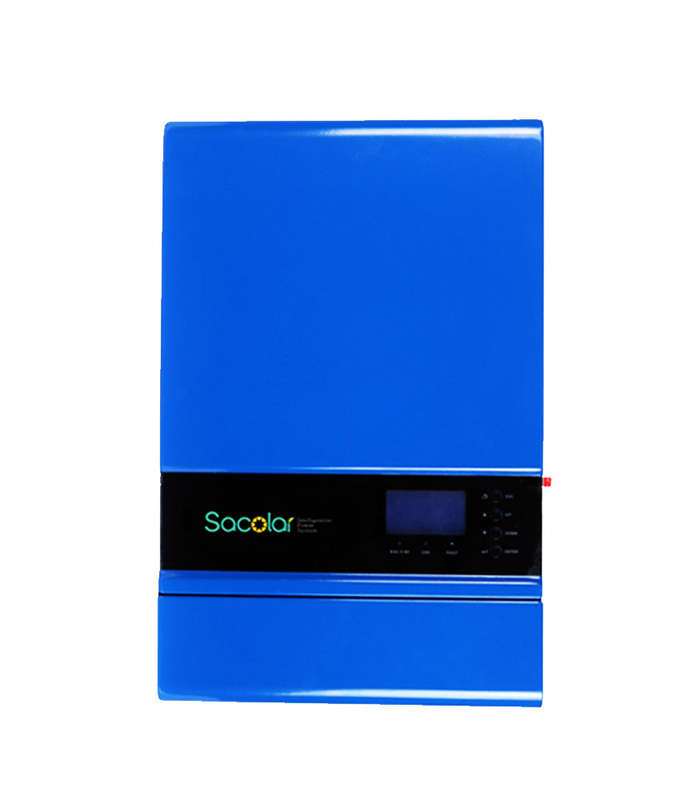

Sacolar Inverter - WiFi compatible- 5kVA / 5kW Pure Sine Wave 48V Solar Inverter, 80A Low Voltage MPPT / Parallel
User manual available here
Checklist for single (one inverter only) installation here
Checklist for parallel (more than 1 inverter) installation here
IP Rating:
- IP20
- Not recommended for installation location with high humidity
- If the inverter needs to be installed close to the ocean please make use of a dehumidifier
Built-in:
- 80A MPPT low voltage charge controller (from PV)
- Inverter charger (grid to battery, solar to battery)
- Bypass for grid to usage
Max Watt Output:
- Continuous: 5kW / 5kVA
- Surge (5 seconds): 10kW
Charging Source Settings:
- Can be set: Solar first, grid first, solar & grid, solar only
- Solar only: 80A (maximum)
- Grid only: up to 60A
- Combination solar & grid: up to 140A
Output (discharge) Source:
- Solar first - Can be set (BATTERIES REQUIRED!)
- Utility first (bypass) - Can be set
- Prioritized solar/battery/utility - Can be set
Monitoring & Setting:
- Computer Connection: Serial port
- LCD screen
- WiFi / GPRS remote monitoring (Optional)
- BMS / RS485 port.
- Communication with The Sun Pays LiFePO4 battery via BMS port.
Expansion: Single Inverter
- PV Panels minimum: 500W
- PV Panels maximum: 4400W
- Batteries minimum: 4 x 100Ah 12V
or 1 x 48V LiFePO4
- Peak Efficiency: 90%
- No Load Power Consumption: <50W
Expansion: More Inverters
- Single-phase: Up to 6 units = 30kVA
- Three-phase: Up to 6 units in total. Different configurations, maximum 2 units per phase (2 + 2 + 2).
- Please take note that the warranty will only be valid for up to 3 inverters connected in parallel. Contact us for approval on warranty for more than 3 inverters connected in parallel.
IMPORTANT : THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE LiFePO4 battery. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE AGM / Gel battery.
Warranty:
- Please take note of the full warranty terms and conditions.
- Please take note that the warranty will only be valid for up to 3 inverters connected in parallel. Contact us for approval on warranty for more than 3 inverters connected in parallel.
**FREE DELIVERY NATIONWIDE!!!**
Free nationwide delivery on inverters. Please take note for warranty claims that transport to The Sun Pays office will be the customer's cost.
