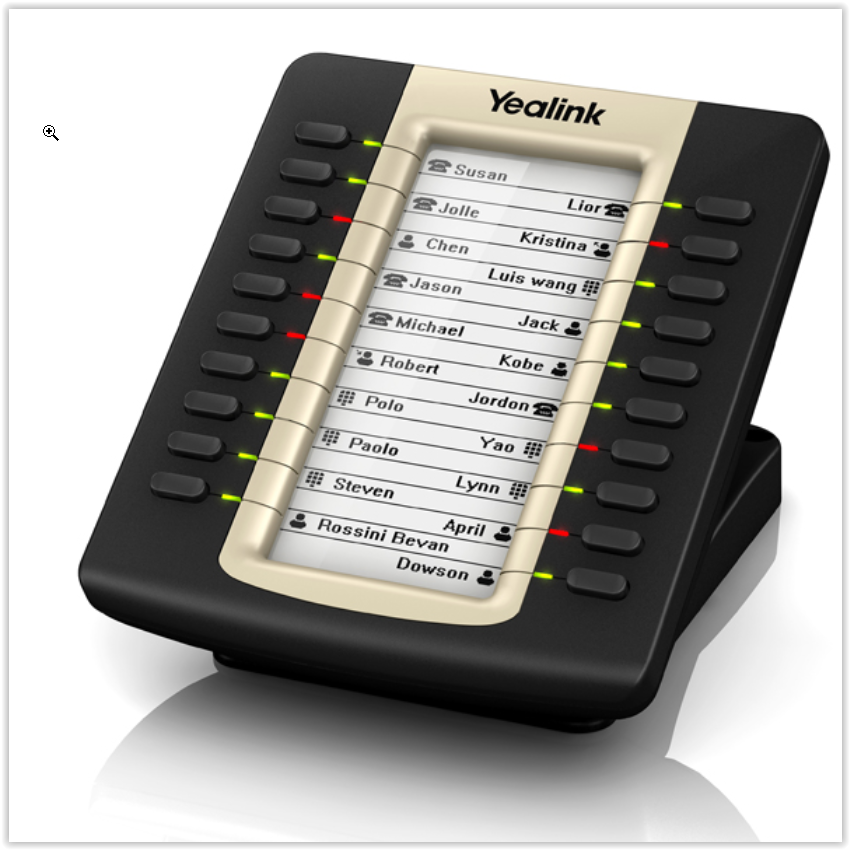

High-Performance LCD Expansion Module
The Yealink EXP20 is the next iteration of the companys flexible and powerful SIP-T27G, SIP-T27P and SIP-T29G advanced IP phone models.
The EXP20 contains a large and user-friendly liquid crystal display (LCD) interface that measures 160x320 pixels, as well as contains 20 physical, dual-color LED keys.
The additional screen space and added number of buttons simplify user navigation and streamline essential operational functions such as speed dial, BLF, BLA, call forwarding, transfer and hold. Up to six EXP20 phone systems can be strung together on a single daisy chain.
The advanced new Yealink EXP20 is an ideal IP phone system for receptionists, administrative assistants, or contact center workers who need to monitor and manage a large volume of calls on a regular basis.
Key Features and Benefits
An All-New Design
The EXP20 touts an all-new design that mirrors the eloquent look and feel of the T27G, T27P, and T29G models. The solution brings to the table multiple
convenient, user-friendly features such as rubber feet covers in order to prevent sliding, as well as a flexible base that allows the phone to stand in
multiple dynamic positions. These features, among many others, contribute to a more enjoyable user experience.
A Richer Visual Experience
The solutions expansive screen, combined with an added backlight and multi-page layout, simplifies navigability for the end-user. These functionalities, combined with 38 programmable LED keys, provides the rich visual experience that professionals need to exceed in todays demanding workplace.
Expandability
The EXP20 supports up to six expansion modules. It should be noted, however, that if you exceed two connections, the device will require a conventional power supply of 5V/1.2A.
A diverse range of actionable, LCD-accessible icons
160x320 graphic LCD with backlight
20 physical, dual-color LED programmable keys
18 additional keys available
Supports up to six modules
Two accessible pages
Stand with two adjustable angles
Two or fewer expansion modules can be powered by the host phone
Specifications:
Display
160x320 graphic LCD
LCD Backlight
Two accessible pages
A diverse range of actionable, LCD-accessible icons
Features Keys and Indicator
20 physical, dual-color LED programmable keys
18 additional keys available
Programmable keys enable users to partake in advanced call functions such as BLF list, multi-person conferencing, call forwarding, LDAP, XML browser functionality.
Physical Feature
Stand with two adjustable angles
Two or fewer expansion modules can be powered by the host phone
Supports up to six modules
2xRJ12?6P6C?ports for data in and out
Dimension (WDHT): 122mm143mm110mm45mm
Applies to Yealink SIP-T27G/SIP-T27P/ SIP-T29G
Operating temperature: -10~50°C (+14~122 °F)
Operating humidity: 10%-95%
