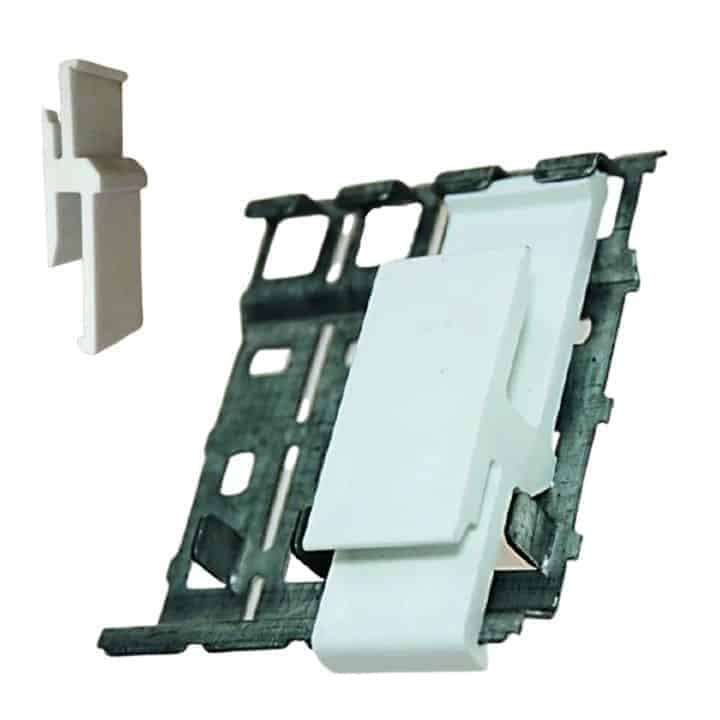

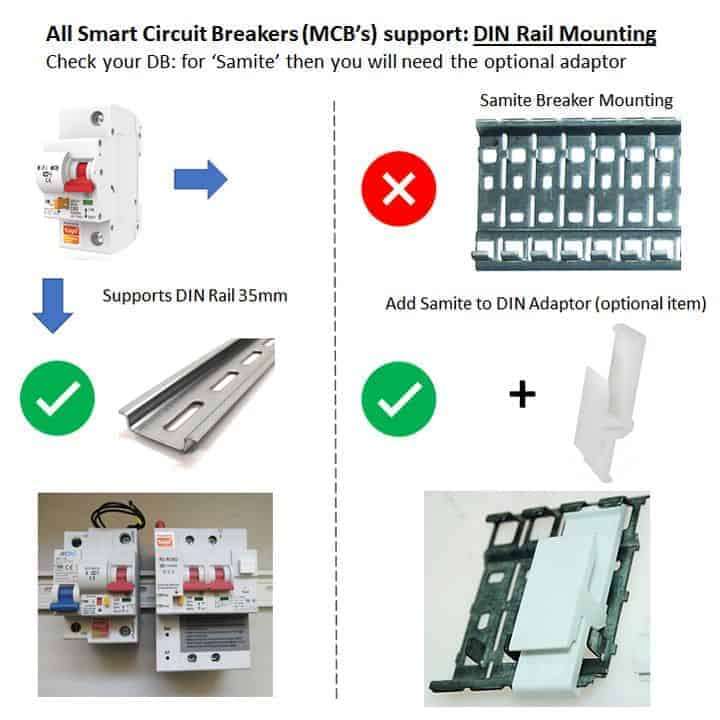

Samite to DIN Rail Adaptor | For Smart MCB Mounting to Samite DB

Here's a general guide on how to install a Samite to DIN Rail Adaptor:

Materials Needed:

• Samite to DIN Rail Adaptor
• Screwdriver
• DIN Rail Compatible Device (e.g., MCB)

Installation Steps:

1. Prepare the Samite Rail:

   • Ensure the Samite rail is clean and free of any obstructions.
   • Identify a suitable location on the rail to mount the adaptor.

2. Attach the Adaptor:

   • Screw-Type Adaptor:
     • Align the adaptor with the Samite rail.
     • Secure the adaptor to the rail using the provided screws. Tighten them securely.
   • Clip-On Adaptor:
     • Slide the adaptor onto the Samite rail until it clicks into place. Ensure it's firmly secured.

3. Mount the DIN Rail Device:

   • Align the DIN rail device with the adaptor's DIN rail.
   • Slide the device onto the adaptor's rail until it clicks into place.
   • Ensure the device is securely mounted.

Additional tips:

• • Wiring: connect the wiring to the DIN rail device per the manufacturer's instructions.
  • Safety First: always work with electricity with caution. Turn off the power supply before starting the installation.
  • Professional Installation: if unsure about any step, consult a qualified electrician.
