Samson Concert 88x UHF Wireless System with SE10 Earset Mic

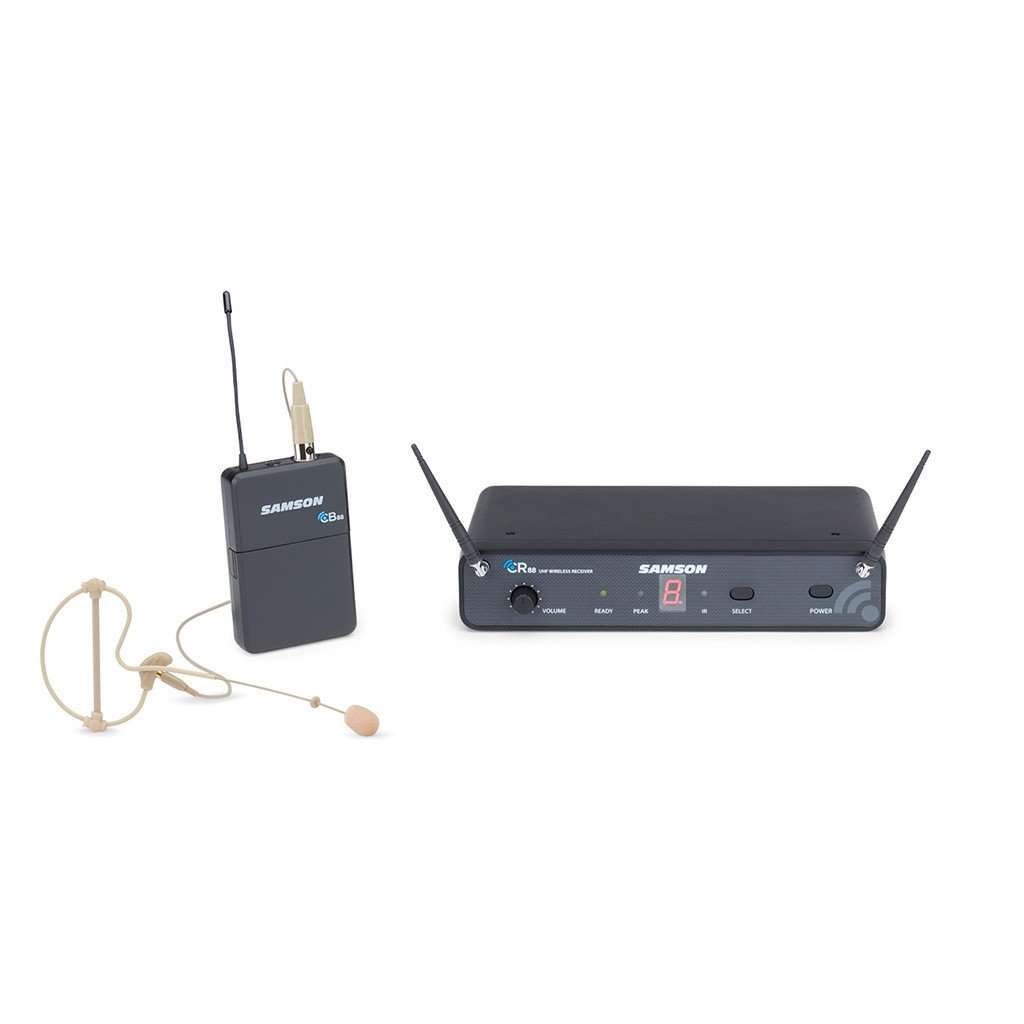

The Concert 88x UHF Wireless System with SE10 Earset Mic from Samson includes a CR88x wireless receiver, a CB88 beltpack transmitter, and an SE10 omnidirectional microphone. It combines professional-grade audio clarity, reliable operation in the UHF frequency band and easy setup. It can be used in various wireless applications such as for singers, worship leaders, educators, presenters, and more.
The Concert 88x receiver features one-touch scanning to analyze all available channels, selecting the clearest channel for a performance space. The system then locks the transmitter and receiver together on the selected channel and offers 100 frequencies with a 25 MHz bandwidth for your event. The true-diversity design minimizes dropouts and provides reception for up to 300'.
Additionally, the half-rack receiver's rear panel provides both balanced XLR and unbalanced 1/4" connections, and the included rackmount kit allows you to permanently install it in a 19" rack. The CB88 beltpack transmitter features a silent mute switch and an adjustable gain control for optimal performance. It runs on two AA batteries for up to eight hours.
Finally, the wireless system includes the Samson SE10 low-profile miniature earset microphone with a 3mm capsule. This microphone is lightweight and comfortable and is built with an omnidirectional pickup pattern, which results in a clear and articulate sound regardless of the position of the capsule.
Features
- CR88x Wireless Receiver
- CB88 Wireless Beltpack Transmitter
- SE10 Earset Microphone
- Omnidirectional Polar Pattern
- One-Touch Automatic Frequency Scan
- True Diversity, Dual-Antenna Design
- Operating Range up to 300'
- Use up to 8 Systems Simultaneously
- Balanced XLR and Unbalanced 1/4" Outputs
Specifications
| Wireless Technology | Analog UHF |
| Included Transmitters | 1x Bodypack with Microphone |
| Diversity | True Diversity |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Receiver Type | Tabletop / Rackmount |
| Microphone Type | Earset |
| Polar Pattern | Omnidirectional |
System
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 100 |
| Included Transmitters | 1x Bodypack with Microphone |
| Diversity | True Diversity |
| RF Frequency Band | K: 470 to 494 MHz |
| RF Bandwidth | Up to 25 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 8 |
| Encryption | Yes |
Receiver
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2x External, Fixed (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1x XLR 3-Pin Male Balanced Output
1x 1/4" TS Female Unbalanced Output |
| Audio Output Level | XLR Output:
... |
