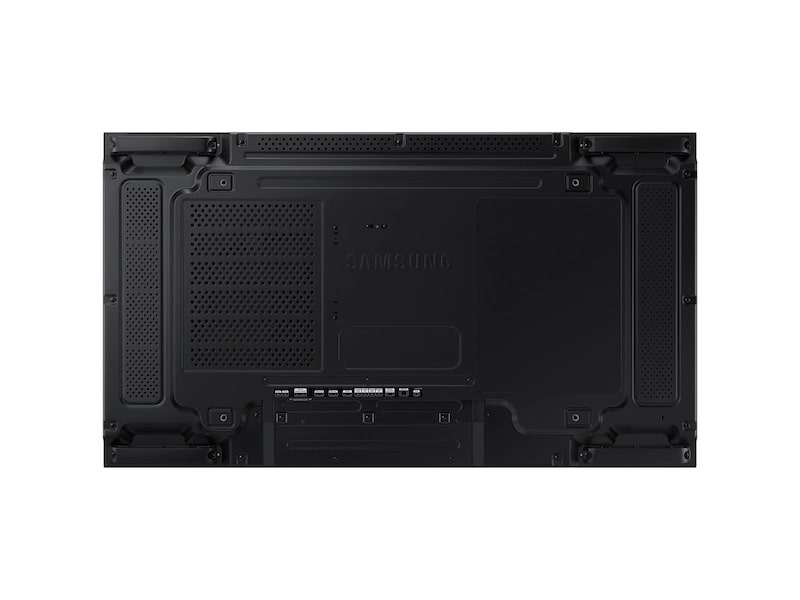

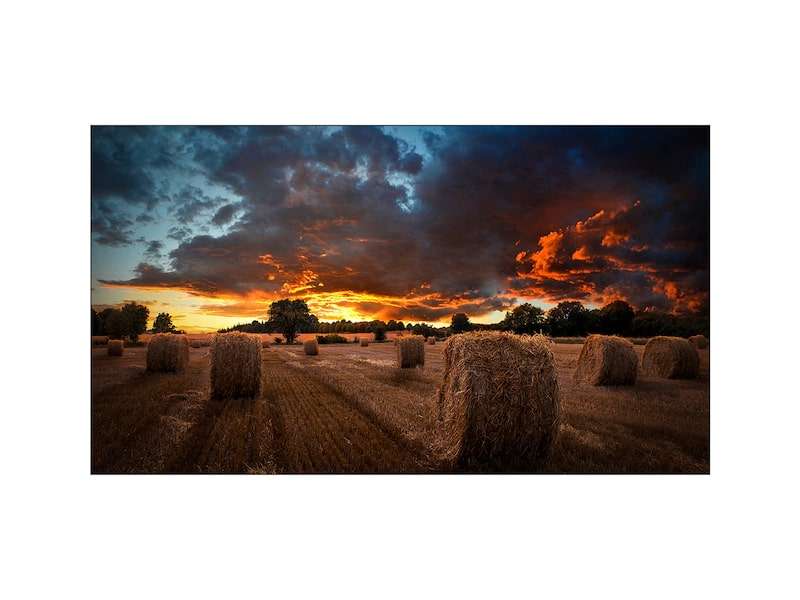

VM55B-U - Ultra Narrow Bezel LCD Video Wall for Business
3.5mm (B-to-B) ultra-narrow bezel video wall allows seamless display.

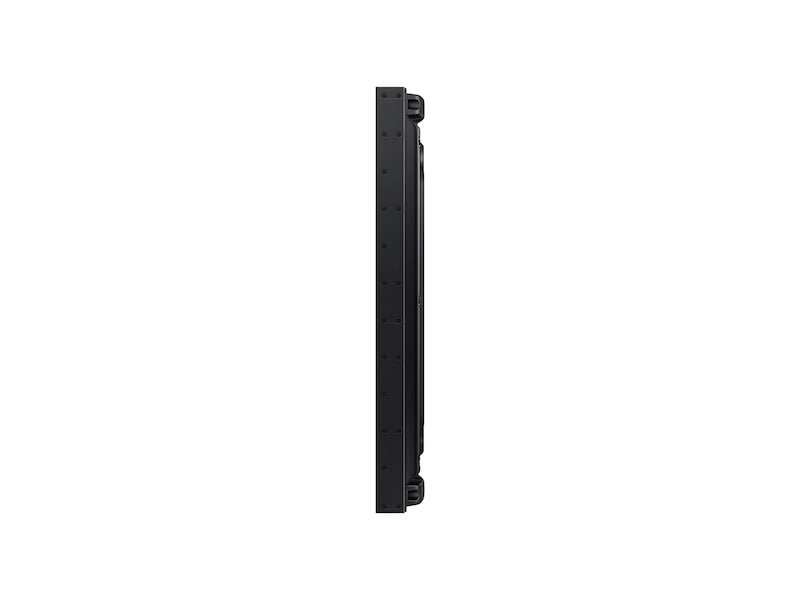

The exceptionally thin cabinet depth provides flexibility to create the exact video wall.
Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content.
Specifications:
55"
Screen Size
1920x1080
Resolution
500 nit
Brightness
24/7
Operation Hours
3.5mm
Bezel to Bezel
YES
Non Glare
HIDE ALL SPECS
Series Name
Series Name
VMB-U Series 55"
Display
Type
IPS
Screen Size
55"
Resolution
1920x1080
Pixel Pitch
0.63x0.63
Active Display Area
1209.6(H) x 680.4(V)
Aspect Ratio
16:9
Brightness
500 nit
Contrast Ratio (Typical)
1200:1
Operation Hours
24/7
Color Gamut
72
Haze
25%
Orientation
Landscape / Portrait
Bezel to Bezel
3.5mm
Non Glare
YES
Connectivity
Input
Video: HDMI 2.0 (2) / DVI-D, Display Port 1.2
Audio: Stereo mini Jack
USB: 2.0 x 1
Output
Video: DP1.2 (Loop-out)
Audio: Stereo mini Jack
External Control
RS23C(in/out), RJ45 in
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption (Typical/Max)
Max: 220
Typical: 165
Sleep Mode: less than 0.5W
Environmental Conditions
Operating Temperature
0?~ 40?
Operating Humidity
10~80%
Features
Special
HARDWARE: Temperature Sensor, Video Wall Daisy Chain(10x10), DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Clock Battery(168hrs Clock Keeping)
SOFTWARE: Auto Source Switching & Recovery, RS232C/RJ45 MDC, Button Lock, Smart F/W update
24/7 Operation
Yes
System On Chip
Yes
Dimensions
Bezel Width (mm)
2.25mm(U/L), 1.25mm(R/B)
Without Stand (W x H x D)
1213.5 x 684.3 x 73.13
Packaging (W x H x D)
1398 x 844 x 257
Weight
Product Weight
19.4kg
Package Weight
27.6kg
Accessories
Included in Box
Quick Setup Guide
Warranty Card
Power Cord
RS232C(IN) Gender (Stereo to DB-9)
Remote Controller + Batteries
DP cable
Optional Wall Mount Kit
WMN-55VD
Mechanical Specs
VESA Mount
600 x 400
Certification
Safety
60950-1
EMC
Class A
IP Rating
IP5x
