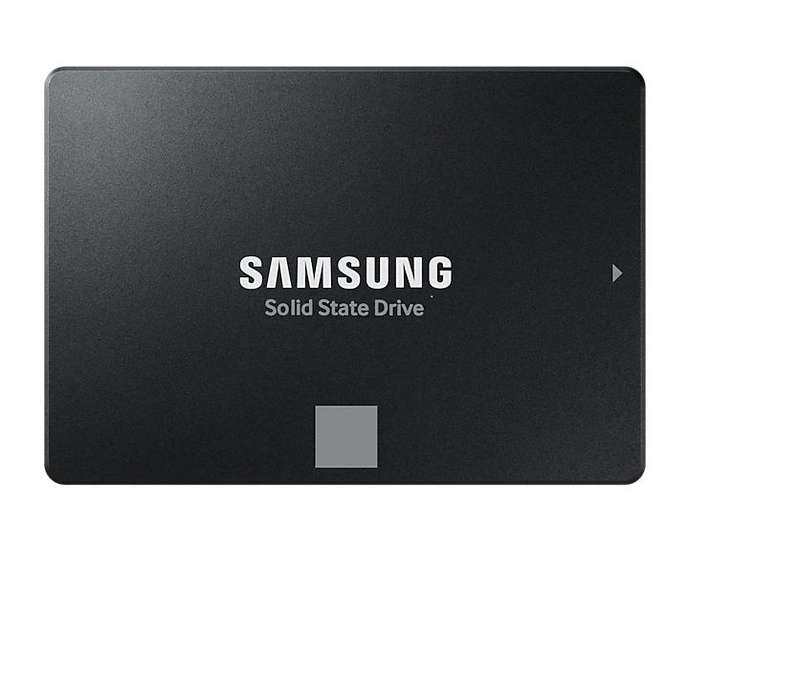

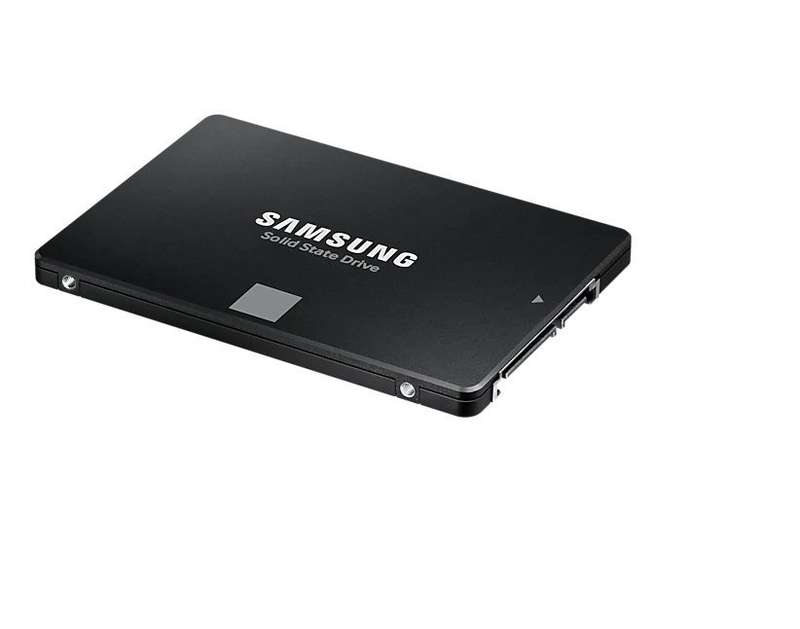

Samsung 870 EVO 500GB 2.5" SATA III SSD

Samsung 870 EVO 500GB 2.5" SATA III SSD
SAMSUNG MZ-77E500BW

Features:
- Highly reliable and sustainable performance
- Up to 560 MB/s sequential read and 530 MB/s write
- Up to 2,400 TBW guaranteed endurance

Specifications:
- Application
- Client PCs
- Capacity: 500 GB
- Form Factor: 2.5 inch

Interface:
- SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (WxHxD)
- 100 X 69.85 X 6.8 (mm)

Weight
- Apporx. 45.0g Weight

Storage Memory
- Samsung V-NAND 3bit MLC

Controller
- Samsung MKX Controller

Cache Memory
- Samsung 512 MB Low Power DDR4 SDRAM

Special Feature
- TRIM Support
- TRIM Supported

S.M.A.R.T Support
- S.M.A.R.T Supported

GC (Garbage Collection)
- Auto Garbage Collection Algorithm

Encryption Support
- AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support
- World Wide Name supported

Device Sleep Mode Support
- Yes

Performance
- Sequential Read
- Up to 560 MB/s Sequential Read

Sequential Write
- Up to 530 MB/s Sequential Write

Random Read (4KB, QD32)
- Up to 98,000 IOPS Random Read

Random Write (4KB, QD32)
- Up to 88,000 IOPS Random Write

Random Read (4KB, QD1)
- Up to 13,000 IOPS Random Read

Random Write (4KB, QD1)
- Up to 36,000 IOPS Random Write

Environment
- Average Power Consumption (system level)
- Average: 2.2 W *Maximum: 3.5 W (Burst mode)

Power consumption (Idle)
- Max. 30 mW

Allowable Voltage
- 5V ± 5% Allowable voltage

Reliability (MTBF)
- 1.5 Million Hours Reliability (MTBF)

Operating Temperature
- 0 - 70 ? Operating Temperature

Shock
- 1,500 G & 0.5 ms (Half sine)

Software
- Management SW
- Magician Software for SSD management, Data Migration Software for SSD upgrade

What's in the box
1 x SSD
