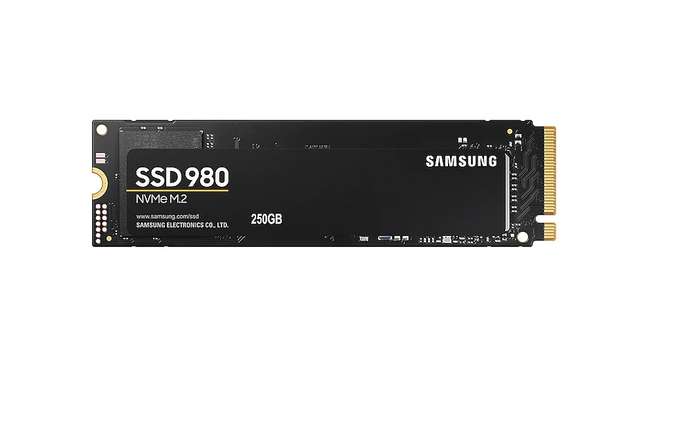

Samsung 980 250GB NVMe M.2 SSD

Samsung 980 250GB NVMe M.2 SSD
SAMSUNG MZ-V8V250BW

Upgrade to breathtaking NVMe speed
It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance and it's all backed by an NVMe interface and PCIe 3.0 technology.

Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/sx, over 6.2x the speed of SATA SSDs.

Specifications
General Feature
Application
Client PCs

Capacity
250GB

Form Factor
M.2 (2280)

Interface
PCIe Gen 3.0 x4, NVMe 1.4

Dimension (WxHxD)
80.15 x 22.15 x 2.38 (mm)

Weight
Max 8.0 g Weight

Storage Memory
Samsung V-NAND 3-bit MLC

Controller
Samsung Pablo Controller

Cache Memory
HMB(Host Memory Buffer)

Special Feature
TRIM Support
Supported

S.M.A.R.T Support
Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support
Not supported

Device Sleep Mode Support
Yes

Performance
Sequential Read
Up to 2,900 MB/s

Sequential Write
Up to 1,300 MB/s

Random Read (4 KB, QD32)
Up to 230,000 IOPS

Random Write (4KB, QD32)
Up to 320,000 IOPS

Random Read (4 KB, QD1)
Up to 17,000 IOPS

Random Write (4 KB, QD1)
Up to 53,000 IOPS

Environment
Average Power Consumption (system level)
Average: 3.7 WxMaximum: 5.6 W (Burst mode)

Power consumption (Idle)
Max. 45 mW

Allowable Voltage
3.3 V 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Operating Temperature
0 - 70 ? Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

What's in the box
1 x SSD
