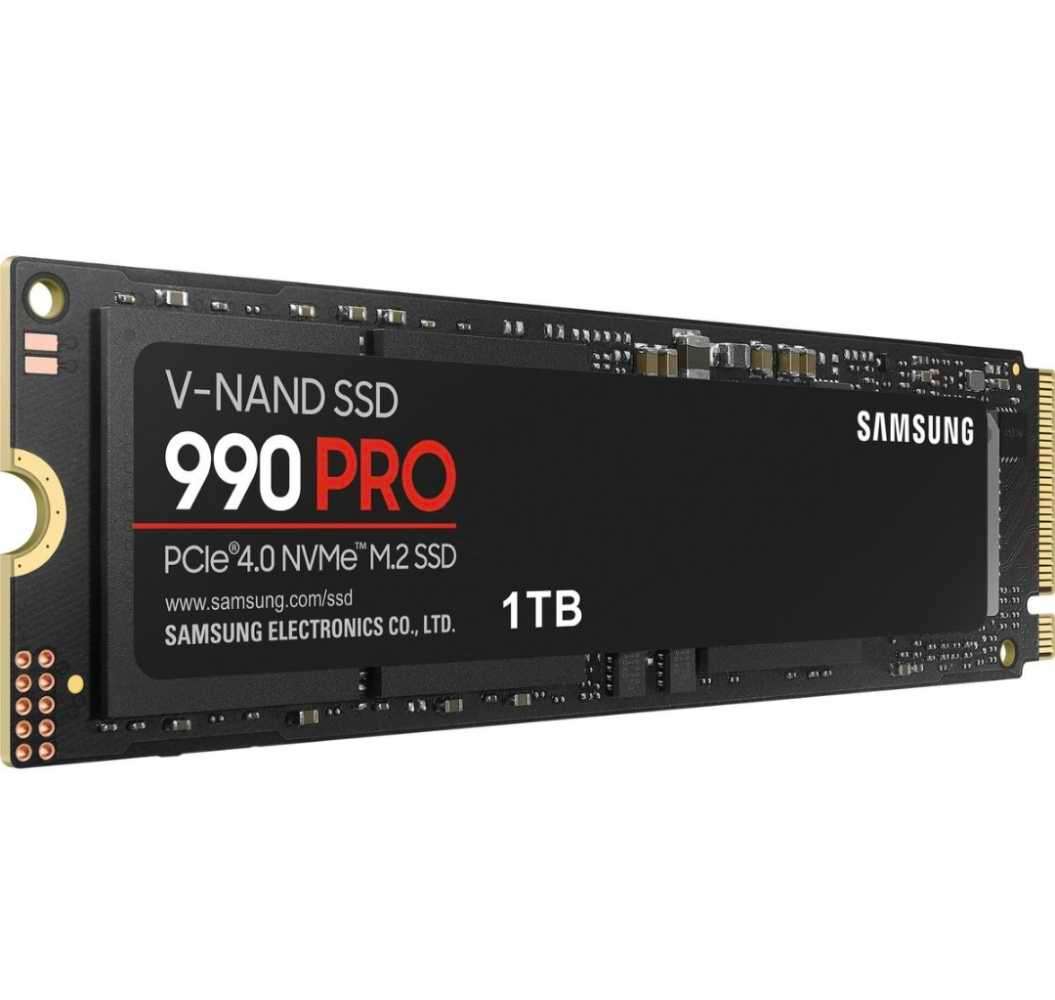

SAMSUNG 990 PRO 1TB NVMe SSD

• APPLICATION
  Client PCs, Game Consoles
• FORM FACTOR
  M.2 (2280)
• INTERFACE
  PCIe Gen 4.0 x4, NVMe 2.0
• DIMENSION (WxHxD)
  80 x 22 x 2.3 mm
• WEIGHT
  Max 9.0g Weight
• STORAGE MEMORY
  Samsung V-NAND 3-bit MLC
• CONTROLLER
  Samsung in-house Controller
• CACHE MEMORY
  Samsung 1GB Low Power DDR4 SDRAM (1TB)


Special Feature

• TRIM SUPPORT
  Supported
• S.M.A.R.T SUPPORT
  Supported
• GC (GARBAGE COLLECTION)
  Auto Garbage Collection Algorithm
• ENCRYPTION SUPPORT
  AES 256-bit Encryption (Class 0) TCG/Opal
  IEEE1667 (Encrypted drive)
• WWN SUPPORT
  Not supported
• DEVICE SLEEP MODE SUPPORT
  Yes

Performance

• SEQUENTIAL READ: Up to 7,450 MB/s

• SEQUENTIAL WRITE: Up to 6,900 MB/s

• RANDOM READ (4KB, QD32)
  1TB: Up to 1,200,000 IOPS

• RANDOM WRITE (4KB, QD32)
  1TB: Up to 1,550,000 IOPS

• RANDOM READ (4KB, QD1): Up to 22,000 IOPS

• RANDOM WRITE (4KB, QD1): Up to 80,000 IOPS


Environment

• AVERAGE POWER CONSUMPTION
  (SYSTEM LEVEL)3)
  1TB: Average 5.4 W Maximum 7.8 W (Burst mode)
  2TB: Average 5.5 W Maximum 8.5 W (Burst mode)
  4TB: Average 6.5 W Maximum 8.6 W (Burst mode)
• POWER CONSUMPTION (IDLE)3)
  1TB: Max. 50 mW
  2TB: Max. 55 mW
  4TB: Max. 55 mW
• POWER CONSUMPTION (DEVICE SLEEP)
  1TB: Max. 5 mW
  2TB: Max. 5 mW
  4TB: Max. 5.8 mW
• ALLOWABLE VOLTAGE
  3.3 V 5 % Allowable voltage
• RELIABILITY (MTBF)
  1.5 Million Hours Reliability (MTBF)
• OPERATING TEMPERATURE
  0 - 70 Operating Temperature
• SHOCK
  1,500 G & 0.5 ms (Half sine)

What's in the box
1 x Samsung 990 PRO 1TB
