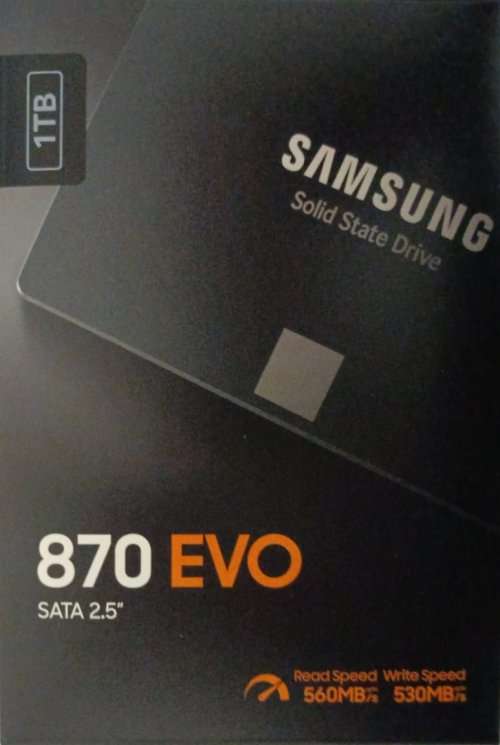

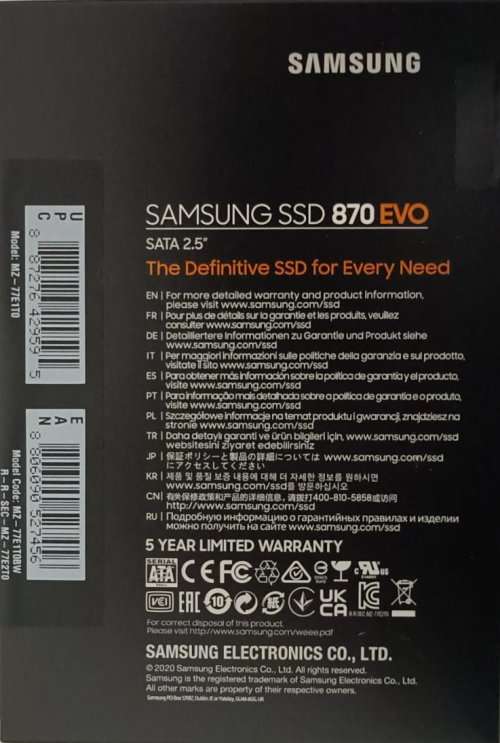

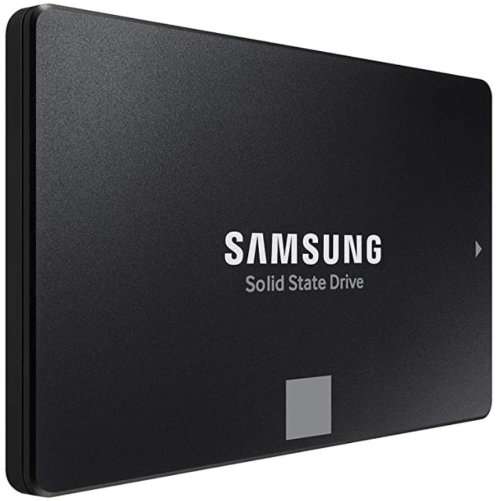

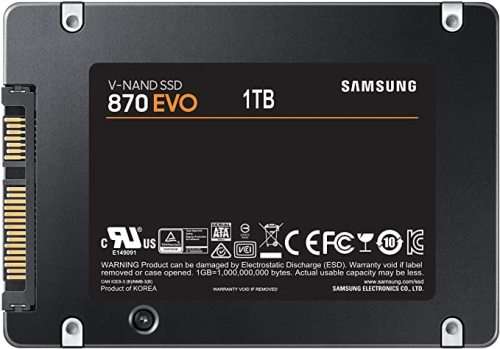

SAMSUNG EVO 870 1TB SATA 2.5` SSD

Description

Samsung 870 EVO 1TB 2.5" SATA III SSD
SAMSUNG MZ-77E1T0BW

Features:
- Highly reliable and sustainable performance
- Up to 560 MB/s sequential read and 530 MB/s write
- Up to 2,400 TBW guaranteed endurance

Specifications:
- Application
- Client PCs
- Capacity: 1000 GB
- Form Factor: 2.5 inch

Interface - SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (W x H x D) - 100 X 69.85 X 6.8 (mm)

Weight - Approx. 45.0g Weight

Storage Memory - Samsung V-NAND 3bit MLC

Controller - Samsung MKX Controller

Cache Memory - Samsung 1GB Low Power DDR4 SDRAM

Special Features: TRIM Support yes;

  S.M.A.R.T Support - yes

GC (Garbage Collection) - Auto Garbage Collection Algorithm

Encryption Support - AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support - World Wide Name supported

Device Sleep Mode Support - Yes

Performance:
-Sequential Read - Up to 560 MB/s

-Sequential Write - Up to 530 MB/s

-Random Read (4KB, QD32) - Up to 98,000 IOPS

-Random Write (4KB, QD32) - Up to 88,000 IOPS

-Random Read (4KB, QD1) - Up to 13,000 IOPS

-Random Write (4KB, QD1) - Up to 36,000 IOPS

Environment:
- Average Power Consumption (system level)
- Average: 2.5 W *Maximum: 4 W (Burst mode)

Power consumption (Idle) - Max. 30 mW

Allowable Voltage - 5V ± 5%

Reliability (MTBF) - 1.5 Million Hours

Operating Temperature - 0 70C

Shock - 1,500 G & 0.5 ms (Half sine)

Software
- Management SW
- Magician Software for SSD management, Data Migration Software for SSD upgrade

What's in the box
1 x SSD
