Item Description:

Overview:

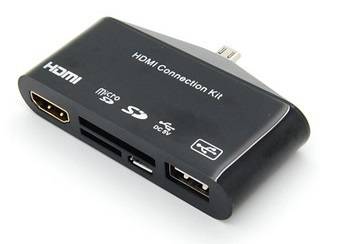

This product is with USB OTG and MHL function for 11Pin samsung mobile phones.
Small adapter to your Smart phone video,picture output to HDTVs, Monitors, Projectors play.
Read anywhere at any time of USB flash disk,SD/TF/M2 memory cards.Video,images,
and on the document copying,delete operation.Make difference user experience.

 Featuress:
Micro-11p USB connector suitable for Samsung galaxy S4/S5 /Note2 and 11Pin Samsung Galaxy Tab3 (8.0/10.1)
Support read SD/TF/M2 memory cards.
Support USB2.0 host to connect USB disk,mouse,keyboard.
Support MHL to HDMI output to HDTV.
Supports Max resolution to 1080p and all bandwidth between 25-75MHz.
Support 8 channel (e. G., 7.1 surround sound) uncompressed audio.
Support audio transfer up to 192kHz.
Through the micro usb power supply to the products.


Specifications :
Compliant with MHL1.1 and HDMI 1.4a specification
USB specification compliance USB1.1 for 12Mbps,USB 2.0 for 480Mbps
Compliant with Cards:SD/TF/M2.
USB support:USB disk,mouse,keyboard
Video:1080p
Audio:8-channel(e.g.7.1 surround)digital audio
Power supply:DC 5V 1A through micro usb
Dimensions:120*120*26mm

 Attention: The MHL, OTG,Card reader and Charge function only can be used one at the same time. cannot use it together

all functions can be used only when the adapter is being charged

DO NOT work for S3 Mini or S4 Mini or Samsung Galaxy Tab 3 7.0" and so on which does not support OTG devices

Package includes:

OTG Card Reader & HDMI Adapter x 1
Micro USB Cable x 1 , (No any accessories,No Pakcing box)
