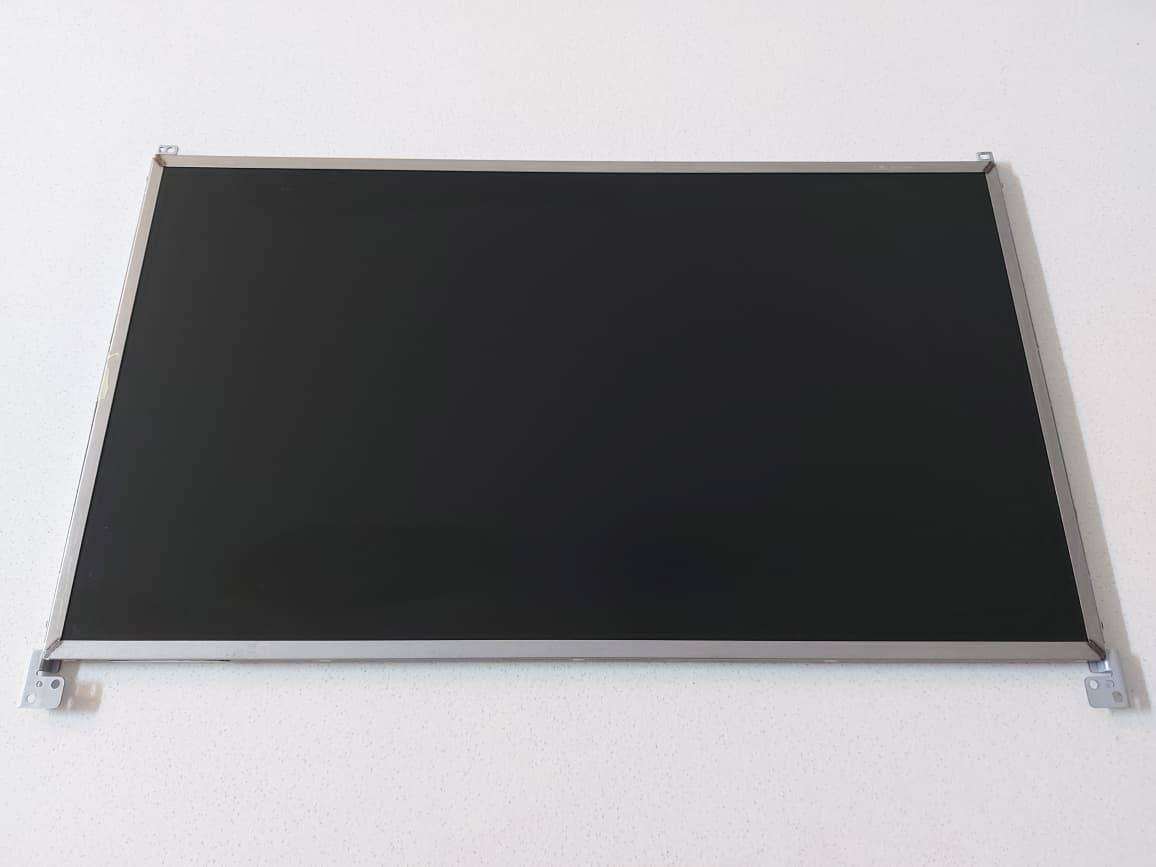

Samsung LTN156KT01-003 panel:
Brand & Model: Samsung LTN156KT01-003
Size & Resolution: 15.6, HD+ (1600×900), 118 PPI
Panel Type: TN, Normally White, Transmissive, a-Si TFT-LCD
Brightness: 250 cd/m² (typical)
Contrast Ratio: 400:1 (minimum)
Viewing Angles: 55°/55°/45°/45° (L/R/U/D), best at 6 oclock
Response Time: 16 ms (Tr+Td)
Surface: Anti-glare (Haze 25%), 3H hard coating
Color: 262K (~60% NTSC)
Backlight: WLED [8S8P] with LED driver
Interface: eDP (1 lane), eDP1.1, HBR1, 30-pin connector
Voltage Supply: 3.3V typical
Touchscreen: No
Application: Laptop
Refresh Rate: 60Hz (supports MEMC up to 240Hz input)
Form Factor: Wedge (PCBA bent, T 5.2mm)
Operating Temperature: 050°C
Storage Temperature: -2060°C
List of Samsung LTN156KT01-003 compatible models:
LP156WD1-TPB1
LTN156KT01-001
LTN156KT01-003
