Description

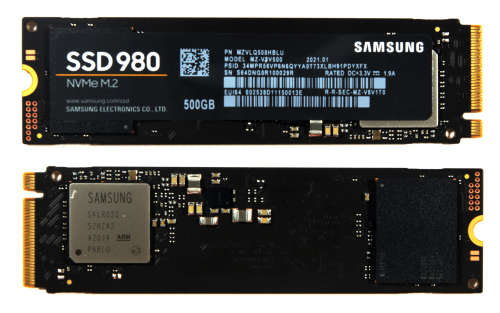

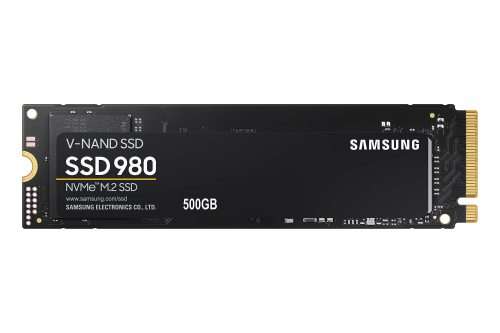

Samsung 980 500GB NVMe M.2 SSD

SAMSUNGMZ-V8V500BW



Upgrade to breathtaking NVMe speed

It's time to maximise your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance and it's all backed by an NVMe interface and PCIe 3.0 technology.



Packed with speed

Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving breakneck sequential read/write speeds up to 3,500/3,000 MB/s*, over 6.2x the speed of SATA SSDs.



Specifications

General Feature

Application

Client PCs



Capacity

500GB



Form Factor

M.2 (2280)



Interface

PCIe Gen 3.0 x4, NVMe 1.4



Dimension (WxHxD)

80.15 x 22.15 x 2.38 (mm)



Weight

Max 8.0 g Weight



Storage Memory

Samsung V-NAND 3-bit MLC



Controller

Samsung Pablo Controller



Cache Memory

HMB(Host Memory Buffer)



Special Feature

TRIM Support

Supported



S.M.A.R.T Support

Supported



GC (Garbage Collection)

Auto Garbage Collection Algorithm



Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)



WWN Support

Not supported



Device Sleep Mode Support

Yes



Performance

Sequential Read

Up to 3,100 MB/s



Sequential Write

Up to 2,600 MB/s



Random Read (4 KB, QD32)

Up to 400,000 IOPS



Random Write (4KB, QD32)

Up to 470,000 IOPS



Random Read (4 KB, QD1)

Up to 17,000 IOPS



Random Write (4 KB, QD1)

Up to 54,000 IOPS



Environment

Average Power Consumption (system level)

Average: 4.3 W*Maximum: 5.9 W (Burst mode)



Power consumption (Idle)

Max. 45 mW



Allowable Voltage

3.3 V ± 5 % Allowable voltage



Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)



Operating Temperature

0 - 70 ? Operating Temperature



Shock

1,500 G & 0.5 ms (Half sine)



What's in the box

1 x SSD
