SAMSUNG MZ-V9P1T0CW 990 PRO 1 TB NVMe SSD W/Heatsink - Read Speed up to 7450 MB/s; Write Speed to...

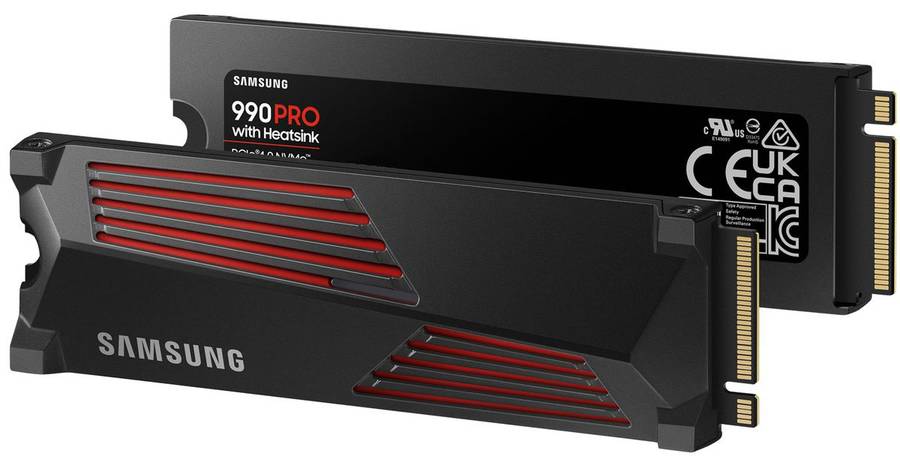

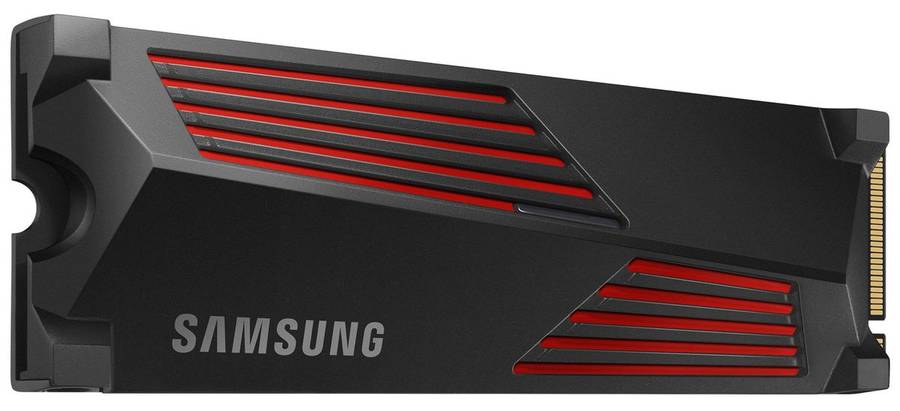

Samsung 990 PRO with Heatsink NVMe M.2 SSD 1TB

SPECIFICATIONS
Brand Samsung
Series 990 Pro SSD's
Model MZ-V9P1T0CW
Application Client PCs, Game Consoles
Capacity 1,000GB (1GB=1 Billion byte by IDEMA) x Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor M.2 (2280)
Interface PCIe Gen 4.0 x4, NVMe 2.0
Dimension (Pack: WxHxD) 80 x 24.3 x 8.2 mm (with heatsink)
Weight Max 28.0g Weight
Storage Memory Samsung V-NAND 3-bit MLC
Controller Samsung in-house Controller
Cache Memory Samsung 1GB Low Power DDR4 SDRAM
TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes
Sequential Read Up to 7,450 MB/s x Performance may vary based on system hardware & configuration
Sequential Write Up to 6,900 MB/s x Performance may vary based on system hardware & configuration
Random Read (4KB, QD32) Up to 1,200,000 IOPS x Performance may vary based on system hardware & configuration
Random Write (4KB, QD32) Up to 1,550,000 IOPS x Performance may vary based on system hardware & configuration
Random Read (4KB, QD1) Up to 22,000 IOPS x Performance may vary based on system hardware & configuration
Random Write (4KB, QD1) Up to 80,000 IOPS x Performance may vary based on system hardware & configuration
Average Power Consumption (system level) Average: 5.4 WMaximum: 7.8 W (Burst mode)x Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle) Max. 50 mW x Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage 3.3 V 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)
Management SW Magician Software for SSD management

Sony PlayStation 5 Ready

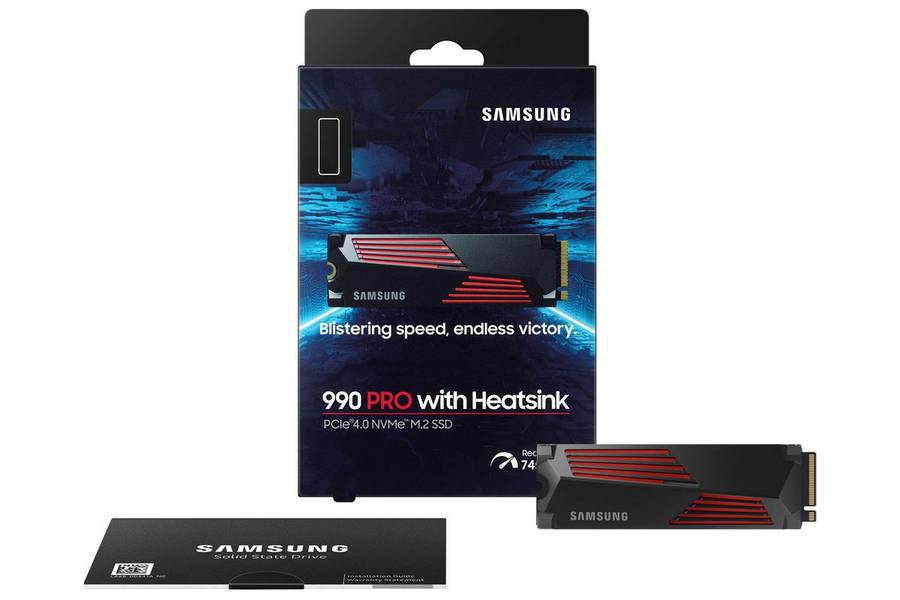

What's in the box
1 x Samsung 990 PRO with Heatsink NVMe M.2 SSD 1TB
